ST160-TCPNL (1985)
Toyota Corona Ff Coupe
Production
Aug 1985
-
Aug 1987
Engine
1SILU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )1SILU

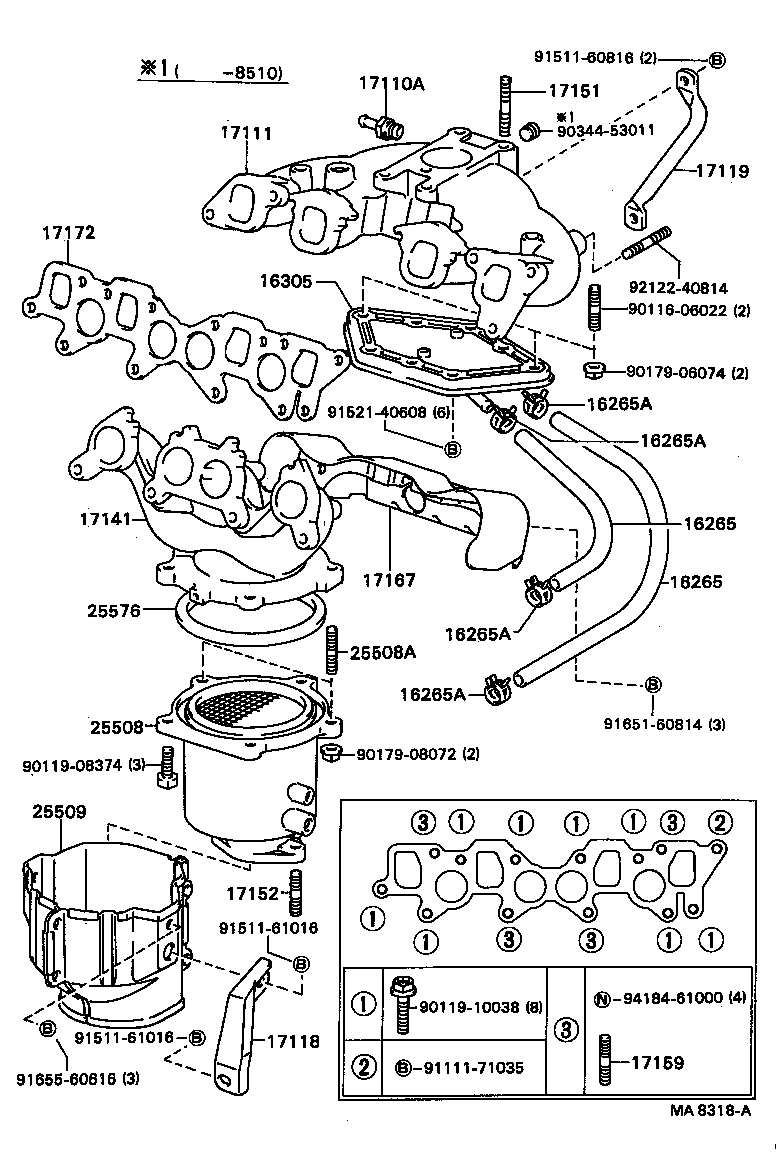

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16265 - HOSE, INTAKE MANIFOLD WATER | ||||
| 90445-16020 |
1SILU..ST160 |
2 | ||
| 16265 - HOSE, INTAKE MANIFOLD WATER | ||||
| 90445-16020 |
1SILU..ST160 |
2 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90467-15004 |
1SILU..ST160 |
4 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90467-15004 |
1SILU..ST160 |
4 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90467-15004 |
1SILU..ST160 |
4 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90467-15004 |
1SILU..ST160 |
4 | ||
| 16305 - OUTLET SUB-ASSY, WATER BY-PASS | ||||
| 16305-63011 |
1SILU..ST160 |
1 | ||
| 17110A - UNION, VACUUM HOSE | ||||
| 90404-53055 |
1SILU..ST160 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-63031 |
1SILU..ST160 |
1 | ||
| 17111-63030 |
1SILU..ST160 |
1 | ||
| 17111-63900 |
1SILU..ST160 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-63010 |
1SILU..ST160 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17118-63020 |
1SILU..ST160 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-63061 |
1SILU..ST160 |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 92122-40820 |
1SILU..ST160 L=32,S=12&12 |
2 | ||
| 92122-40832 |
1SILU..ST160 L=44,S=12&12 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
1SILU,3SGELU..ST16# |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10123 |
1SILU..ST160 |
4 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-63010 |
1SILU..ST160 |
1 | ||
| 17167-63011 |
1SILU..ST160 |
1 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-63030 |
1SILU..ST160 |
1 | ||
| 25508 - CONVERTER SUB-ASSY, MANIFOLD | ||||
| 25508-63020 |
1SILU..ST160 |
1 | ||
| 25508A - BOLT, STUD(FOR MANIFOLD CONVERTER) | ||||
| 90116-08171 |
1SILU..ST160 |
2 | ||
| 25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR | ||||
| 25509-63011 |
1SILU..ST160 |
1 | ||
| 25576 - GASKET, MANIFOLD CONVERTER | ||||
| 25576-15010 |
1SILU..ST160 |
1 | ||
| Common parts | ||||
| 90116-06022 | ||||
| 90119-08374 | ||||
| 90119-10038 | ||||
| 90179-06074 | ||||
| 90179-08072 | ||||
| 90344-53011 | ||||
| 91111-71035 | ||||
| 91511-60816 | ||||
| 91511-61016 | ||||
| 91521-40608 | ||||
| 91651-60814 | ||||
| 91655-60616 | ||||
| 92122-40814 | ||||
| 94184-61000 | ||||
(8708-8805)1SILU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-06022 | ||||
| 90119-08374 | ||||
| 90119-10038 | ||||
| 90179-06074 | ||||
| 90179-08072 | ||||
| 91111-71035 | ||||
| 91511-60816 | ||||
| 91511-61016 | ||||
| 91521-40608 | ||||
| 91651-60814 | ||||
| 91655-60616 | ||||
| 92122-40814 | ||||
| 94184-61000 | ||||
