ST160-TCPNL (1987)
Toyota Corona Ff Coupe
Production
Aug 1987
-
May 1988
Engine
1SILU
Transmission
GX
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

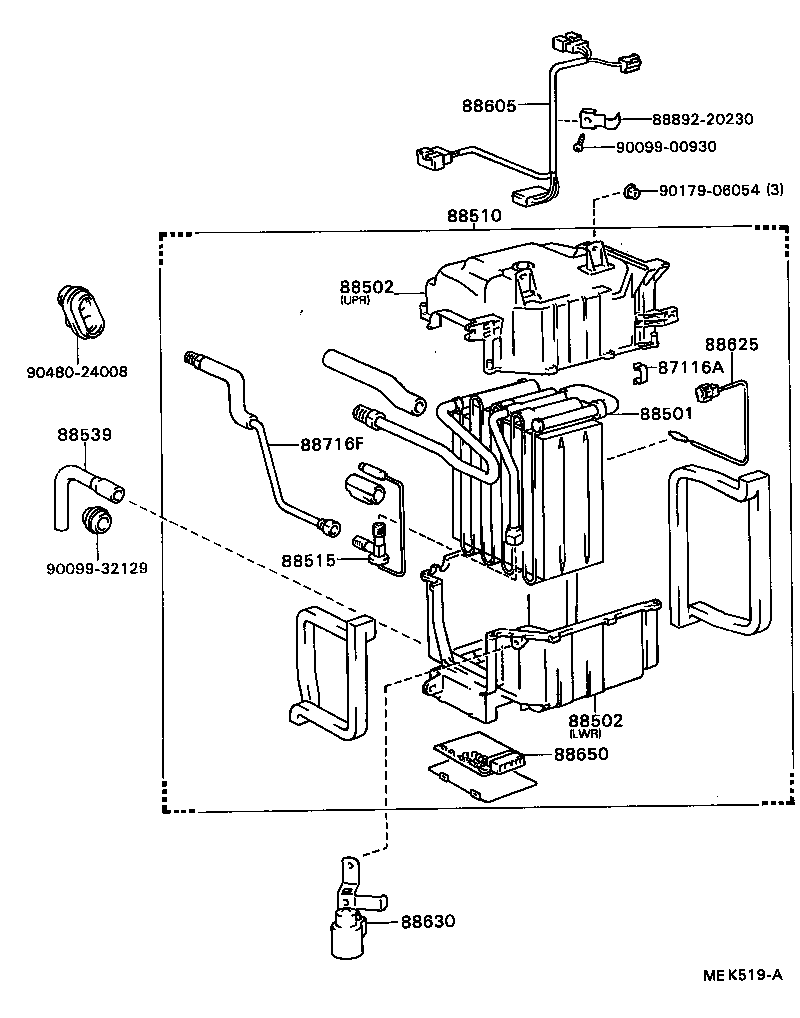

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20201 |
ST16#..EX,GX,VX |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20090 |
ST16#..EX,GX,VX 上側 |
1 | ||
| 88502-20100 |
ST16#..EX,GX,VX 下側 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20090 |
ST16#..EX,GX,VX 上側 |
1 | ||
| 88502-20100 |
ST16#..EX,GX,VX 下側 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-20560 |
ST160 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16040 |
ST16#..EX,GX,VX |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-22110 |
ST16#..EX,GX,VX |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-20670 |
ST160,162..GT,GX ｱﾘ(ﾏﾆﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88605-20670 |
ST16#..GT,GX ｱﾘ(ﾏﾆﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88605-20840 |
ST160,162..GT,GX ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12070 |
ST16#..EX,GX,VX |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20370 |
ST160 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-2B040 |
ST16#..EX,GX,VX |
1 | ||
| Common parts | ||||
| 88892-20230 | ||||
| 90099-00930 | ||||
| 90099-32129 | ||||
| 90179-06054 | ||||
| 90480-24008 | ||||
