ST160-TCPNL (1987)

Toyota Corona Ff Coupe

Production Aug 1987 - May 1988
Engine 1SILU
Transmission GX
Displacement 2500cc
Power 168 HP (125 kW)

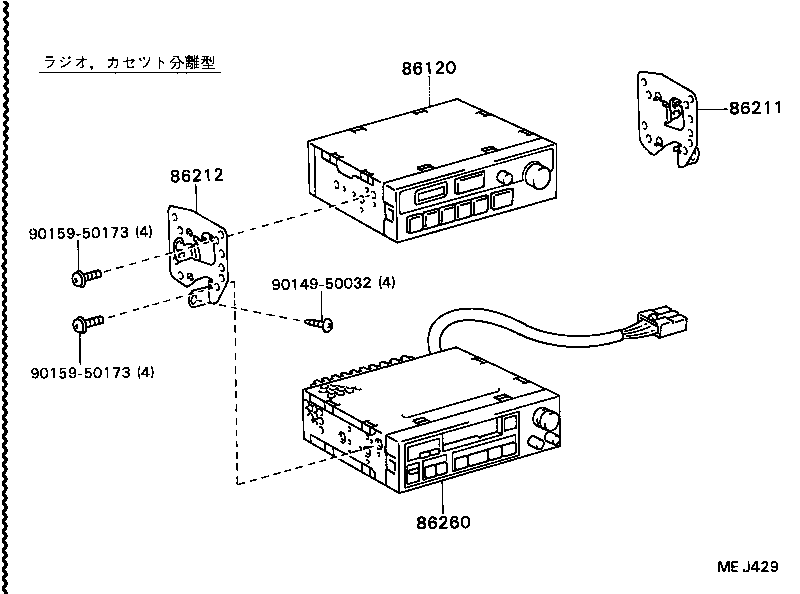

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 86120 86211 86212 86260 9014950032 9015950173 9015950173
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-20650

ST16#..GT,GX

MATSUSHITA,AM/FM ﾏﾙﾁ ETR 1-DIN,ｱﾘ(2 ｽﾋﾟ-ｶ)

 1
86211 - BRACKET, RADIO, NO.1
86211-20150

ST16#

 1
86212 - BRACKET, RADIO, NO.2
86212-20190

ST16#

 1
86260 - TAPE PLAYER ASSY
86260-19165

ST16#..GT,GX

ｱﾝﾌﾟ ﾅｲｿﾞｳ,ｲｺﾗｲｻﾞ ﾂｷ, ｱﾘ(4 ｽﾋﾟ-ｶ)

 1
86260-19145

ST16#..GT,GX

ｱﾝﾌﾟ ﾅｲｿﾞｳ,ｱﾘ(2 ｽﾋﾟ-ｶ)

 1
86260-19155

ST16#..GT,GX

ｱﾝﾌﾟ ﾅｲｿﾞｳ,ｱﾘ(4 ｽﾋﾟ-ｶ)

 1
Common parts
90149-50032
90159-50173

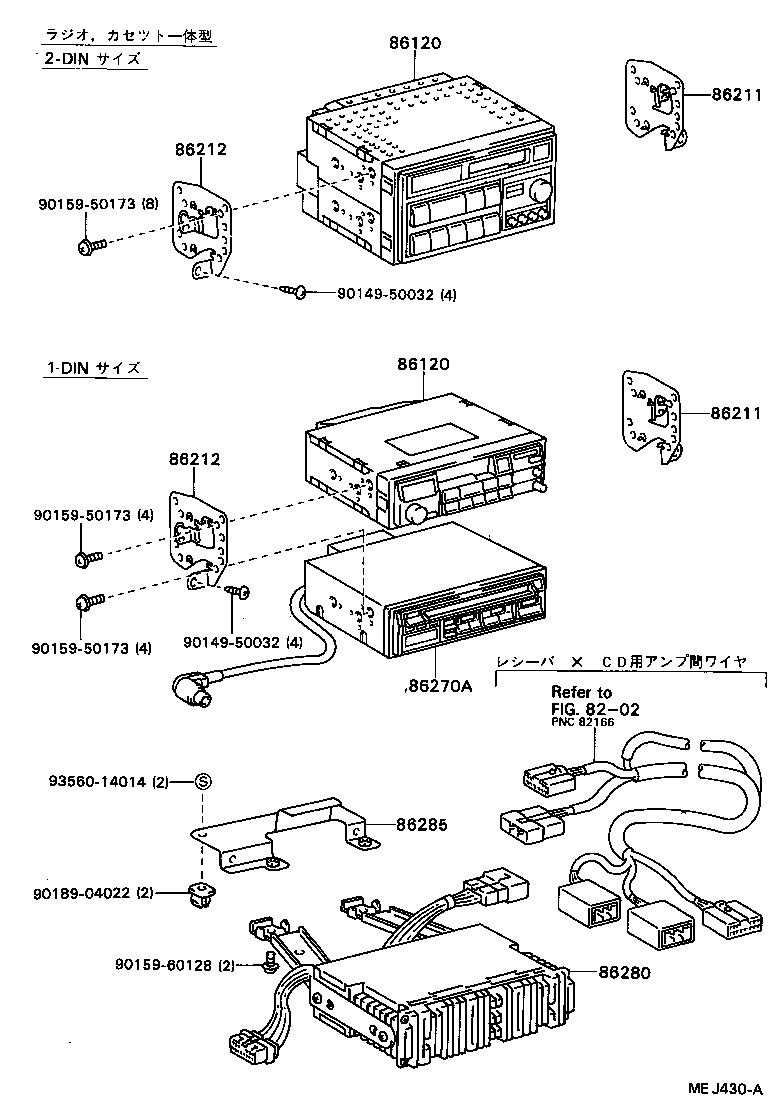

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 8202 86120 86120 86211 86211 86212 86212 86270A 86280 86285 9014950032 9014950032 9015950173 9015950173 9015950173 9015960128 9018904022 9356014014
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-20650

ST16#..GT,GX

MATSUSHITA,AM/FM ﾏﾙﾁ ETR 1-DIN,ｱﾘ(2 ｽﾋﾟ-ｶ)

 1
86120 - RECEIVER ASSY, RADIO
86120-20650

ST16#..GT,GX

MATSUSHITA,AM/FM ﾏﾙﾁ ETR 1-DIN,ｱﾘ(2 ｽﾋﾟ-ｶ)

 1
86211 - BRACKET, RADIO, NO.1
86211-20150

ST16#

 1
86211 - BRACKET, RADIO, NO.1
86211-20150

ST16#

 1
86212 - BRACKET, RADIO, NO.2
86212-20190

ST16#

 1
86212 - BRACKET, RADIO, NO.2
86212-20190

ST16#

 1
Common parts
90149-50032
90159-50173
90159-60128
90189-04022
93560-14014
Linked diagrams
8202

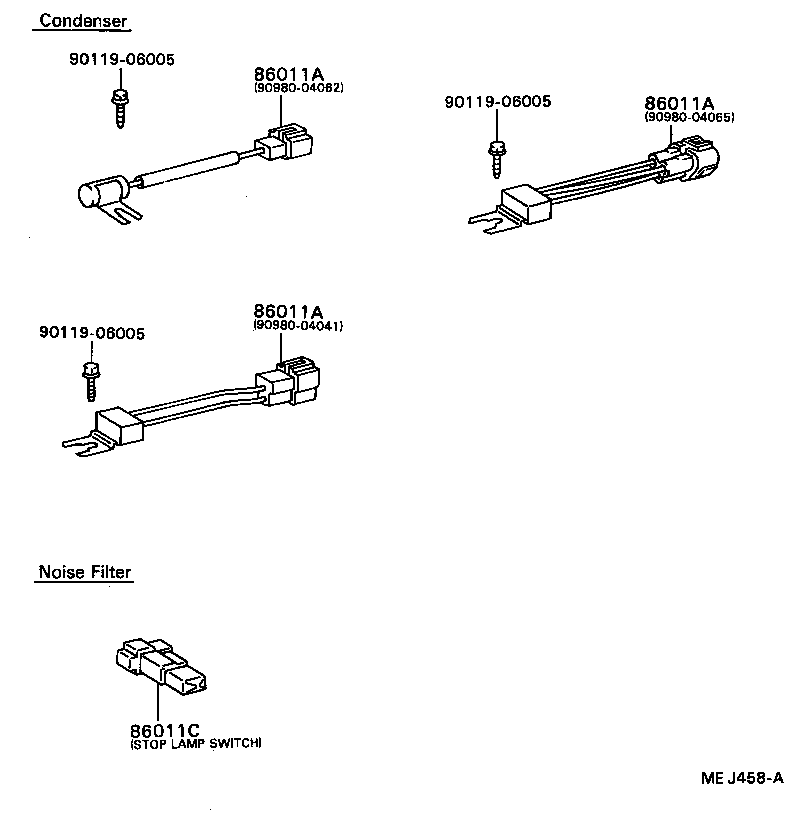

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011A 86011C 9011906005 9011906005 9011906005 9098004041 9098004062 9098004065
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04062

ST16#

DEFOGGER

 1
86011A - CONDENSER, RADIO SETTING
90980-04062

ST16#

DEFOGGER

 1
86011A - CONDENSER, RADIO SETTING
90980-04062

ST16#

DEFOGGER

 1
86011C - FILTER, NOISE
90980-05073

ST16#

 1
Common parts
90119-06005
90980-04041
90980-04062
90980-04065
