ST160-TCPEL (1985)

Toyota Corona Ff Coupe

Production Aug 1985 - Aug 1987
Engine 1SILU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

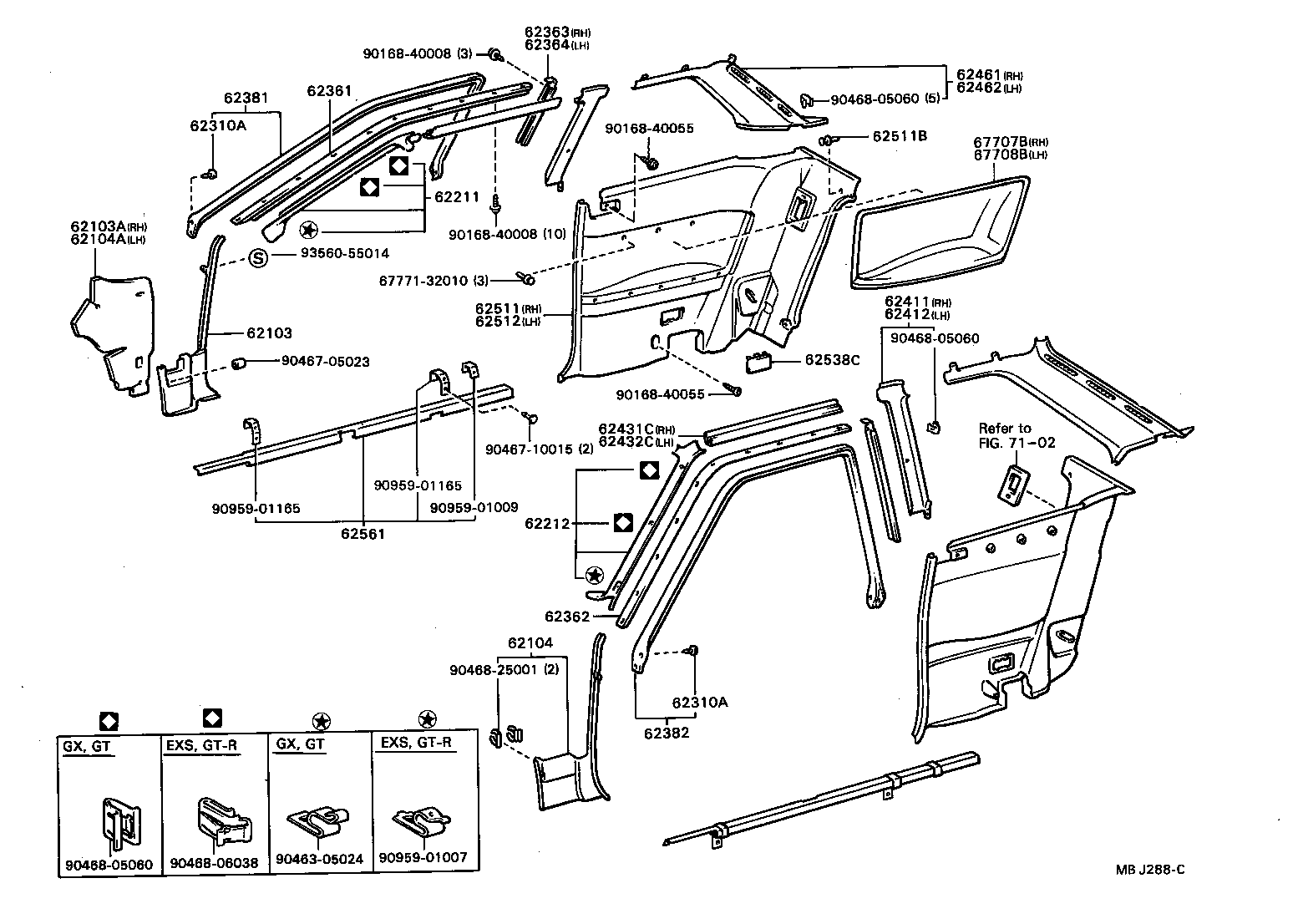

Click highlighted areas on diagram

diagram 62103 62103A 62104 62104A 62211 62212 62310A 62310A 62361 62362 62363 62364 62381 62382 62411 62412 62431C 62432C 62461 62462 62511 62511B 62512 62538C 62561 67707B 67708B 6777132010 7102 9016840008 9016840008 9016840055 9016840055 9046305024 9046705023 9046710015 9046805060 9046805060 9046805060 9046806038 9046825001 9095901007 9095901009 9095901165 9095901165 9356055014
Part # Description Qty Price
62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH
62101-2015004

AT160,ST16#

BLUE,DEEP BLUE,TRIM8#

 1
62101-2015003

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
62103A - INSULATOR SUB-ASSY, COWL SIDE, RH
62105-20080

AT160,ST16#

 1
62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH
62102-2011003

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
62102-2011004

AT160,ST16#

BLUE,DEEP BLUE,TRIM8#

 1
62104A - INSULATOR SUB-ASSY, COWL SIDE, LH
62106-20080

AT160,ST16#

 1
62211 - GARNISH, FRONT PILLAR, RH
62210-2002003

ST160..EXS

GRAY,SHADOW GRAY,TRIM1#

 1
62210-2002004

ST160..EXS

BLUE,DEEP BLUE,TRIM8#

 1
62212 - GARNISH, FRONT PILLAR, LH
62220-2002003

ST160..EXS

GRAY,SHADOW GRAY,TRIM1#

 1
62220-2002004

ST160..EXS

BLUE,DEEP BLUE,TRIM8#

 1
62310A - CLIP, ROOF SIDE RAIL WEATHERSTRIP
67869-30020

AT160,ST16#

 8
62310A - CLIP, ROOF SIDE RAIL WEATHERSTRIP
67869-30020

AT160,ST16#

 8
62361 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH
62361-20030

AT160,ST16#

 1
62362 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH
62362-20030

AT160,ST16#

 1
62363 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR RH
62371-20040

AT160,ST16#

 1
62364 - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR LH
62372-20030

AT160,ST16#

 1
62381 - WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH
62381-20040

AT160,ST16#

 1
62382 - WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH
62382-20040

AT160,ST16#

 1
62411 - GARNISH, CENTER PILLAR, RH
62411-2023003

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
62411-2023004

AT160,ST16#

BLUE,DEEP BLUE,TRIM8#

 1
62412 - GARNISH, CENTER PILLAR, LH
62412-2023004

AT160,ST16#

BLUE,DEEP BLUE,TRIM8#

 1
62412-2023003

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
62431C - GARNISH, ROOF SIDE RAIL, FRONT RH
62431-2003003

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
62431-2003004

AT160,ST16#

BLUE,DEEP BLUE,TRIM8#

 1
62432C - GARNISH, ROOF SIDE RAIL, FRONT LH
62431-2003003

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
62431-2003004

AT160,ST16#

BLUE,DEEP BLUE,TRIM8#

 1
62461 - GARNISH, ROOF SIDE TRIM, RH
62471-2021003

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
62471-2021004

AT160,ST16#

BLUE,DEEP BLUE,TRIM8#

 1
62462 - GARNISH, ROOF SIDE TRIM, LH
62472-2023003

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
62472-2023004

AT160,ST16#

BLUE,DEEP BLUE,TRIM8#

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62511-2010003

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
62511-2010004

AT160,ST16#

BLUE,DEEP BLUE,TRIM8#

 1
62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD)
90467-0601633

AT160,ST16#

GRAY,GRAY,TRIM1#

 2
90467-0601620

AT160,ST16#

BLUE,DEEP BLUE,TRIM8#

 2
62512 - BOARD, QUARTER INSIDE TRIM, LH
62512-2010003

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
62512-2010004

AT160,ST16#

BLUE,DEEP BLUE,TRIM8#

 1
62538C - COVER, QUARTER TRIM, HOLE
62538-1401003

AT160,ST16#

GRAY,SHADOW GRAY,TRIM1#

 2
62538-1401014

AT160,ST16#

BLUE,DEEP BLUE,TRIM8#

 2
62561 - PROTECTOR, ROCKER PANEL, INNER FRONT
62562-20040

AT160,ST16#

LH

 1
62561-20060

AT160,ST16#

RH

 1
67707B - ORNAMENT SUB-ASSY, QUARTER TRIM, RH
67707-2009003

ST160..EXS

GRAY,SHADOW GRAY,TRIM1#

 1
67707-2009004

ST160..EXS

BLUE,DEEP BLUE,TRIM8#

 1
67708B - ORNAMENT SUB-ASSY, QUARTER TRIM, LH
67708-2009004

ST160..EXS

BLUE,DEEP BLUE,TRIM8#

 1
67708-2009003

ST160..EXS

GRAY,SHADOW GRAY,TRIM1#

 1
Common parts
67771-32010
90168-40008
90168-40055
90463-05024
90467-05023
90467-10015
90468-05060
90468-06038
90468-25001
90959-01007
90959-01009
90959-01165
93560-55014
Linked diagrams
7102
