ST160-TCPEL (1987)

Toyota Corona Ff Coupe

Production Aug 1987 - May 1988
Engine 1SILU
Transmission EX
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )ST160,163

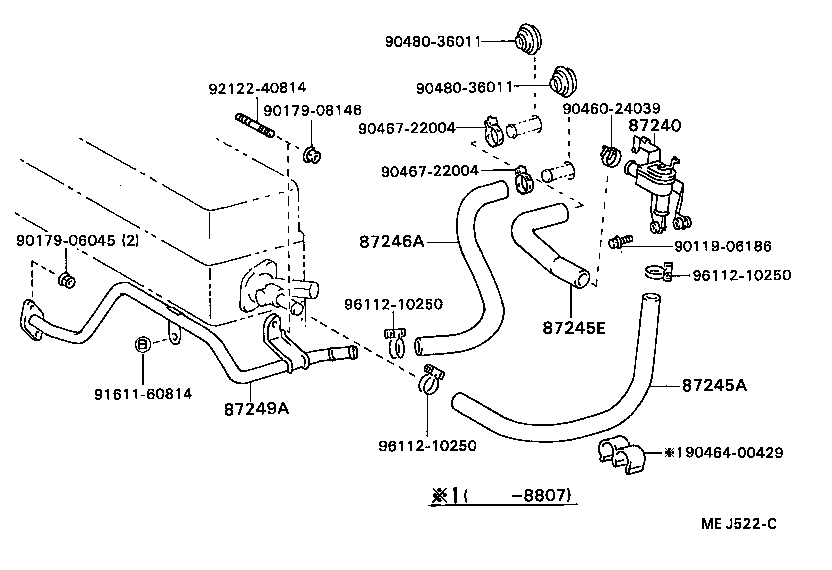

Click highlighted areas on diagram

diagram 87240 87245A 87245E 87246A 87249A 9011906186 9017906045 9017908146 9046024039 9046400429 9046722004 9046722004 9048036011 9048036011 9161160814 9212240814 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-20290

ST16#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-20830

ST160

 1
87245E - HOSE, HEATER WATER, INLET E
87245-20810

ST16#

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30500

ST160

長さ=500

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-20180

ST160

 1
Common parts
90119-06186
90179-06045
90179-08146
90460-24039
90464-00429
90467-22004
90480-36011
91611-60814
92122-40814
96112-10250
