ST160-TCPEL (1987)
Toyota Corona Ff Coupe
Production
Aug 1987
-
May 1988
Engine
1SILU
Transmission
EX
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

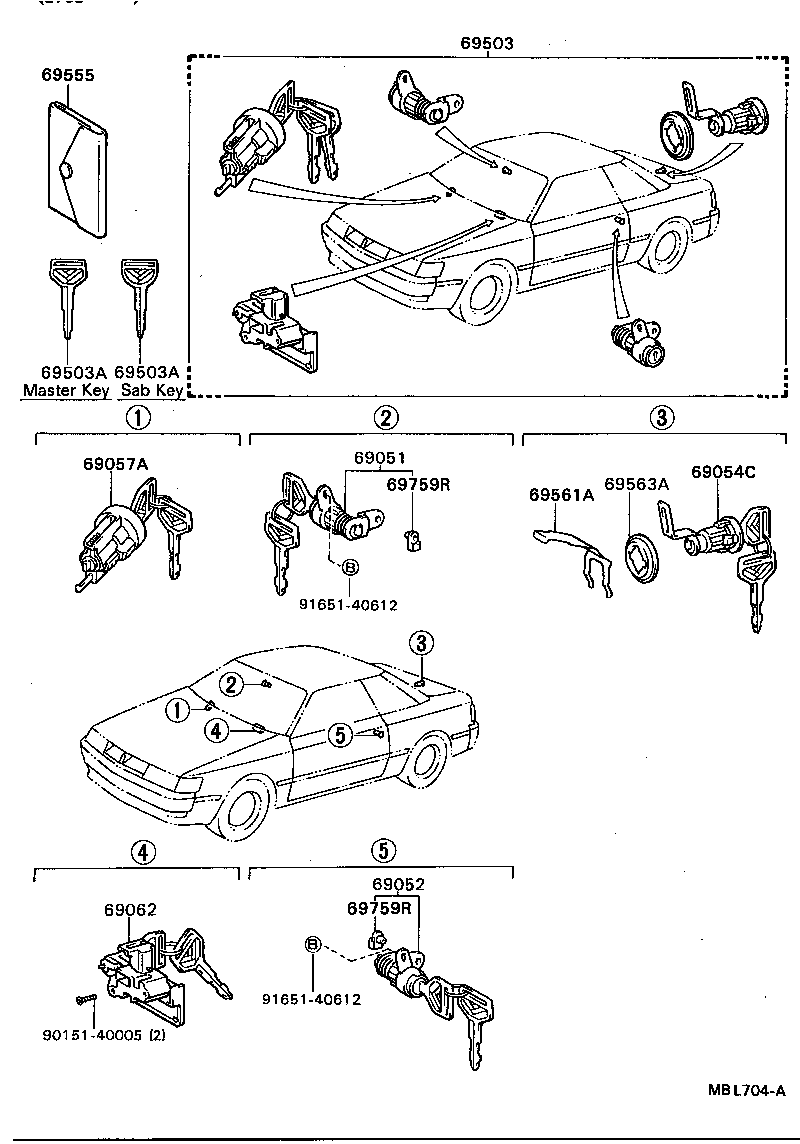

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-20160 |
ST16# |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-20160 |
ST16# |
1 | ||
| 69054C - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-20160 |
ST16# |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-20110 |
ST16#..EX,GT,GX |
1 | ||
| 69057-20120 |
ST160..EX ｱﾘ(ﾃﾞﾝｼﾞ ﾛﾂｸ) |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-20060 |
ST16# |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-20420 |
ST16#..EX,GT,GX |
1 | ||
| 69005-20400 |
ST160..EX ｱﾘ(ﾃﾞﾝｼﾞ ﾛﾂｸ) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00106 |
ST16# ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00094 |
ST16# ｻﾌﾞｷｰ |
1 | ||
| 90999-00085 |
ST16# ﾏｽﾀｰｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00106 |
ST16# ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00094 |
ST16# ｻﾌﾞｷｰ |
1 | ||
| 90999-00085 |
ST16# ﾏｽﾀｰｷｰ |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-20010 |
ST16# |
1 | ||
| 69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER | ||||
| 69561-20070 |
ST16# |
1 | ||
| 69563A - PAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER | ||||
| 69563-20010 |
ST16# |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-30040 |
ST16# 右側 |
1 | ||
| 69759-30050 |
ST16# 左側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-30040 |
ST16# 右側 |
1 | ||
| 69759-30050 |
ST16# 左側 |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 91651-40612 | ||||
