ST160-TCMNL (1985)

Toyota Corona Ff Coupe

Production Aug 1985 - Aug 1987
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

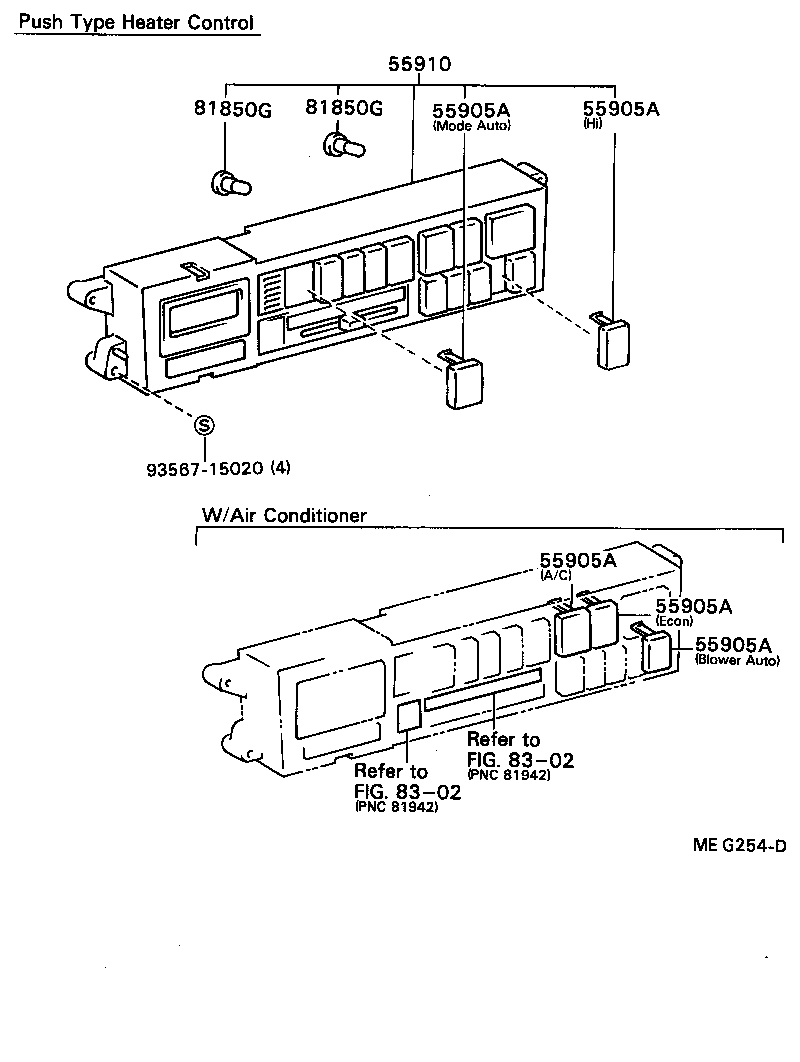

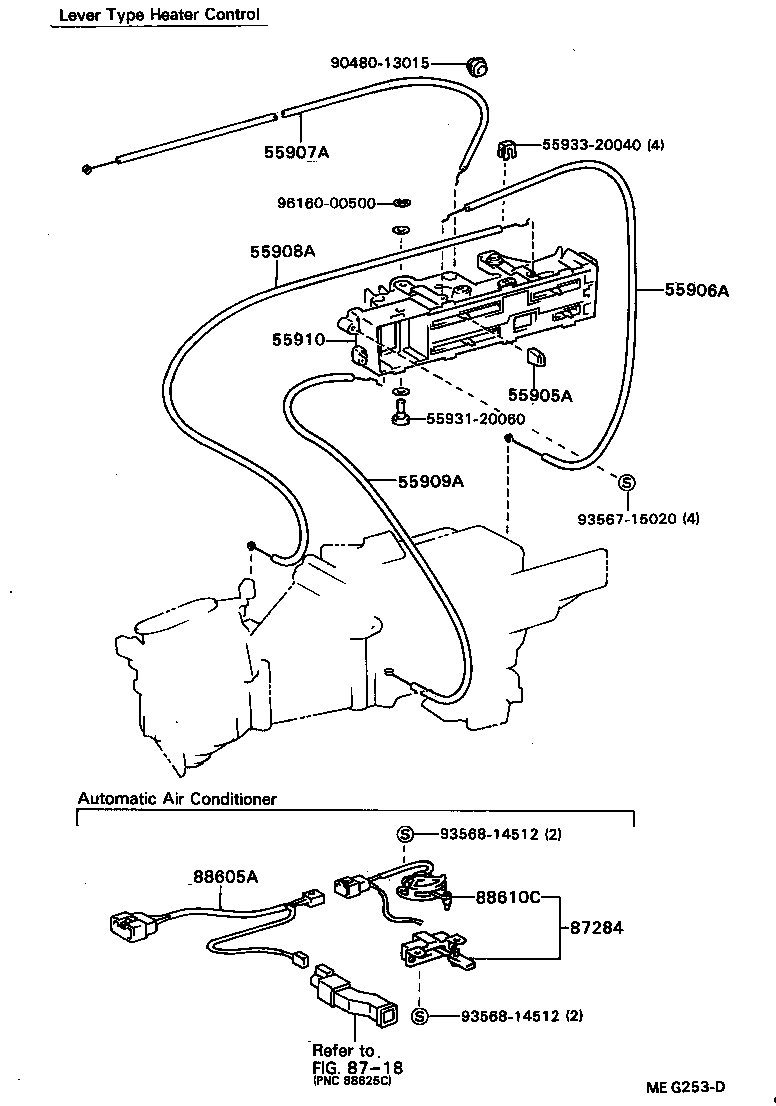

ILLUST NO. 1 OF 3(8508- )

Click highlighted areas on diagram

diagram 55905A 55906A 55907A 55908A 55909A 55910 5593120060 5593320040 8718 87284 88605A 88610C 9048013015 9356715020 9356814512 9356814512 9616000500
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-12070

AT160,ST16#..GT,GX

 4
55905-12070

AT160,ST16#

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-20210

AT160,ST16#..GT,GX

 1
55906-20210

AT160,ST16#

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20180

AT160,ST16#

 1
55907-20180

AT160,ST16#..GT,GX

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20100

AT160,ST16#

 1
55908-20100

AT160,ST16#..GT,GX

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-20050

AT160,ST16#

 1
55909-20050

AT160,ST16#..GT,GX

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20370

AT160,ST16#

 1
55910-20370

AT160,ST16#..GT,GX

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-20070

AT160,ST16#..GT,GX

W/*AAC

 1
88032-20070

AT160,ST16#

W/*AAC

 1
88605A - HARNESS SUB-ASSY, COOLER WIRING
88605-20730

AT160,ST16#

W/*AAC,*LHC

 1
88610C - SWITCH ASSY, COOLER CONTROL
88610-20160

AT160,ST16#

W/*AAC,*LHC

 1
Common parts
55931-20060
55933-20040
90480-13015
93567-15020
93568-14512
96160-00500
Linked diagrams
8718

ILLUST NO. 1 OF 3(8508- )

Click highlighted areas on diagram

diagram 55905A 55905A 55905A 55905A 55905A 55910 81850G 81850G 8302 8302 9356715020
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-12070

AT160,ST16#..GT,GX

 4
55905-12070

AT160,ST16#

 4
55905A - KNOB, HEATER CONTROL
55905-12070

AT160,ST16#..GT,GX

 4
55905-12070

AT160,ST16#

 4
55905A - KNOB, HEATER CONTROL
55905-12070

AT160,ST16#..GT,GX

 4
55905-12070

AT160,ST16#

 4
55905A - KNOB, HEATER CONTROL
55905-12070

AT160,ST16#..GT,GX

 4
55905-12070

AT160,ST16#

 4
55905A - KNOB, HEATER CONTROL
55905-12070

AT160,ST16#..GT,GX

 4
55905-12070

AT160,ST16#

 4
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-20370

AT160,ST16#

 1
55910-20370

AT160,ST16#..GT,GX

 1
Common parts
93567-15020
Linked diagrams
8302

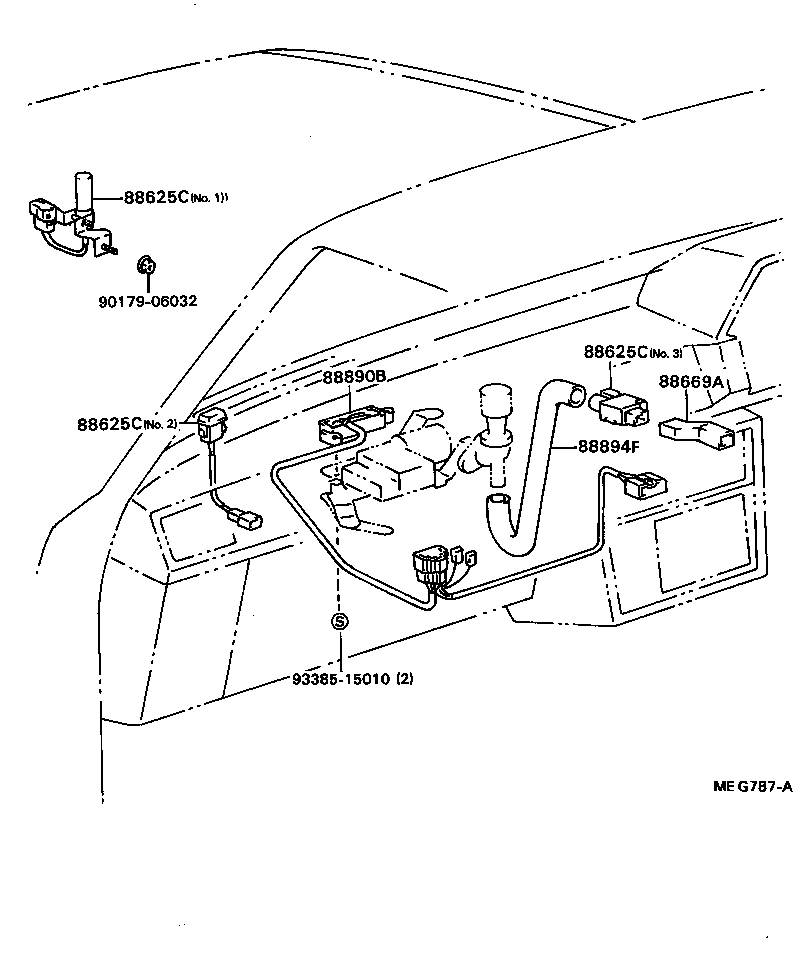

ILLUST NO. 3 OF 3(8508- )

Click highlighted areas on diagram

diagram 88625C 88625C 88625C 88669A 88890B 88894F 9017906032 9338515010
Part # Description Qty Price
88625C - THERMISTOR, COOLER
88625-20160

AT160,ST16#

NO.1

 1
88625-20140

AT160,ST16#

NO.2

 1
88625-20170

AT160,ST16#

NO.3

 1
88625C - THERMISTOR, COOLER
88625-20160

AT160,ST16#

NO.1

 1
88625-20140

AT160,ST16#

NO.2

 1
88625-20170

AT160,ST16#

NO.3

 1
88625C - THERMISTOR, COOLER
88625-20160

AT160,ST16#

NO.1

 1
88625-20140

AT160,ST16#

NO.2

 1
88625-20170

AT160,ST16#

NO.3

 1
88669A - HOSE (FOR COOLER THERMISTOR)
88669-20040

AT160,ST16#

 1
88894F - HOSE, AIR
88669-20030

AT160,ST16#

 1
Common parts
90179-06032
93385-15010

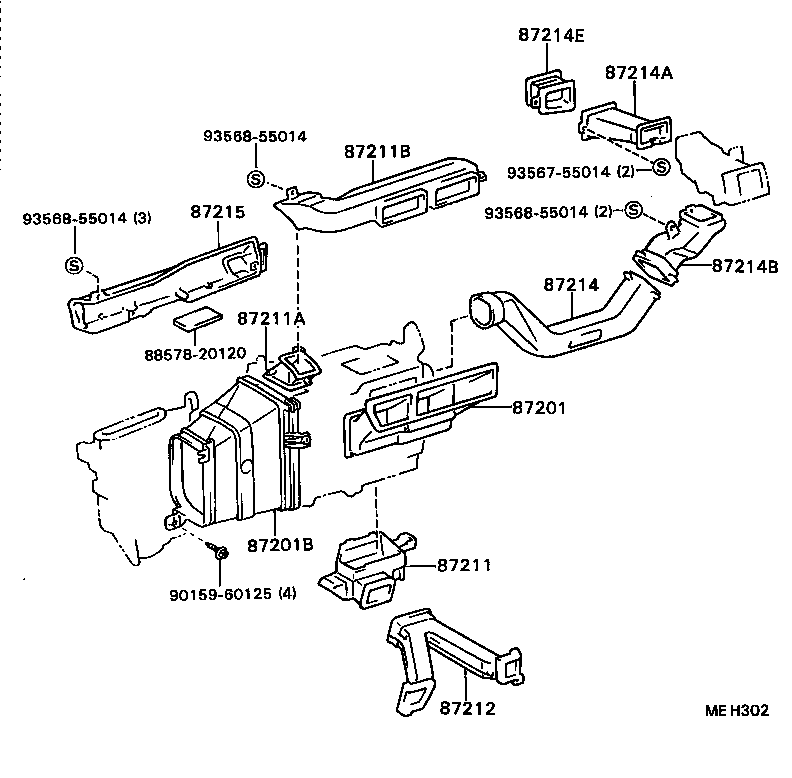

ILLUST NO. 2 OF 3(8508- )

Click highlighted areas on diagram

diagram 87201 87201B 87211 87211A 87211B 87212 87214 87214A 87214B 87214E 87215 8857820120 9015960125 9356755014 9356855014 9356855014 9356855014
Part # Description Qty Price
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-20150

AT160,ST16#

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87220-20010

AT160,ST16#

 1
87211 - DUCT, AIR, NO.1
87211-20090

AT160,ST16#

 1
87211A - DUCT, AIR, NO.2
87201-20180

AT160,ST16#

 1
87211B - DUCT, AIR, NO.3
55087-20060

AT160,ST16#

 1
87212 - DUCT, AIR, REAR NO.1
87202-20020

AT160,ST16#

 1
87214 - DUCT, AIR, SIDE NO.1 RH
55085-20050

AT160,ST16#

W/COOLER

 1
55085-20060

AT160,ST16#

 1
87214A - DUCT, AIR, SIDE NO.2 RH
55841-20050

AT160,ST16#

 1
87214B - DUCT, AIR, SIDE NO.3 RH
55084-20110

AT160,ST16#

 1
87214E - BOOT, SIDE VENTILATOR DUCT, RH
55863-20040

AT160,ST16#

 1
87215 - DUCT, AIR, SIDE NO.1 LH
55086-20050

AT160,ST16#

 1
Common parts
88578-20120
90159-60125
93567-55014
93568-55014
