ST160-TCMNL (1987)
Toyota Corona Ff Coupe
Production
Aug 1987
-
May 1988
Engine
1SILU
Transmission
GX
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

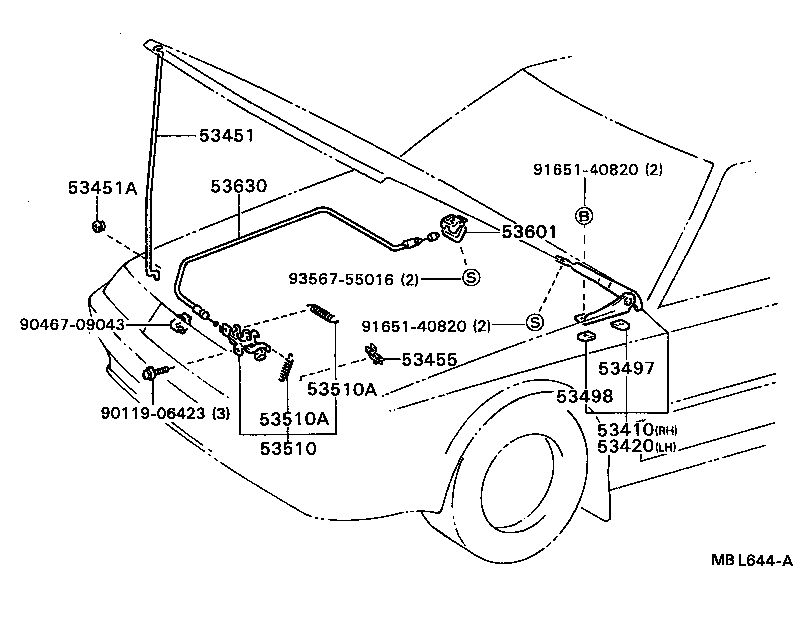

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-20080 |
ST16# |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-20070 |
ST16# |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-20040 |
ST16# |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15011 |
ST16# |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-20010 |
ST16# |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-32030 |
ST16# |
1 | ||
| 53497-32030 |
ST16# |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-12010 |
ST16# |
2 | ||
| 53498-12010 |
ST16# |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-20170 |
ST16# |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20008 |
ST16# 線径=2.0,ｺｲﾙ巻数=17,WD=2.0,CW=17 |
1 | ||
| 90506-09029 |
ST16# 線径=0.9,WD=0.9,CW=26.5 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20008 |
ST16# 線径=2.0,ｺｲﾙ巻数=17,WD=2.0,CW=17 |
1 | ||
| 90506-09029 |
ST16# 線径=0.9,WD=0.9,CW=26.5 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-2006024 |
ST16# DEEP BLUE,TRIM8# |
1 | ||
| 53601-1203011 |
ST16# NEW BLACK,TRIM2# |
1 | ||
| 53601-2006001 |
ST16# BLACK,TRIM2# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-20150 |
ST16# |
1 | ||
| Common parts | ||||
| 90119-06423 | ||||
| 90467-09043 | ||||
| 91651-40820 | ||||
| 93567-55016 | ||||
