ST160-TCMNL (1987)

Toyota Corona Ff Coupe

Production Aug 1987 - May 1988
Engine 1SILU
Transmission GX
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

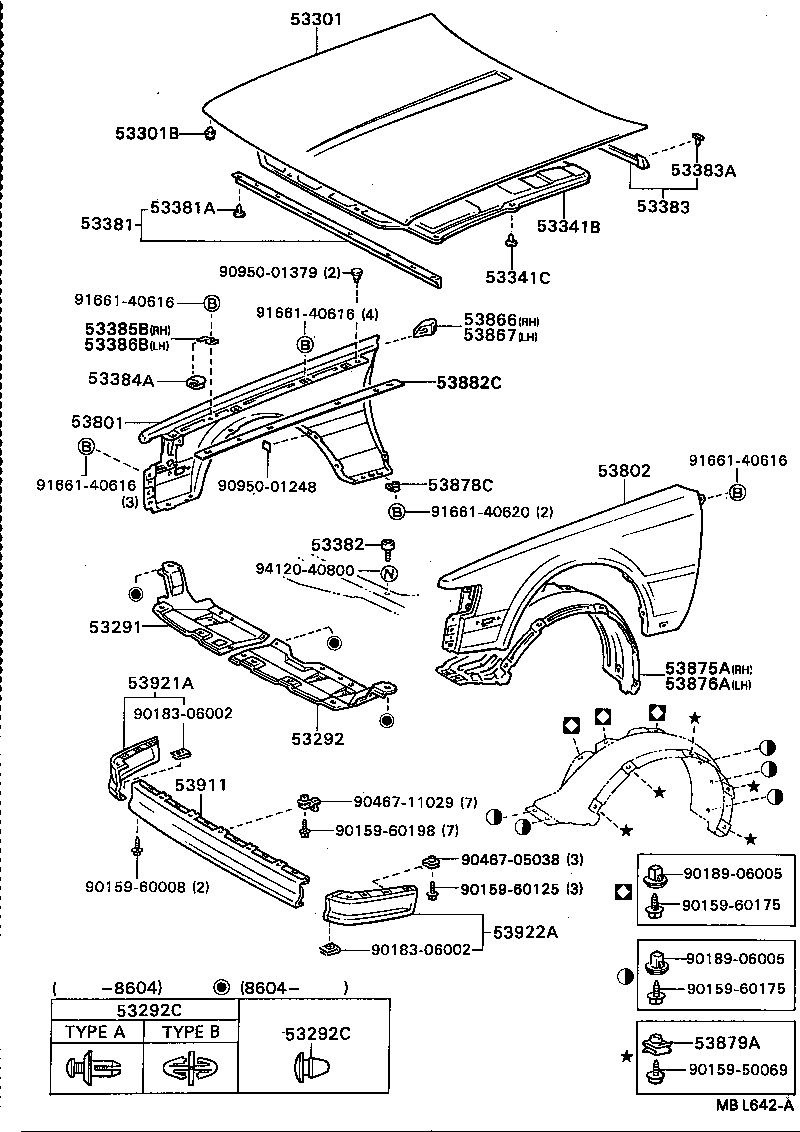

Click highlighted areas on diagram

diagram 53291 53292 53292C 53292C 53301 53301B 53341B 53341C 53381 53381A 53382 53383 53383A 53384A 53385B 53386B 53801 53802 53866 53867 53875A 53876A 53878C 53879A 53882C 53911 53921A 53922A 9015950069 9015960008 9015960125 9015960175 9015960175 9015960198 9018306002 9018306002 9018906005 9018906005 9046705038 9046711029 9095001248 9095001379 9166140616 9166140616 9166140616 9166140616 9166140620 9412040800
Part # Description Qty Price
53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH
53291-20010

ST16#

 1
53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH
53292-20010

ST16#

 1
53292C - CLIP, RADIATOR SUPPORT TO FRAME
90467-0906401

ST16#

BLACK,040 ,168 ,23E ,3H4 ,8E4 ,920

 3
53292C - CLIP, RADIATOR SUPPORT TO FRAME
90467-0906401

ST16#

BLACK,040 ,168 ,23E ,3H4 ,8E4 ,920

 3
53301 - HOOD SUB-ASSY
53301-20220

ST16#

 1
53301B - CUSHION, HOOD BUMPER
90541-09041

ST16#

 2
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-20080

ST16#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

ST16#

 8
53382 - BUMPER, HOOD, FRONT
53382-12040

ST16#

 2
53383 - SEAL, HOOD TO COWL TOP
53383-20080

ST16#

 1
53383A - CLIP(FOR HOOD TO COWL TOP SEAL)
90467-08030

ST16#

 10
53384A - BUMPER, FENDER TO HOOD
53384-14010

ST16#

 2
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53385-14010

ST16#

 1
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53386-14010

ST16#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-20840

ST16#

 1
53801-20870

ST16#

ｱﾘ(ﾏﾆﾕｱﾙ ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-20870

ST16#

ｱﾘ(ﾏﾆﾕｱﾙ ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802-20840

ST16#

 1
53866 - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-20010

ST16#

 1
53867 - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-20030

ST16#

 1
53875A - LINER, FRONT FENDER, RH
53875-20110

ST16#

 1
53876A - LINER, FRONT FENDER, LH
53876-20120

ST16#

 1
53878C - SPACER, FRONT FENDER
53878-20030

ST16#

 2
53879A - RETAINER, FRONT FENDER LINER
53879-14010

ST16#

 10
53882C - SEAL, FRONT FENDER MAIN
53882-20060

ST16#

 2
53911 - PANEL, FRONT VALANCE
53911-20110

ST16#

 1
53921A - PANEL, FRONT VALANCE, RH
53921-20020

ST16#

 1
53922A - PANEL, FRONT VALANCE, LH
53922-20010

ST16#

 1
Common parts
90159-50069
90159-60008
90159-60125
90159-60175
90159-60198
90183-06002
90189-06005
90467-05038
90467-11029
90950-01248
90950-01379
91661-40616
91661-40620
94120-40800
