ST160-TCMEL (1987)

Toyota Corona Ff Coupe

Production Aug 1987 - May 1988
Engine 1SILU
Transmission EX
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

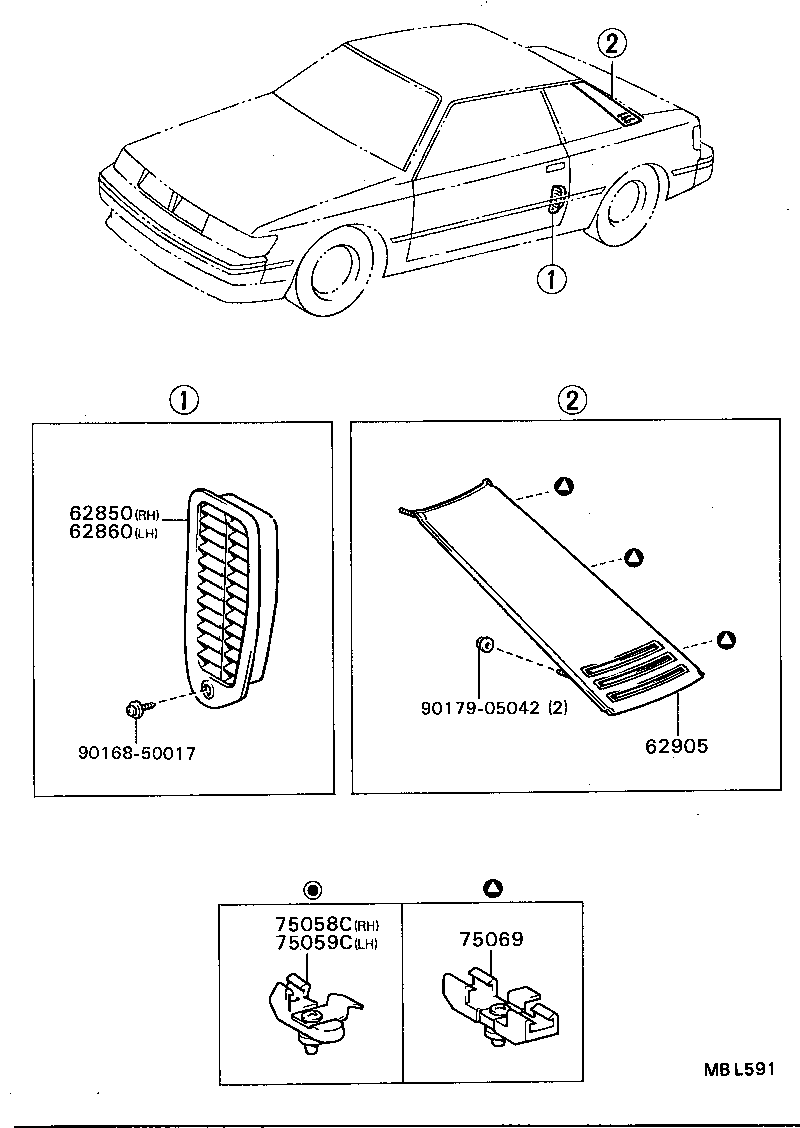

diagram 62850 62860 62905 75058C 75059C 75069 9016850017 9017905042
Part # Description Qty Price
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-20030

ST16#

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62860-20040

ST16#

 1
62905 - LOUVER, QUARTER VENTILATION
62905-20090

ST16#

右側

 1
62906-20090

ST16#

左側

 1
75058C - CLIP SUB-ASSY, QUARTER VENT, NO.3 RH
75058-20040

ST16#

 1
75059C - CLIP SUB-ASSY, QUARTER VENT, NO.3 LH
75059-20040

ST16#

 1
75069 - CLIP SUB-ASSY, QUARTER VENT, NO.4
75069-20010

ST16#

 4
Common parts
90168-50017
90179-05042
