ST160-TCMEL (1985)

Toyota Corona Ff Coupe

Production Aug 1985 - Aug 1987
Engine 1SILU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

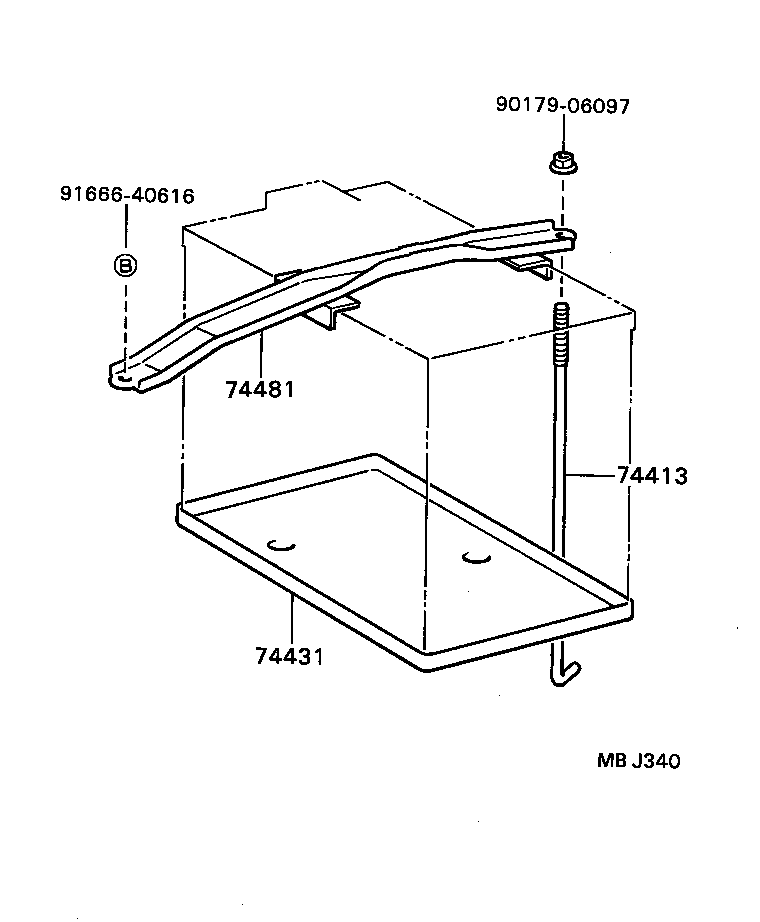

Click highlighted areas on diagram

diagram 74413 74431 74481 9017906097 9166640616
Part # Description Qty Price
74413 - BOLT, BATTERY CLAMP
74451-14010

AT160,ST16#

 1
74431 - TRAY, BATTERY
74431-14050

AT160,ST160

NS40ZAL-MFB,201X133

 1
74431-14020

AT160,ST16#

NS60L-MFB

 1
74431-14010

AT160,ST160

NS40ZAL-MFB,188X127

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-20190

AT160,ST16#

 1
Common parts
90179-06097
91666-40616
