ST160-TCMEL (1985)
Toyota Corona Ff Coupe
Production
Aug 1985
-
Aug 1987
Engine
1SILU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )1SILU

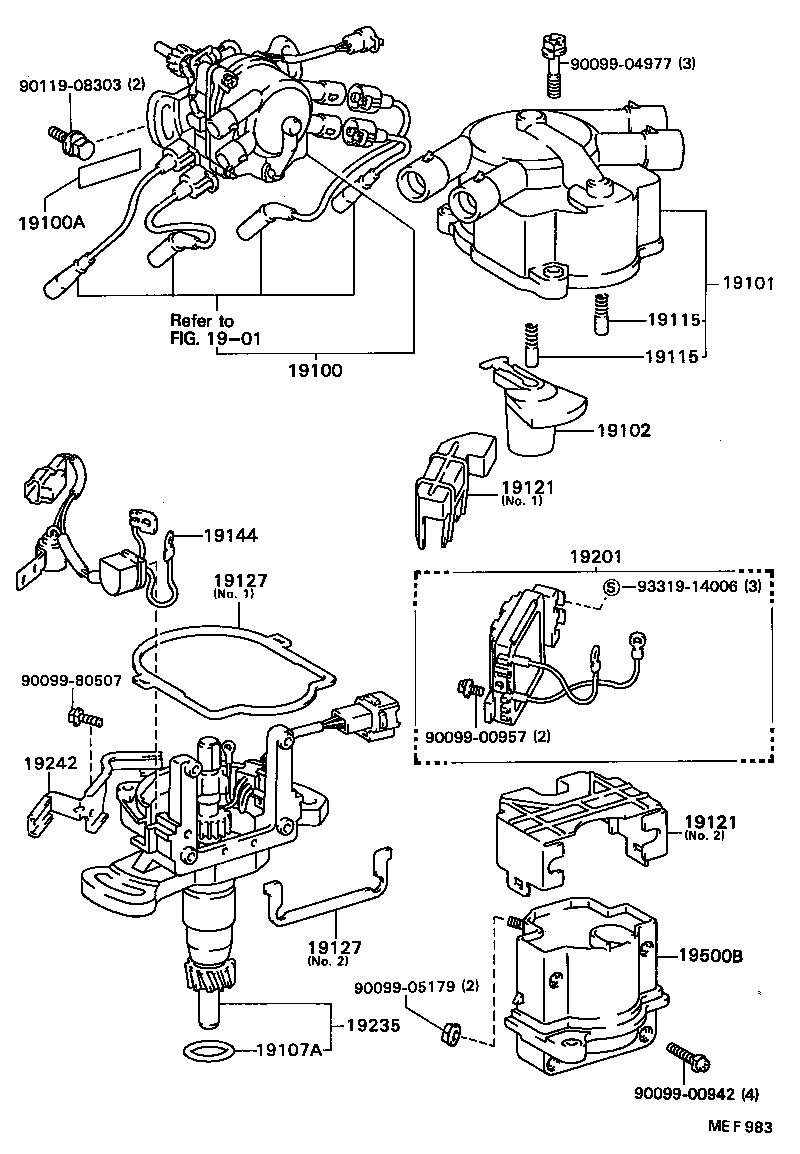

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19030-63100 |
1SILU..ST160 |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
1SILU,3SGELU..ST16# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-63011 |
1SILU..ST160 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-16040 |
1SILU..ST160 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
1SILU,3SGELU..ST16# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
1SILU..ST160 |
2 | ||
| 19115-71010 |
1SILU..ST160 |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
1SILU..ST160 |
2 | ||
| 19115-71010 |
1SILU..ST160 |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63040 |
1SILU..ST160 NO.2 |
1 | ||
| 19121-63090 |
1SILU..ST160 NO.1 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63040 |
1SILU..ST160 NO.2 |
1 | ||
| 19121-63090 |
1SILU..ST160 NO.1 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63020 |
1SILU..ST160 NO.2 |
1 | ||
| 19127-63010 |
1SILU..ST160 NO.1 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63020 |
1SILU..ST160 NO.2 |
1 | ||
| 19127-63010 |
1SILU..ST160 NO.1 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-63100 |
1SILU..ST160 |
1 | ||
| 19201 - IGNITER | ||||
| 89620-20250 |
1SILU..ST160 |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-63100 |
1SILU..ST160 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-74010 |
1SILU..ST160 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02135 |
1SILU..ST160 |
1 | ||
| Common parts | ||||
| 90099-00942 | ||||
| 90099-00957 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90099-80507 | ||||
| 90119-08303 | ||||
| 93319-14006 | ||||
| Linked diagrams | ||||
| 1901 | ||||
(8708-8805)1SILU

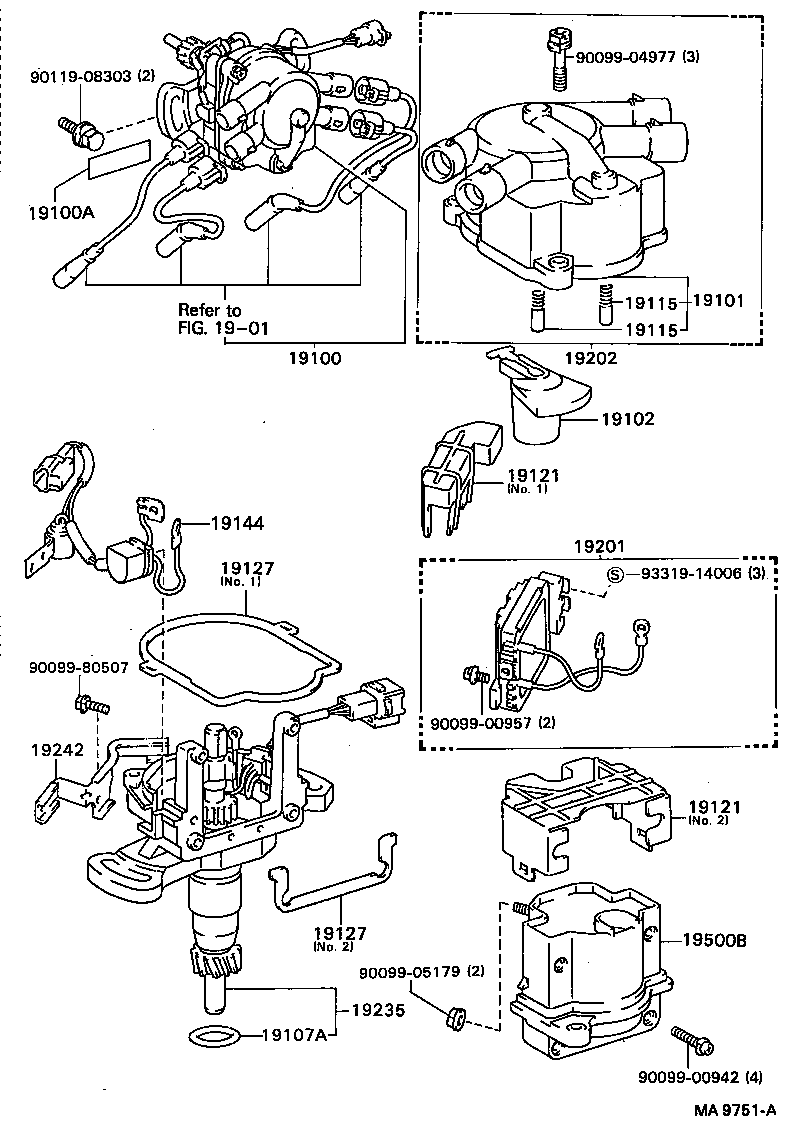

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00942 | ||||
| 90099-00957 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90099-80507 | ||||
| 90119-08303 | ||||
| 93319-14006 | ||||
| Linked diagrams | ||||
| 1901 | ||||
