AT160-TCPVF (1985)

Toyota Corona Ff Coupe

Production Aug 1985 - Aug 1987
Engine 4AGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

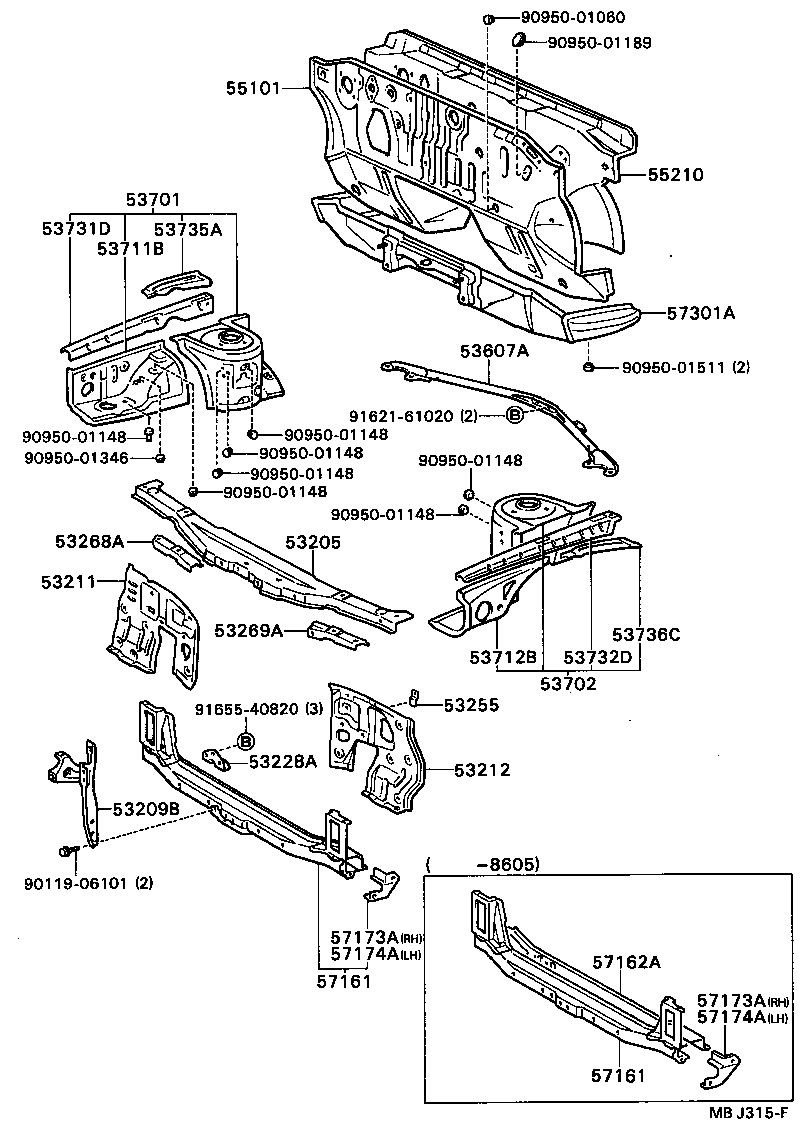

Click highlighted areas on diagram

diagram 53205 53209B 53211 53212 53228A 53255 53268A 53269A 53607A 53701 53702 53711B 53712B 53731D 53732D 53735A 53736C 55101 55210 57161 57161 57162A 57173A 57173A 57174A 57174A 57301A 9011906101 9095001060 9095001148 9095001148 9095001148 9095001148 9095001148 9095001148 9095001148 9095001189 9095001346 9095001511 9162161020 9165540820
Part # Description Qty Price
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-20090

AT160,ST16#

 1
53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT
53209-20090

AT160,ST16#

 1
53211 - SUPPORT, RADIATOR, RH
53211-20150

AT160,ST16#

 1
53212 - SUPPORT, RADIATOR, LH
53212-20150

AT160,ST16#

 1
53228A - BRACKET, RADIATOR MOUNTING, LOWER NO.1
53228-20030

AT160,ST16#

 1
53255 - BRACKET, RELAY BOX MOUNTING
53255-20010

AT160,ST16#

 1
53255-20030

AT160,ST16#

 1
53268A - REINFORCEMENT, RADIATOR MOUNTING, RH
53268-20040

AT160,ST16#

 1
53268-20050

AT160,ST16#

 1
53269A - REINFORCEMENT, RADIATOR MOUNTING, LH
53269-20040

AT160,ST16#

 1
53269-20030

AT160,ST16#

 1
53607A - BRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
53607-20010

AT160,ST162

 1
53607-20020

AT160,ST162

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-20540

AT160,ST16#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-20570

AT160,ST16#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-20160

AT160,ST16#

 1
53228-20030

AT160,ST16#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-20230

AT160,ST16#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-20060

AT160,ST16#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-20060

AT160,ST16#

 1
53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53735-20040

AT160,ST16#

 1
53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53736-20050

AT160,ST16#

 1
55101 - PANEL SUB-ASSY, DASH
55101-20690

AT160,ST16#..4FC

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-20080

AT160,ST16#

 1
57161 - CROSSMEMBER, FRONT
57161-20907

AT160,ST16#

 1
57161-20906

AT160,ST16#

 1
57161 - CROSSMEMBER, FRONT
57161-20907

AT160,ST16#

 1
57161-20906

AT160,ST16#

 1
57162A - MEMBER, FRONT CROSS, REAR
57162-20901

AT160,ST16#

 1
57173A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH
57173-20010

AT160,ST16#

 1
57173A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH
57173-20010

AT160,ST16#

 1
57174A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH
57174-20010

AT160,ST16#

 1
57174A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH
57174-20010

AT160,ST16#

 1
57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
57301-20090

AT160,ST16#

 1
57301-20110

AT160,ST16#

 1
Common parts
90119-06101
90950-01060
90950-01148
90950-01189
90950-01346
90950-01511
91621-61020
91655-40820
