AT160-TCPVF (1985)

Toyota Corona Ff Coupe

Production Aug 1985 - Aug 1987
Engine 4AGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

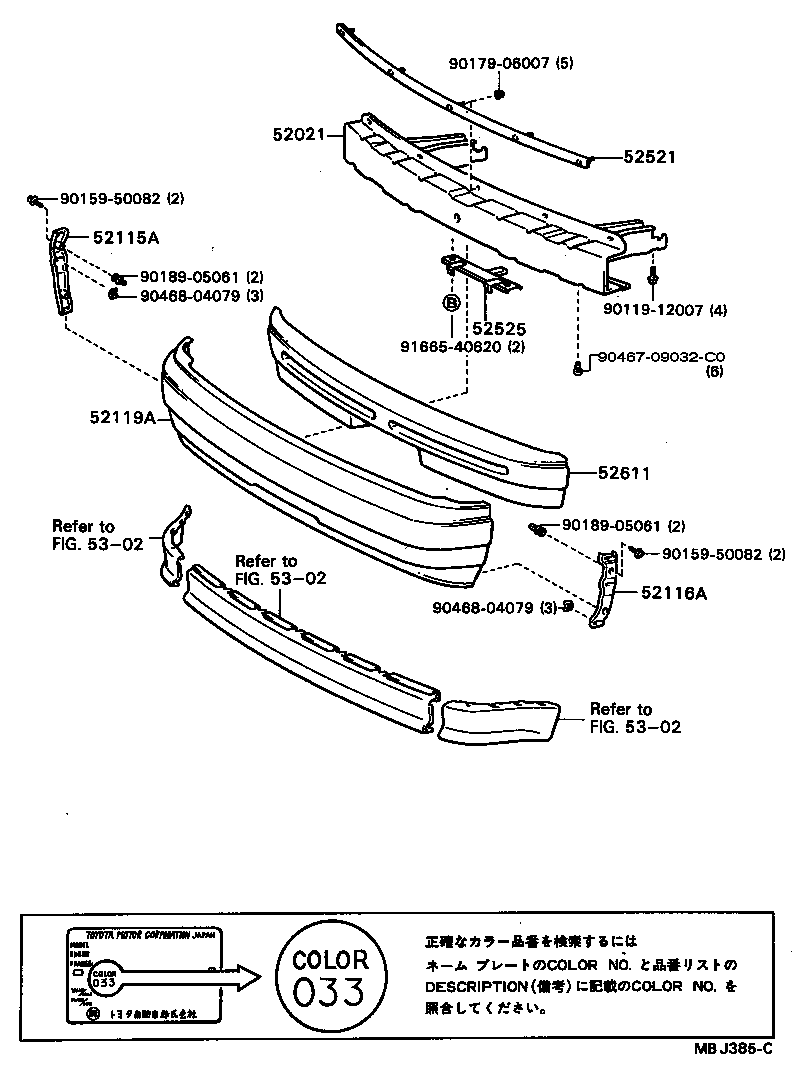

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52521 52525 52611 5302 5302 5302 9011912007 9015950082 9015950082 9017906007 9018905061 9018905061 9046709032C0 9046804079 9046804079 9166540620
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-20100

AT160,ST16#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20160

AT160,ST16#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20140

AT160,ST16#

 1
52119A - COVER, FRONT BUMPER
52119-2023002

AT160,ST16#

RED,SUPER RED 2,3E5

 1
52119-2023008

AT160,ST16#

WHITE,WHITE,041

 1
52119-2023003

AT160,ST16#

SILVER-M,BLUISH SILVER M,160

 1
52119-2023023

AT160,ST16#..EXS,GT

SILVER-M,SILVER/GRAY METALLIC,2Z5

 1
52119-2023013

AT160,ST16#

DARK GRAY-M,DARK GRAY METALLIC,162

 1
52119-2023014

AT160,ST16#

BLUE-M,BLUE METALLIC,8D7

 1
52119-2023018

AT160,ST16#

SUPER WHITE,SUPER WHITE 2,040

 1
52119-2023033

AT160,ST16#..EXS,GT

SILVER-M,SILVER/SILVER,24C

 1
52119-2023004

AT160,ST16#

BLUE-M,ATLAS BLUE METALLIC,8D4

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-20061

AT160,ST16#

 1
52521-20060

AT160,ST16#

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-20060

AT160,ST16#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-20060

AT160,ST16#

 1
Common parts
90119-12007
90159-50082
90179-06007
90189-05061
90467-09032C0
90468-04079
91665-40620
Linked diagrams
5302
