AT160-TCMVF (1985)
Toyota Corona Ff Coupe
Production
Aug 1985
-
Aug 1987
Engine
4AGELU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

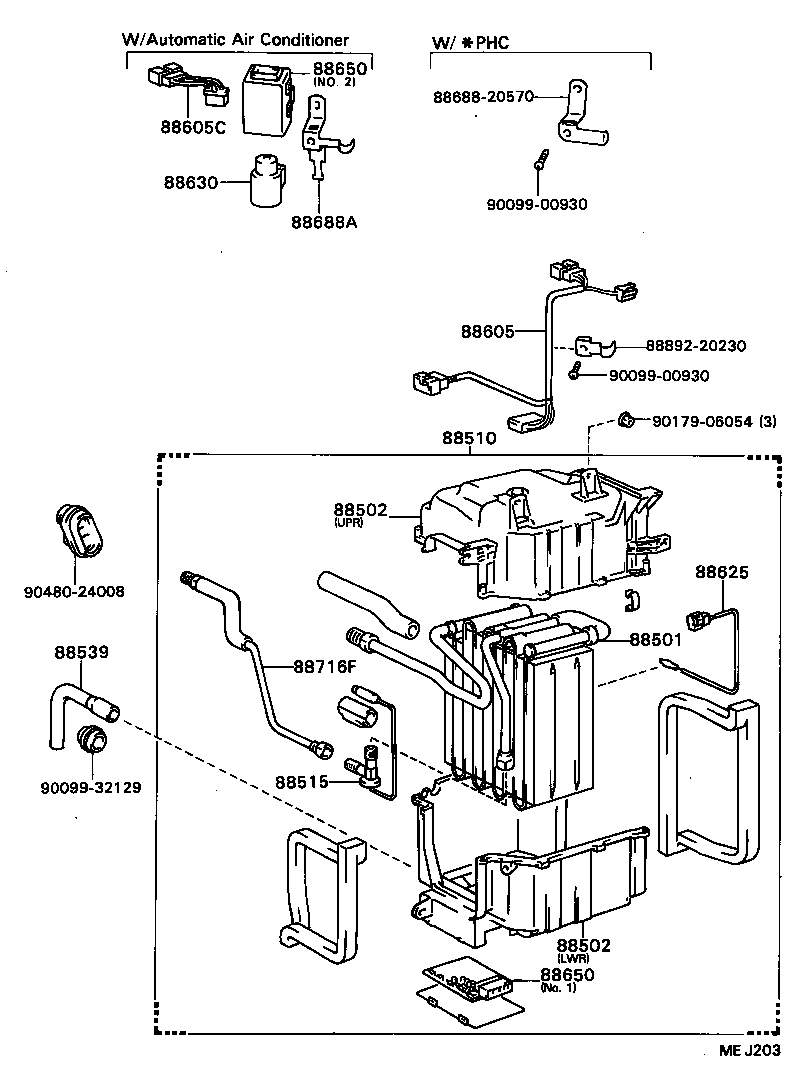

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20200 |
AT160,ST16# |
1 | ||
| 88501-20201 |
AT160,ST16# |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20090 |
AT160,ST16# UPR |
1 | ||
| 88502-20100 |
AT160,ST16# LWR |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-20090 |
AT160,ST16# UPR |
1 | ||
| 88502-20100 |
AT160,ST16# LWR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-20440 |
AT160 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16031 |
AT160,ST16# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-20130 |
AT160,ST16# |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-20590 |
AT160 W/*LHC |
1 | ||
| 88605-20690 |
AT160 W/*AAC |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12070 |
AT160,ST16# |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-95702 |
AT160,ST16# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20240 |
AT160 NO.1 |
1 | ||
| 88650-20320 |
AT160,ST16# *AAC,NO.2 |
1 | ||
| 88650-20241 |
AT160 NO.1 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20240 |
AT160 NO.1 |
1 | ||
| 88650-20320 |
AT160,ST16# *AAC,NO.2 |
1 | ||
| 88650-20241 |
AT160 NO.1 |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-20670 |
AT160,ST16# |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-2B040 |
AT160,ST16# |
1 | ||
| Common parts | ||||
| 88688-20570 | ||||
| 88892-20230 | ||||
| 90099-00930 | ||||
| 90099-32129 | ||||
| 90179-06054 | ||||
| 90480-24008 | ||||
