AT160-TCMVF (1985)
Toyota Corona Ff Coupe

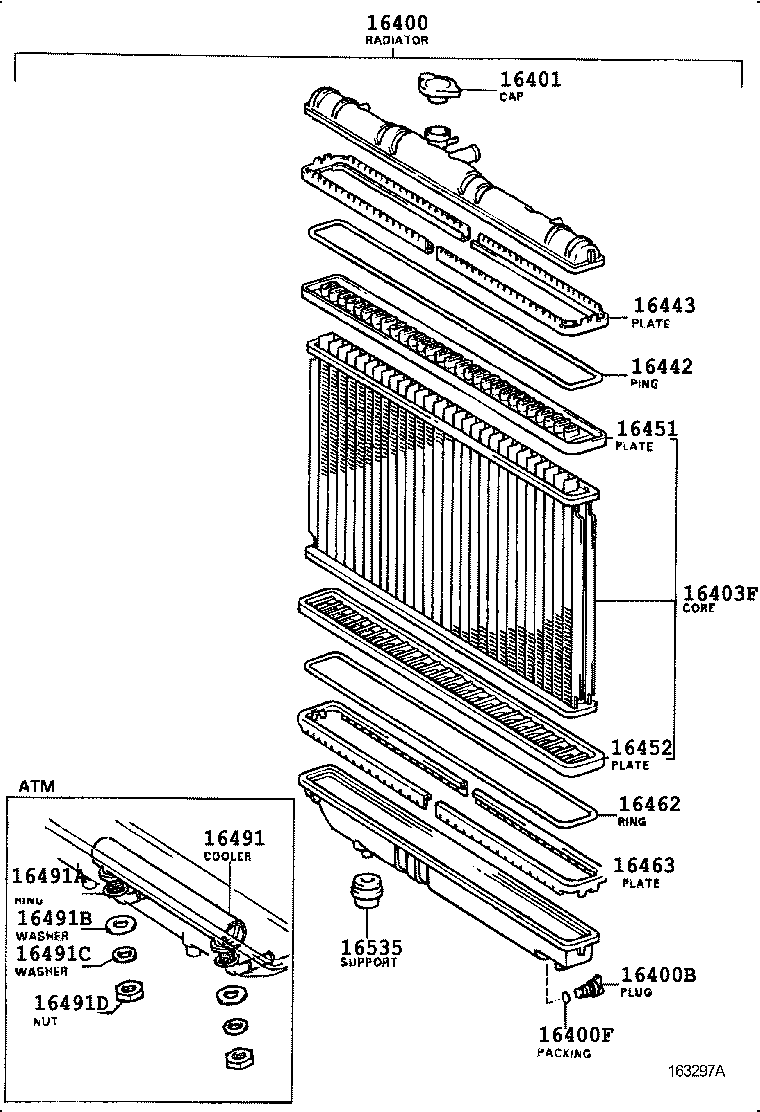

ILLUST NO. 2 OF 2(8508- )4AGELU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-15190 |
4AGELU..AT160..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
4AGELU..AT160 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
4AGELU..AT160 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
4AGELU..AT160 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-15190 |
4AGELU..AT160..5F |
1 | ||
| 16403-74120 |
4AGELU..AT160..5F |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-63030 |
4AGELU..AT160..5F |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-15321 |
4AGELU..AT160..5F |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-63030 |
4AGELU..AT160..5F |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-63030 |
4AGELU..AT160..5F |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-63030 |
4AGELU..AT160 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15320 |
4AGELU..AT160 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-15020 |
4AGELU..AT160..5F |
2 | ||

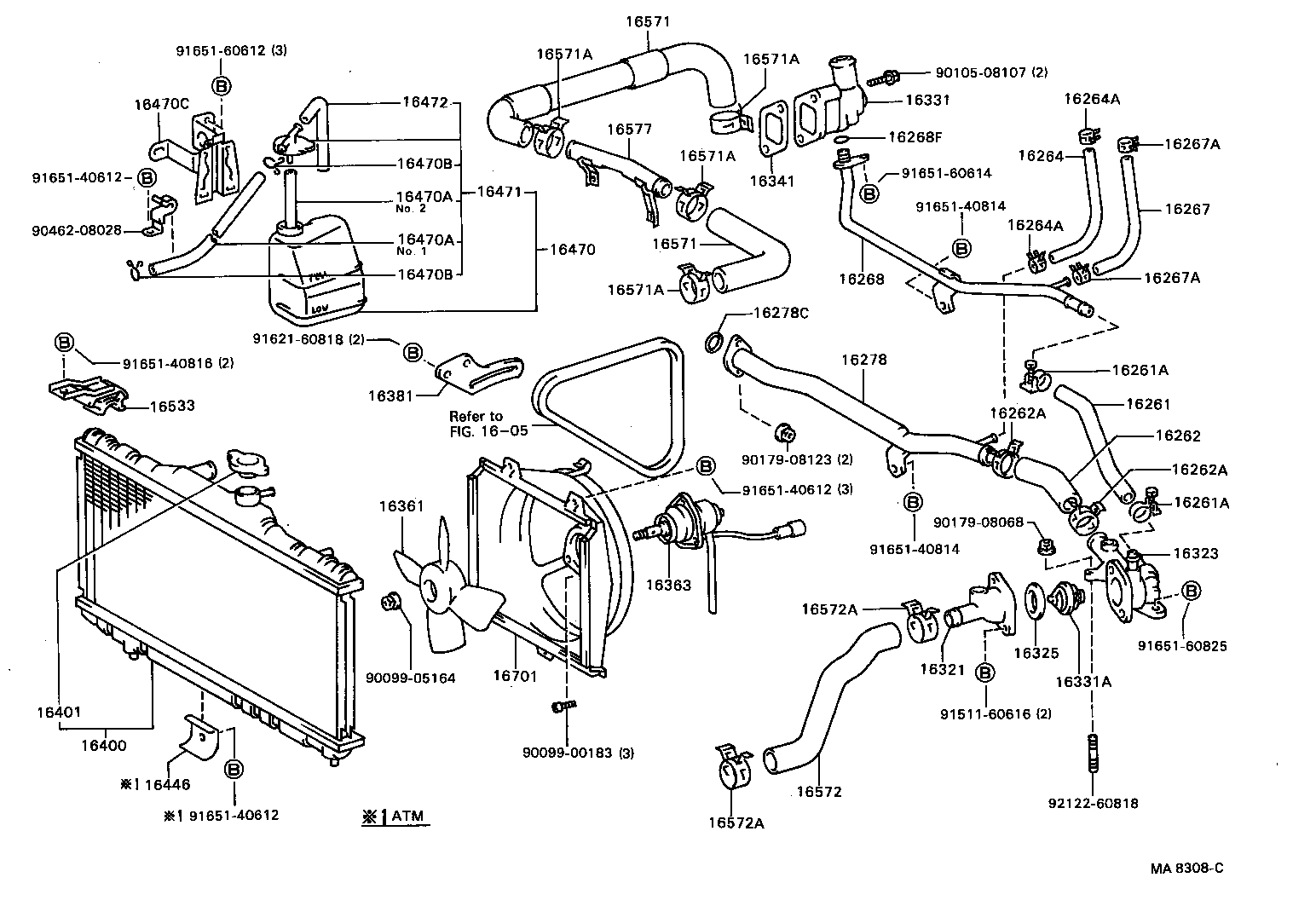

ILLUST NO. 1 OF 2(8508- )4AGELU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-15010 |
4AGELU..AT160 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
4AGELU..AT160 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10250 |
4AGELU..AT160 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-15010 |
4AGELU..AT160 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34002 |
4AGELU..AT160 |
2 | ||
| 90467-34003 |
4AGELU..AT160 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34002 |
4AGELU..AT160 |
2 | ||
| 90467-34003 |
4AGELU..AT160 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-16030 |
4AGELU..AT160 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
4AGELU..AT160 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
4AGELU..AT160 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-16010 |
4AGELU..AT160 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
4AGELU..AT160 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
4AGELU..AT160 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-16030 |
4AGELU..AT160 |
1 | ||
| 16268-16070 |
4AGELU..AT160 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96711-24013 |
4AGELU..AT160 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-16060 |
4AGELU..AT160 |
1 | ||
| 16278-16010 |
4AGELU..AT160 |
1 | ||
| 16278C - RING, O(FOR WATER BY-PASS PIPE NO.2) | ||||
| 96711-24035 |
4AGELU..AT160 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-15010 |
4AGELU..AT160 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-14010 |
4AGELU..AT160 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
4AGELU..AT160 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-16030 |
4AGELU..AT160 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
4AGELU..AT160 *WAX 82−95 |
1 | ||
| 90916-03060 |
4AGELU..AT160 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-16020 |
4AGELU..AT160 |
1 | ||
| 16341-16010 |
4AGELU..AT160 |
1 | ||
| 16361 - FAN | ||||
| 16361-15080 |
4AGELU..AT160..5F |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-10010 |
4AGELU..AT160..5F |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-16030 |
4AGELU..AT160 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15190 |
4AGELU..AT160..5F |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
4AGELU..AT160 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-16050 |
4AGELU..AT160 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85338-73020 |
4AGELU..AT160 NO.1 |
1 | ||
| 90445-12078 |
4AGELU..AT160 *H,L=145,NO.2 |
1 | ||
| 90099-33534 |
4AGELU..AT160 *H,L=620,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85338-73020 |
4AGELU..AT160 NO.1 |
1 | ||
| 90445-12078 |
4AGELU..AT160 *H,L=145,NO.2 |
1 | ||
| 90099-33534 |
4AGELU..AT160 *H,L=620,NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AGELU..AT160 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4AGELU..AT160 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-74010 |
4AGELU..AT160 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-16040 |
4AGELU..AT160 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-10020 |
4AGELU..AT160 |
1 | ||
| 85338-74040 |
4AGELU..AT160 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74010 |
4AGELU..AT160..5F |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-16040 |
4AGELU..AT160 OUTLET SIDE |
1 | ||
| 16573-16030 |
4AGELU..AT160 RADIATOR SIDE |
1 | ||
| 16571-16070 |
4AGELU..AT160 OUTLET SIDE |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-16040 |
4AGELU..AT160 OUTLET SIDE |
1 | ||
| 16573-16030 |
4AGELU..AT160 RADIATOR SIDE |
1 | ||
| 16571-16070 |
4AGELU..AT160 OUTLET SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34002 |
4AGELU..AT160 |
4 | ||
| 90467-34003 |
4AGELU..AT160 |
4 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34002 |
4AGELU..AT160 |
4 | ||
| 90467-34003 |
4AGELU..AT160 |
4 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34002 |
4AGELU..AT160 |
4 | ||
| 90467-34003 |
4AGELU..AT160 |
4 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34002 |
4AGELU..AT160 |
4 | ||
| 90467-34003 |
4AGELU..AT160 |
4 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-16060 |
4AGELU..AT160 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AGELU..AT160 |
2 | ||
| 90467-34002 |
4AGELU..AT160 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AGELU..AT160 |
2 | ||
| 90467-34002 |
4AGELU..AT160 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-16020 |
4AGELU..AT160 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-16060 |
4AGELU..AT160..5F |
1 | ||
| Common parts | ||||
| 90099-00183 | ||||
| 90099-05164 | ||||
| 90105-08107 | ||||
| 90179-08068 | ||||
| 90179-08123 | ||||
| 90462-08028 | ||||
| 91511-60616 | ||||
| 91621-60818 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-60612 | ||||
| 91651-60614 | ||||
| 91651-60825 | ||||
| 92122-60818 | ||||
| Linked diagrams | ||||
| 1605 | ||||
