ST205-ATPVF (1995)

Toyota Corona Exiv

Production Aug 1995 - Apr 1998
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

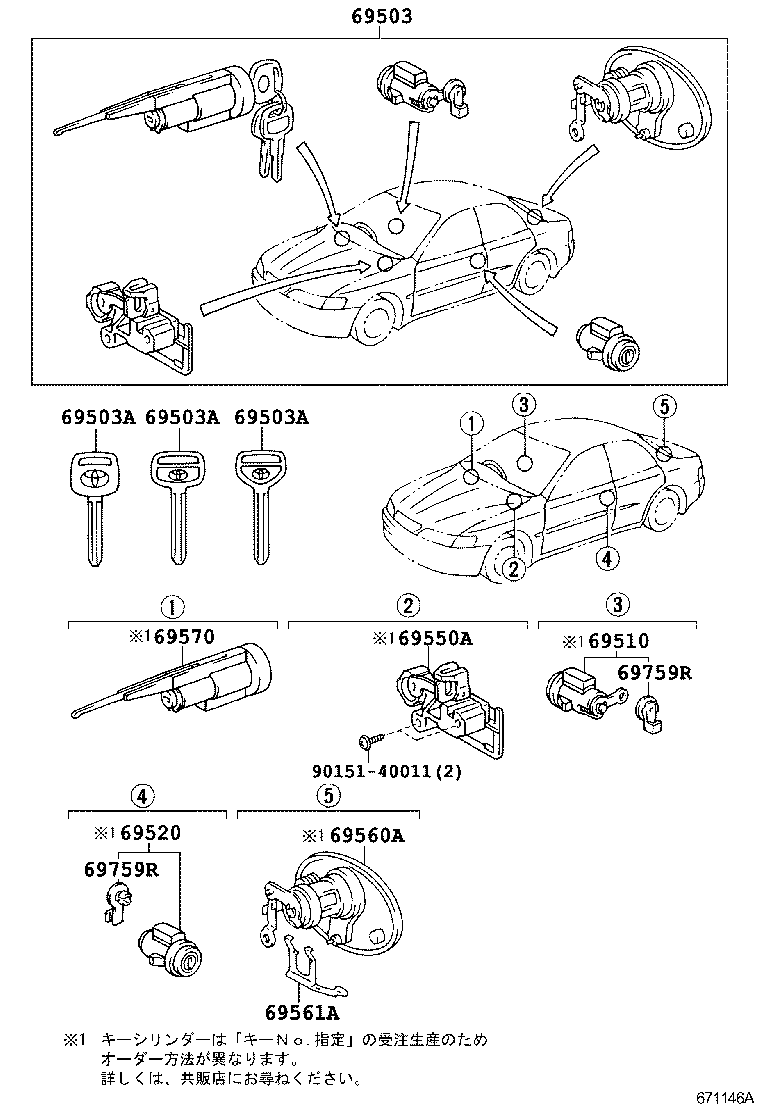

Click highlighted areas on diagram

diagram 69503 69503A 69503A 69503A 69510 69520 69550A 69560A 69561A 69570 69759R 69759R 9015140011
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-2B400C0

ST20#

BLACK,1A2 ,202 ,3K4 ,6M1

 1
69005-2B440

ST200,202,205..180E,200E,200GT,GT4WD

 1
69005-2B400B0

ST20#

SILVER,040 ,046

 1
69503A - KEY, BLANK
90999-00188

ST20#

ｻﾌﾞｷｰ

 1
90999-00185

ST20#..180E,200E,200GT,GT4WD,TR,TRG,TRG4,TRR,TRX

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00186

ST20#

ﾏｽﾀｰｷｰ

 1
69503A - KEY, BLANK
90999-00188

ST20#

ｻﾌﾞｷｰ

 1
90999-00185

ST20#..180E,200E,200GT,GT4WD,TR,TRG,TRG4,TRR,TRX

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00186

ST20#

ﾏｽﾀｰｷｰ

 1
69503A - KEY, BLANK
90999-00188

ST20#

ｻﾌﾞｷｰ

 1
90999-00185

ST20#..180E,200E,200GT,GT4WD,TR,TRG,TRG4,TRR,TRX

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00186

ST20#

ﾏｽﾀｰｷｰ

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-20250

ST20#

 1
69510-20250

ST20#

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-20240

ST20#

 1
69520-20240

ST20#

 1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-20130

ST20#

 1
69550-20130

ST20#

 1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-20350

ST20#

 1
69560-20470

ST20#

 1
69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
69561-20160

ST20#

 1
69561-20170

ST20#

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-20240

ST20#

 1
69570-20240

ST20#

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-22080

ST20#

ｵﾚﾝｼﾞ

 1
69759-22090

ST20#

ﾋﾟﾝｸ

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-22080

ST20#

ｵﾚﾝｼﾞ

 1
69759-22090

ST20#

ﾋﾟﾝｸ

 1
Common parts
90151-40011
