ST203-ATPSK (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

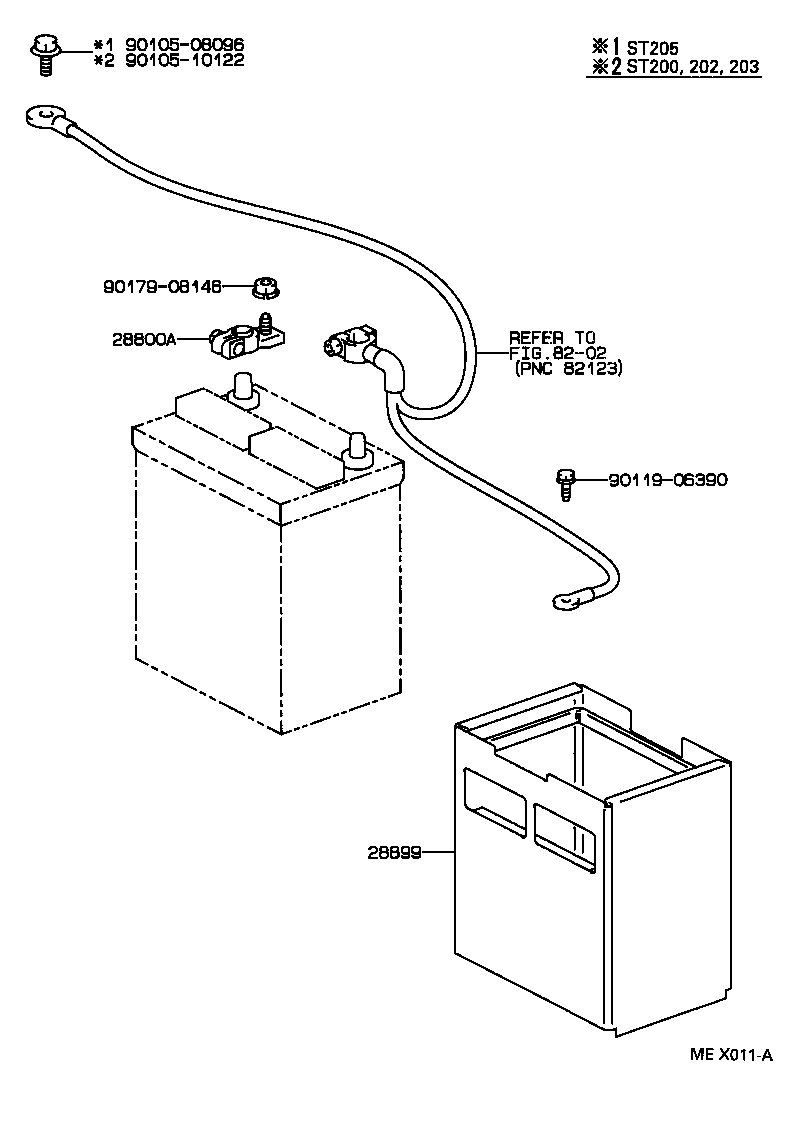

Click highlighted areas on diagram

diagram 28800A 28899 8202 9010508096 9010510122 9011906390 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05028

3S#,4SFE..ST20#

 1
28899 - INSULATOR, BATTERY
28899-74120

3S#,4SFE..ST20#

ｱﾘ(ﾊﾞﾂﾃﾘ=NS60L)

 1
Common parts
90105-08096
90105-10122
90119-06390
90179-08146
Linked diagrams
8202
