ST203-ATPSK (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

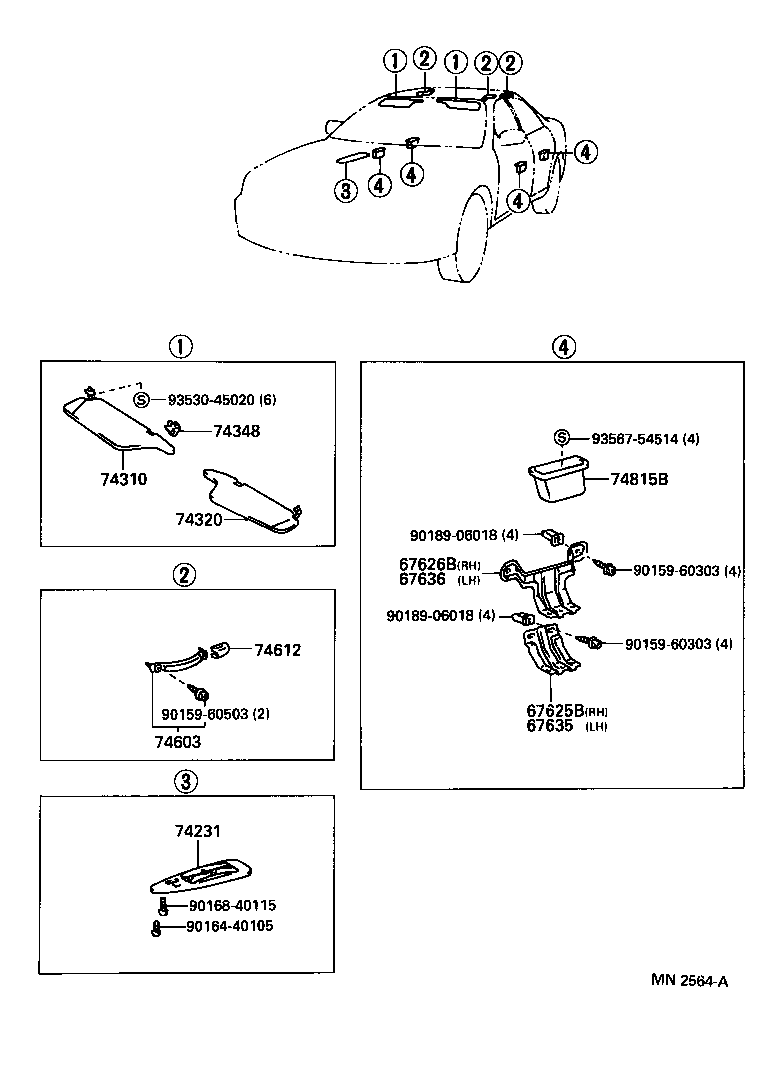

Click highlighted areas on diagram

diagram 67625B 67626B 67635 67636 74231 74310 74320 74348 74603 74612 74815B 9015960303 9015960303 9015960503 9016440105 9016840115 9018906018 9018906018 9353045020 9356754514
Part # Description Qty Price
67625B - BRACKET, DOOR TRIM, NO.1 RH
67625-20120

ST20#

 1
67626B - BRACKET, DOOR TRIM, NO.2 RH
67626-20080

ST20#

 1
67635 - BRACKET, DOOR TRIM, NO.1 LH
67625-20120

ST20#

 1
67636 - BRACKET, DOOR TRIM, NO.2 LH
67626-20080

ST20#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-20410B0

ST20#

SHADOW GRAY,TRIM1#

 1
74231-20411B0

ST20#

SHADOW GRAY,TRIM1#

 1
74310 - VISOR ASSY, RH
74310-2B520B0

ST20#

SHADOW GRAY,TRIM1#

 1
74310-2B520B1

ST20#

LT. GRAY,TRIM1#

 1
74310-2B521B1

ST20#

LT. GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-2B360B0

ST20#

SHADOW GRAY,TRIM1#

 1
74320-2B360B1

ST20#

LT. GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-22020B2

ST20#

LI. GRAY,TRIM1#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-22050S3

ST20#

LT. GRAY,TRIM1#

 3
74612 - COVER, ASSIST GRIP
74612-20050S3

ST20#

LI. GRAY,TRIM1#

 6
74815B - HANDLE, REAR DOOR PULL
74815-20030B0

ST20#

SHADOW GRAY,TRIM1#

 4
Common parts
90159-60303
90159-60503
90164-40105
90168-40115
90189-06018
93530-45020
93567-54514
