ST203-ATPSK (1993)
Toyota Corona Exiv
Production
Sep 1993
-
Aug 1995
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

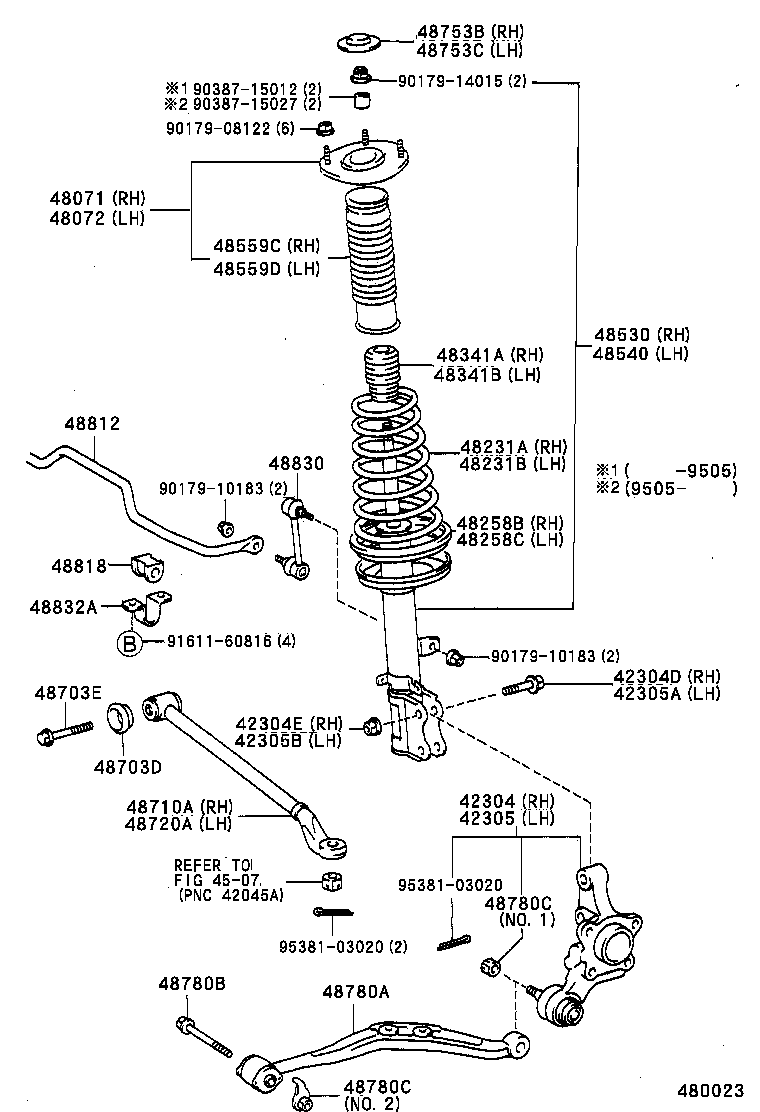

(9309- )ST201,203
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-29025 |
ST203 |
1 | ||
| 42304-29045 |
ST203 ｱﾘ(ABS) |
1 | ||
| 42304D - BOLT (FOR REAR AXLE CARRIER RH) | ||||
| 90105-15001 |
ST20# |
2 | ||
| 42304E - NUT (FOR REAR AXLE CARRIER RH) | ||||
| 90179-15001 |
ST20# |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-29025 |
ST203 |
1 | ||
| 42305-29045 |
ST203 ｱﾘ(ABS) |
1 | ||
| 42305A - BOLT (FOR REAR AXLE CARRIER LH) | ||||
| 90105-15001 |
ST20# |
2 | ||
| 42305B - NUT (FOR REAR AXLE CARRIER LH) | ||||
| 90179-15001 |
ST20# |
2 | ||
| 48071 - SUPPORT SUB-ASSY, REAR SUSPENSION, RH | ||||
| 48071-20140 |
ST20# |
1 | ||
| 48071-20141 |
ST20# |
1 | ||
| 48072 - SUPPORT SUB-ASSY, REAR SUSPENSION, LH | ||||
| 48072-20040 |
ST20# |
1 | ||
| 48072-20041 |
ST20# |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-2G360 |
ST202,203..200E,200G,TRR,TRX |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-2G360 |
ST202,203..200E,200G,TRR,TRX |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-20030 |
ST20# |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-20030 |
ST20# |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-20240 |
ST20# |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-20240 |
ST20# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-29285 |
ST200,201,202,203..180E,180G,200E,200G,TR,TRR,TRX |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-29015 |
ST200,201,202,203..180E,180G,200E,200G,TR,TRR,TRX |
1 | ||
| 48559C - COVER, REAR SHOCK ABSORBER DUST, RH NO.1 | ||||
| 48559-12070 |
ST20# |
1 | ||
| 48559D - COVER, REAR SHOCK ABSORBER DUST, LH NO.1 | ||||
| 48559-12070 |
ST20# |
1 | ||
| 48703D - WASHER(FOR REAR SUSPENSION ARM) | ||||
| 90209-13005 |
ST201,203,205 |
2 | ||
| 48703E - BOLT(FOR REAR SUSPENSION ARM) | ||||
| 90105-12192 |
ST201,203 *12−1.25PX72−30 |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-20300 |
ST201,203 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-20300 |
ST201,203 |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-12010 |
ST20# |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-12010 |
ST20# |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-20140 |
ST201,203 |
2 | ||
| 48780B - BOLT(FOR STRUT ROD) | ||||
| 90119-12131 |
ST201,203 |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12091 |
ST201,203 NO.2 |
2 | ||
| 90171-12010 |
ST201,203 NO.1 |
2 | ||
| 48780C - NUT(FOR STRUT ROD) | ||||
| 90179-12091 |
ST201,203 NO.2 |
2 | ||
| 90171-12010 |
ST201,203 NO.1 |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-2B010 |
ST201,203 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-20390 |
ST200,201,202,203..TR,TRR,TRX ID=16 |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-20010 |
ST20# |
2 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-20070 |
ST200,201,202,203 |
2 | ||
| Common parts | ||||
| 90179-08122 | ||||
| 90179-10183 | ||||
| 90179-14015 | ||||
| 90387-15012 | ||||
| 90387-15027 | ||||
| 91611-60816 | ||||
| 95381-03020 | ||||
| Linked diagrams | ||||
| 4507 | ||||
