ST203-ATPGK (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

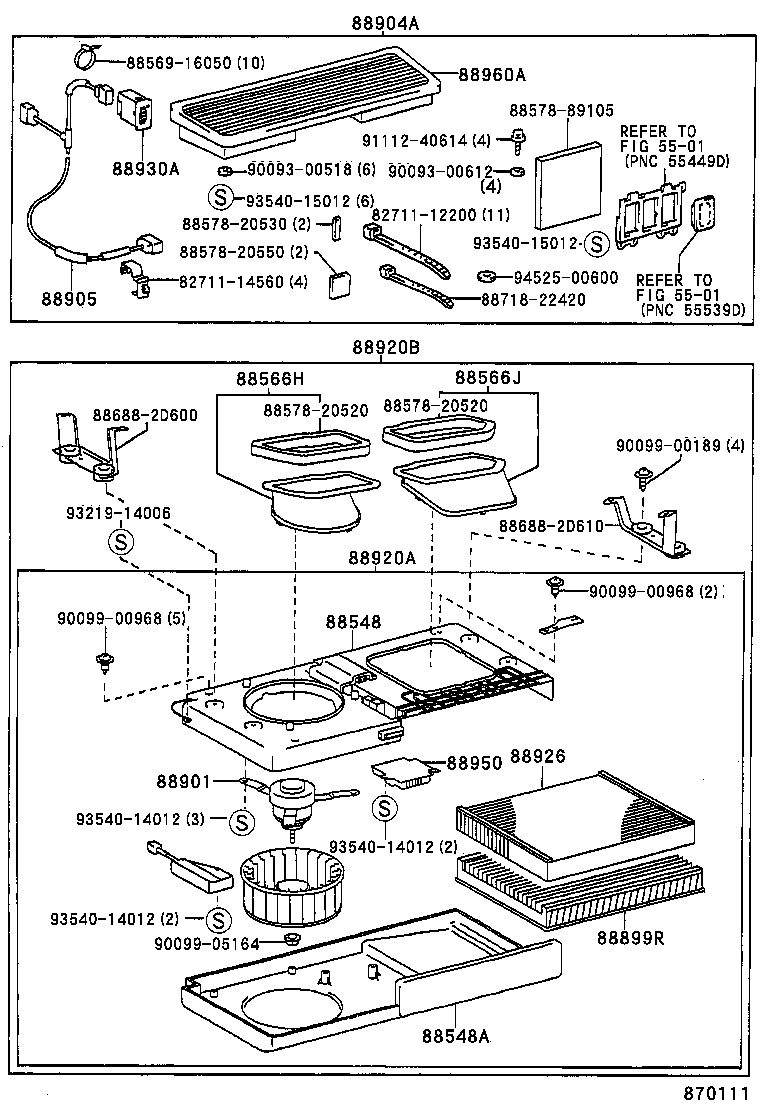

Click highlighted areas on diagram

diagram 5501 5501 8271112200 8271114560 88548 88548A 88566H 88566J 8856916050 8857820520 8857820520 8857820530 8857820550 8857889105 886882D600 886882D610 8871822420 88899R 88901 88904A 88905 88920A 88920B 88926 88930A 88950 88960A 9009300518 9009300612 9009900189 9009900968 9009900968 9009905164 9111240614 9321914006 9354014012 9354014012 9354014012 9354015012 9354015012 9452500600
Part # Description Qty Price
88548 - CASE, AIR PURIFIER NO.1
88548-12010

ST20#

 1
88548A - CASE, AIR PURIFIER NO.2
88548-12020

ST20#

 1
88566H - DUCT, AIR, NO.1
88566-20430

ST20#

 1
88566J - DUCT, AIR, NO.2
88566-20440

ST20#

 1
88899R - FRAME, AIR PURIFIER
88899-12080

ST20#

 1
88901 - MOTOR SUB-ASSY, AIR PURIFIER
88901-12010

ST20#

 1
88904A - ACCESSORY SUB-ASSY, AIR PURIFIRE
88904-20230B0

ST20#

SHADOW GRAY,TRIM1#

 1
88904-20230K0

ST200,201,202,203..TRX

TAUPE,TRIM9#

 1
88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1
88905-20230

ST20#

 1
88920A - PURIFIER ASSY, AIR
88920-12140

ST20#

 1
88920B - PURIFIER ASSY, AIR, NO.2
88920-20230

ST20#

 1
88926 - FILTER, AIR PURIFIER
88926-12020

ST20#

 1
88930A - SWITCH ASSY, AIR PURIFIER
88930-33020

ST20#

 1
88950 - AMPLIFIER ASSY, AIR PURIFIER
88950-12010

ST20#

 1
88960A - GRILLE ASSY, AIR PURIFIER
88960-20230K0

ST200,201,202,203..TRX

TAUPE,TRIM9#

 1
88960-20230B0

ST20#

SHADOW GRAY,TRIM1#

 1
Common parts
82711-12200
82711-14560
88569-16050
88578-20520
88578-20530
88578-20550
88578-89105
88688-2D600
88688-2D610
88718-22420
90093-00518
90093-00612
90099-00189
90099-00968
90099-05164
91112-40614
93219-14006
93540-14012
93540-15012
94525-00600
Linked diagrams
5501
