ST203-ATMGK (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9309-9606)ST202,203

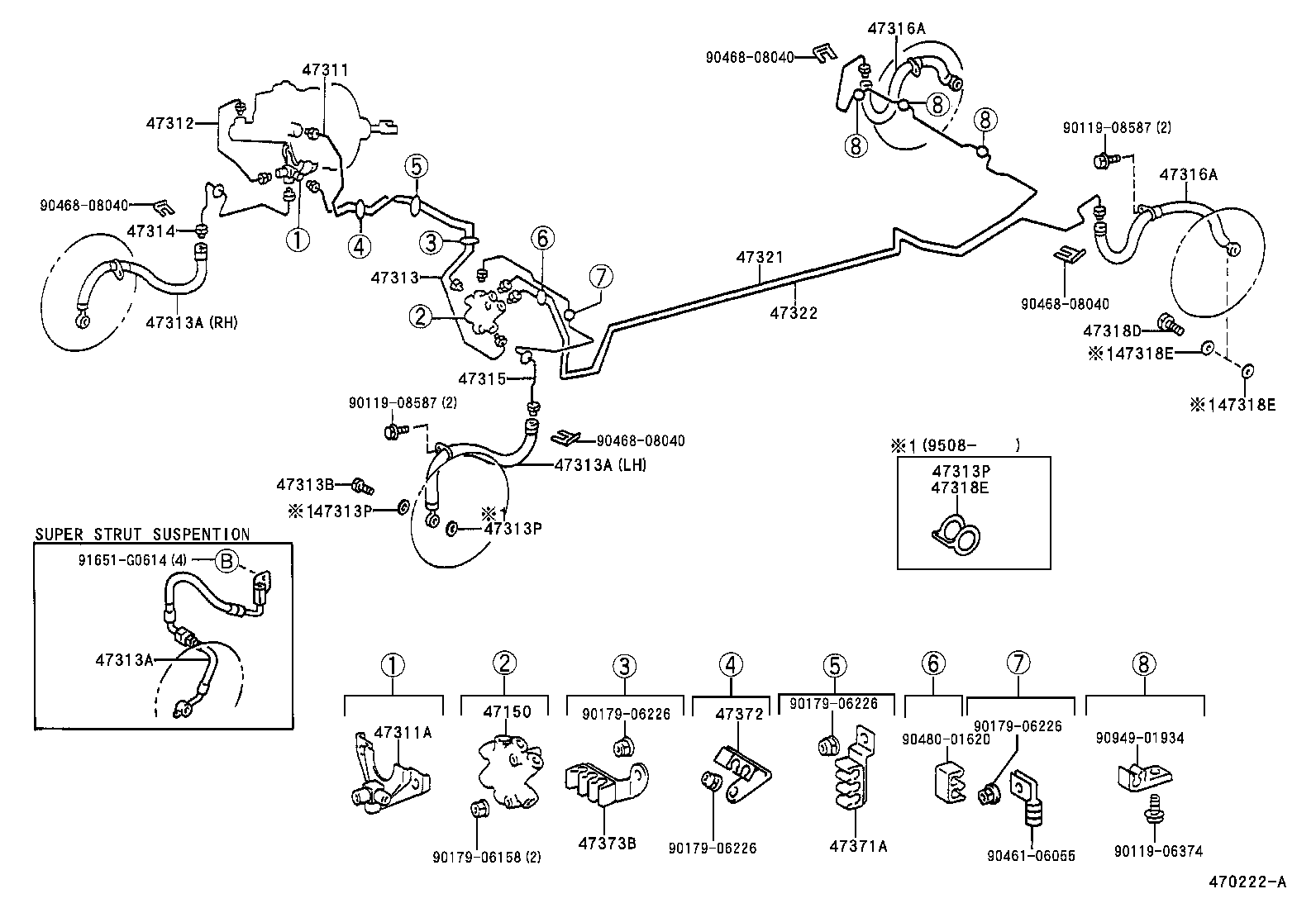

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47313A 47313B 47313P 47313P 47313P 47314 47315 47316A 47316A 47318D 47318E 47318E 47318E 47321 47322 47371A 47372 47373B 9011906374 9011908587 9011908587 9017906158 9017906226 9017906226 9017906226 9017906226 9046106055 9046808040 9046808040 9046808040 9046808040 9048001620 9094901934 91651G0614
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-20330

ST202,203..TRR,TRX

 1
47150-20380

ST202,203..TRR,TRX

ｱﾘ(ABS)

 1
47150-20240

ST202,203..200E,200G,TRR,TRX

ｱﾘ(ABS)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-2B080

ST202,203,205

 1
47311-2B100

ST20#

ｱﾘ(ABS)

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10171

ST20#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-20340

ST20#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20710

ST20#

ｱﾘ(ABS)

 1
47313-20690

ST202,203,205

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02761

ST200,201,202,203

右側

 1
90947-02762

ST200,201,202,203

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02761

ST200,201,202,203

右側

 1
90947-02762

ST200,201,202,203

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02761

ST200,201,202,203

右側

 1
90947-02762

ST200,201,202,203

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

ST20#

 2
90401-10058

ST20#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

ST20#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

ST20#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

ST20#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-20580

ST202,203,205

 1
47314-20600

ST20#

ｱﾘ(ABS)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20650

ST20#

ｱﾘ(ABS)

 1
47315-20630

ST20#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02769

ST202,203

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02769

ST202,203

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ST202,203,205

 2
90401-10015

ST202,203,205

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

ST202,203,205

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

ST202,203,205

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

ST202,203,205

 4
47321 - TUBE, REAR BRAKE, NO.1
47321-20380

ST200,201,202,203

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20490

ST200,201,202,203

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20440

ST20#

ｱﾘ(ABS)

 1
47371-20490

ST20#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-20450

ST20#

ｱﾘ(ABS)

 1
47371-20510

ST202,203,205

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-20480

ST20#

ｱﾘ(ABS)

 1
47371-20520

ST20#

 1
Common parts
90119-06374
90119-08587
90179-06158
90179-06226
90461-06055
90468-08040
90480-01620
90949-01934
91651-G0614

ILLUST NO. 1 OF 2(9309-9606)ST202,203

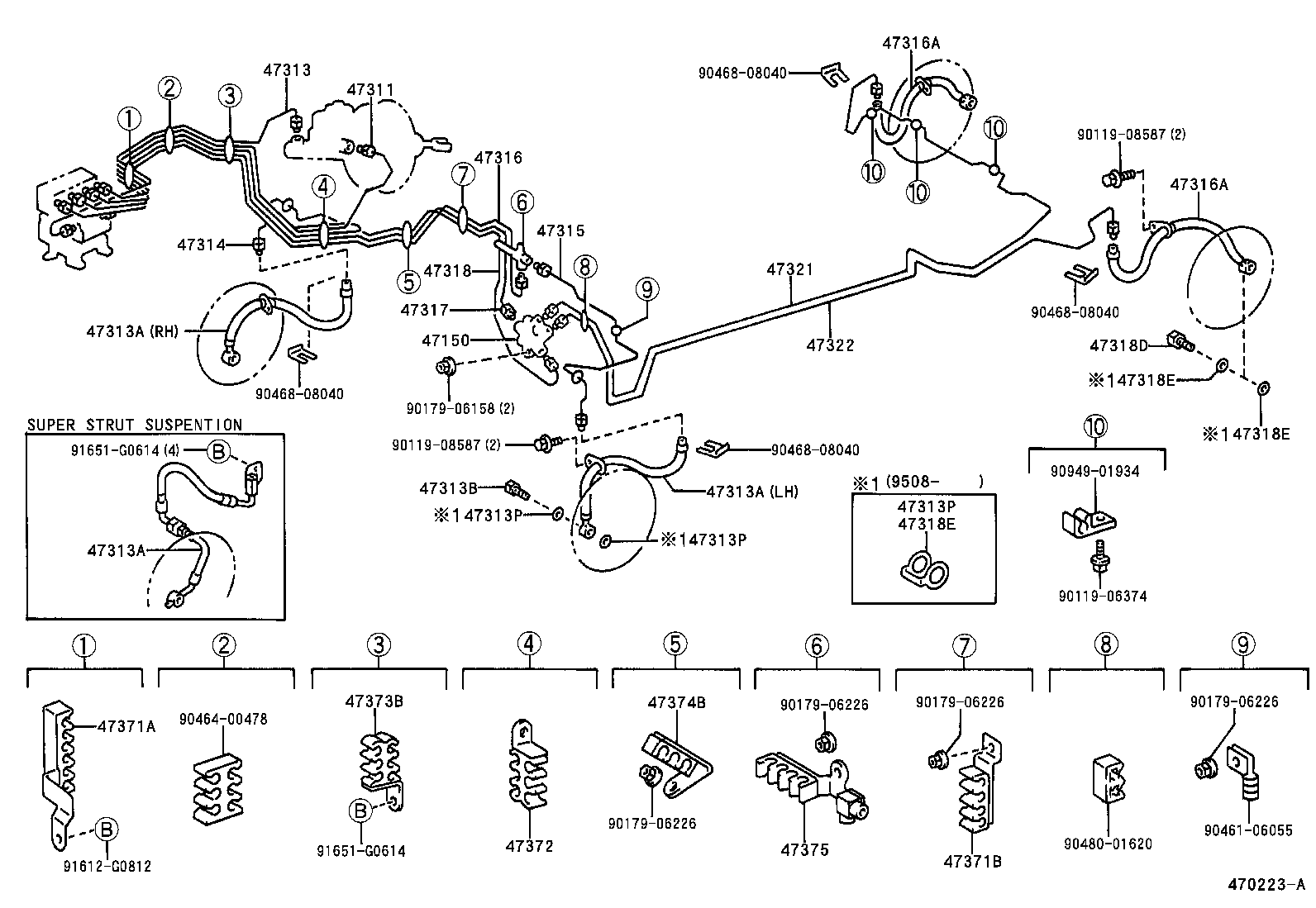

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 47150 47311 47313 47313A 47313A 47313A 47313B 47313P 47313P 47313P 47314 47315 47316 47316A 47316A 47317 47318 47318D 47318E 47318E 47318E 47321 47322 47371A 47371B 47372 47373B 47374B 47375 9011906374 9011908587 9011908587 9017906158 9017906226 9017906226 9017906226 9017906226 9046106055 9046400478 9046808040 9046808040 9046808040 9046808040 9048001620 9094901934 91612G0812 91651G0614 91651G0614
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-20330

ST202,203..TRR,TRX

 1
47150-20380

ST202,203..TRR,TRX

ｱﾘ(ABS)

 1
47150-20240

ST202,203..200E,200G,TRR,TRX

ｱﾘ(ABS)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-2B080

ST202,203,205

 1
47311-2B100

ST20#

ｱﾘ(ABS)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-20710

ST20#

ｱﾘ(ABS)

 1
47313-20690

ST202,203,205

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02761

ST200,201,202,203

右側

 1
90947-02762

ST200,201,202,203

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02761

ST200,201,202,203

右側

 1
90947-02762

ST200,201,202,203

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02761

ST200,201,202,203

右側

 1
90947-02762

ST200,201,202,203

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

ST20#

 2
90401-10058

ST20#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

ST20#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

ST20#

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-30010

ST20#

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-20580

ST202,203,205

 1
47314-20600

ST20#

ｱﾘ(ABS)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20650

ST20#

ｱﾘ(ABS)

 1
47315-20630

ST20#

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-20550

ST20#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02769

ST202,203

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02769

ST202,203

 2
47317 - TUBE, FRONT BRAKE, NO.7
47317-20200

ST20#

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-20330

ST20#

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ST202,203,205

 2
90401-10015

ST202,203,205

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

ST202,203,205

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

ST202,203,205

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-30010

ST202,203,205

 4
47321 - TUBE, REAR BRAKE, NO.1
47321-20380

ST200,201,202,203

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-20490

ST200,201,202,203

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-20440

ST20#

ｱﾘ(ABS)

 1
47371-20490

ST20#

 1
47371B - CLAMP, BRAKE TUBE, NO.6
47371-20590

ST20#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-20450

ST20#

ｱﾘ(ABS)

 1
47371-20510

ST202,203,205

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-20480

ST20#

ｱﾘ(ABS)

 1
47371-20520

ST20#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-20560

ST20#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-20570

ST20#

 1
Common parts
90119-06374
90119-08587
90179-06158
90179-06226
90461-06055
90464-00478
90468-08040
90480-01620
90949-01934
91612-G0812
91651-G0614

ILLUST NO. 2 OF 2(9309-9606)

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 44510 44545D 44545D 44545D 44546A 44546A 44546A 44590 44593 9011908934 9017906074 9017906074 9017906074 9017908224 9161160814
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-20190

ST202,203..TRR,TRX

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12090

ST20#

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12090

ST20#

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-12090

ST20#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12090

ST20#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12090

ST20#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12090

ST20#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-20010

ST20#

 1
44593 - BRACKET, BRAKE ACTUATOR, NO.3
44593-20080

ST20#

 1
Common parts
90119-08934
90179-06074
90179-08224
91611-60814
