ST202-ATPVF (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )ST200,201,202,203..ATM

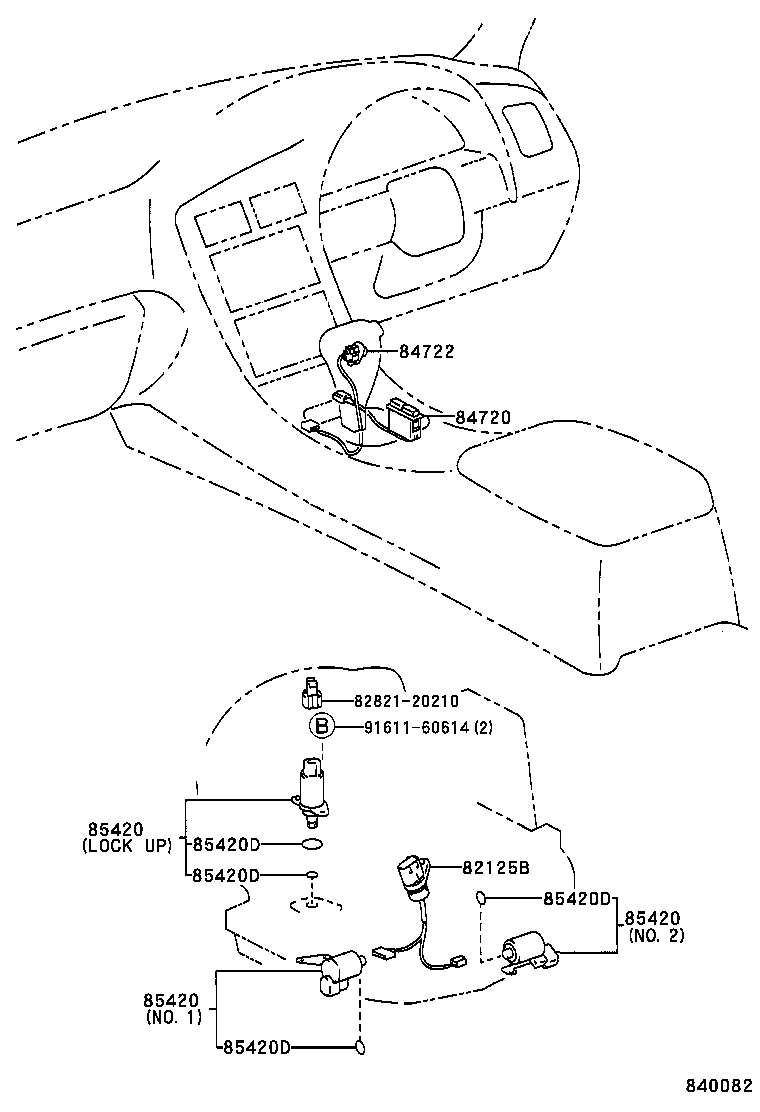

Click highlighted areas on diagram

diagram 82125B 8282120210 84720 84722 85420 85420 85420 85420D 85420D 85420D 85420D 9161160614
Part # Description Qty Price
82125B - WIRE, TRANSMISSION
82125-20150

ST200,201,202,203..ATM

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-20130

ST20#..ATM

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-20130C0

ST20#..ATM

BLACK,TRIM1#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-32021

ST200,201,202,203..ATM

NO.1

 1
85420-20110

ST200,201,202,203..ATM

ﾛｯｸ ｱｯﾌﾟ

 1
85420-32140

ST200,201,202,203..ATM

NO.2

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-32021

ST200,201,202,203..ATM

NO.1

 1
85420-20110

ST200,201,202,203..ATM

ﾛｯｸ ｱｯﾌﾟ

 1
85420-32140

ST200,201,202,203..ATM

NO.2

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-32021

ST200,201,202,203..ATM

NO.1

 1
85420-20110

ST200,201,202,203..ATM

ﾛｯｸ ｱｯﾌﾟ

 1
85420-32140

ST200,201,202,203..ATM

NO.2

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
96721-19017

ST200,201,202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 1
90301-06004

ST200,201,202,203..ATM

NO.1 & NO.2

 2
90301-06005

ST200,201,202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
96721-19017

ST200,201,202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 1
90301-06004

ST200,201,202,203..ATM

NO.1 & NO.2

 2
90301-06005

ST200,201,202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
96721-19017

ST200,201,202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 1
90301-06004

ST200,201,202,203..ATM

NO.1 & NO.2

 2
90301-06005

ST200,201,202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
96721-19017

ST200,201,202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=16.8

 1
90301-06004

ST200,201,202,203..ATM

NO.1 & NO.2

 2
90301-06005

ST200,201,202,203..ATM

ﾛﾂｸ ｱﾂﾌﾟ,ID=6.6

 1
Common parts
82821-20210
91611-60614
