ST202-ATPVF (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309-9508)

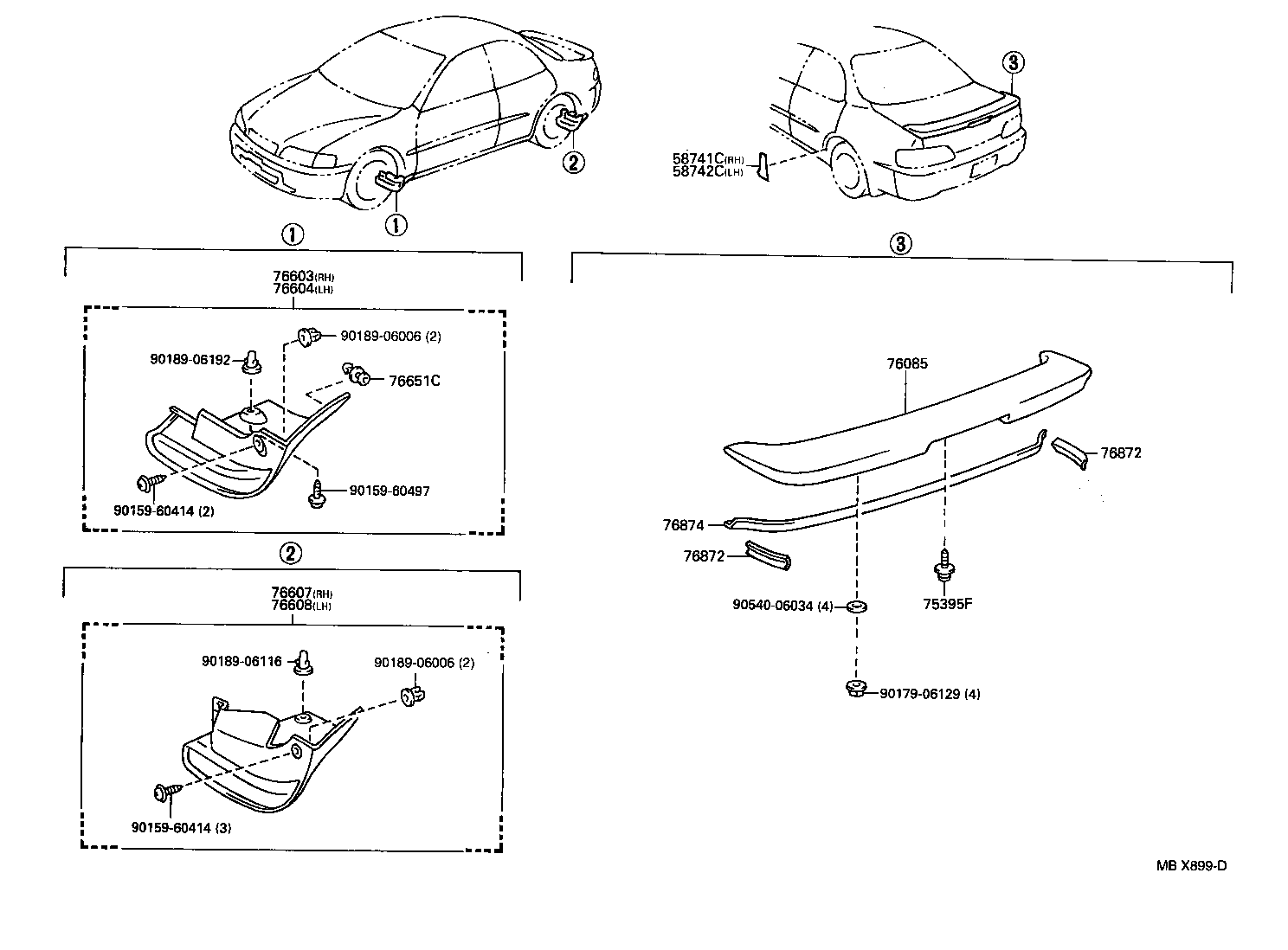

Click highlighted areas on diagram

diagram 58741C 58742C 75395F 76085 76603 76604 76607 76608 76651C 76872 76872 76874 9015960414 9015960414 9015960497 9017906129 9018906006 9018906006 9018906116 9018906192 9054006034
Part # Description Qty Price
58741C - PROTECTOR, QUARTER PANEL, RH
58741-20160

ST20#

 1
58741-20150

ST20#

 1
58742C - PROTECTOR, QUARTER PANEL, LH
58742-20140

ST20#

 1
58742-20150

ST20#

 1
75395F - CLIP, OUTSIDE MOULDING, NO.1
75395-12090

ST20#

 1
76085 - SPOILER SUB-ASSY, REAR
76085-20917

ST20#

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-29175A0

ST20#

SUPER WHITE 2,040

 1
76621-29175G0

ST20#

DK. GREEN MICA,6M1

 1
76621-29175A1

ST20#

WARM GRAY PEARL MICA,046

 1
76621-29175B0

ST20#

LT. GREIGE ME.,1A2

 1
76621-29175D0

ST20#

RED MICA,3K4

 1
76621-29175C0

ST20#

BLACK,202

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-29175B0

ST20#

LT. GREIGE ME.,1A2

 1
76622-29175A1

ST20#

WARM GRAY PEARL MICA,046

 1
76622-29175G0

ST20#

DK. GREEN MICA,6M1

 1
76622-29175D0

ST20#

RED MICA,3K4

 1
76622-29175A0

ST20#

SUPER WHITE 2,040

 1
76622-29175C0

ST20#

BLACK,202

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-29205B0

ST20#

LT. GREIGE ME.,1A2

 1
76625-29205C0

ST20#

BLACK,202

 1
76625-29205A0

ST20#

SUPER WHITE 2,040

 1
76625-29205G0

ST20#

DK. GREEN MICA,6M1

 1
76625-29205A1

ST20#

WARM GRAY PEARL MICA,046

 1
76625-29205D0

ST20#

RED MICA,3K4

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-29205B0

ST20#

LT. GREIGE ME.,1A2

 1
76626-29205A1

ST20#

WARM GRAY PEARL MICA,046

 1
76626-29205A0

ST20#

SUPER WHITE 2,040

 1
76626-29205C0

ST20#

BLACK,202

 1
76626-29205D0

ST20#

RED MICA,3K4

 1
76626-29205G0

ST20#

DK. GREEN MICA,6M1

 1
76651C - RETAINER, FRONT MUDGUARD
76651-12060

ST20#

 2
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-20180

ST20#

 2
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-20180

ST20#

 2
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-20140

ST20#

 1
Common parts
90159-60414
90159-60497
90179-06129
90189-06006
90189-06116
90189-06192
90540-06034
