ST202-ATPVF (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309-9508)

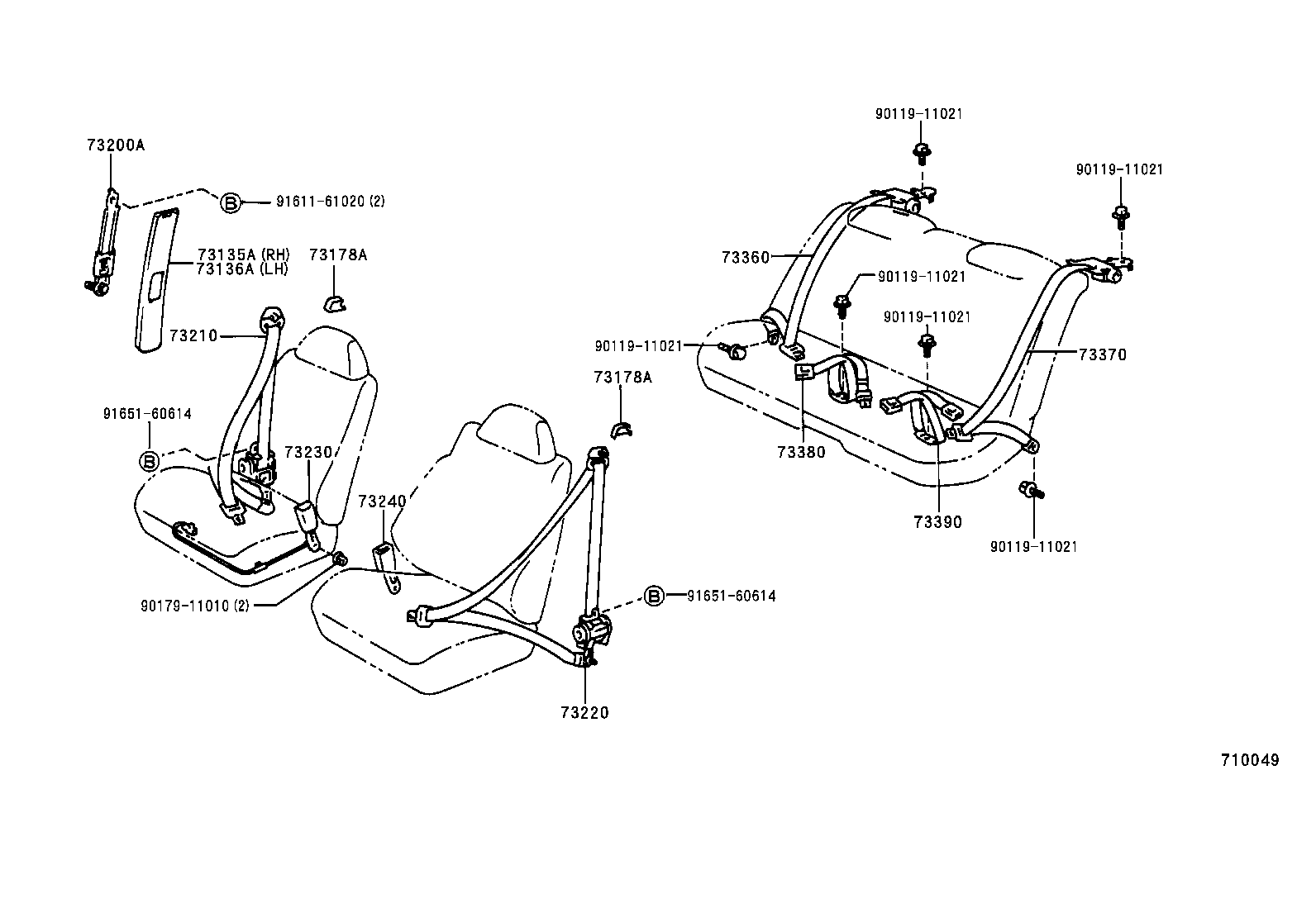

Click highlighted areas on diagram

diagram 73135A 73136A 73178A 73178A 73200A 73210 73220 73230 73240 73360 73370 73380 73390 9011911021 9011911021 9011911021 9011911021 9011911021 9011911021 9017911010 9161161020 9165160614 9165160614
Part # Description Qty Price
73135A - COVER, SHOULDER BELT ANCHOR, RH
73135-12030B1

ST20#

SHADOW GRAY,TRIM1#

 1
73136A - COVER, SHOULDER BELT ANCHOR, LH
73135-12030B1

ST20#

SHADOW GRAY,TRIM1#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-34010B2

ST20#

SHADOW GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-34010B2

ST20#

SHADOW GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-12030B1

ST20#

SHADOW GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-20780B1

ST20#

SHADOW GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-20640B1

ST20#

SHADOW GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-20660B0

ST20#

SHADOW GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-20190B0

ST20#

SHADOW GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-20710B0

ST20#

SHADOW GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-20540B0

ST20#

SHADOW GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-20070B0

ST20#

SHADOW GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-20090B0

ST20#

SHADOW GRAY,TRIM1#

 1
Common parts
90119-11021
90179-11010
91611-61020
91651-60614
