ST202-ATPVF (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

Click highlighted areas on diagram

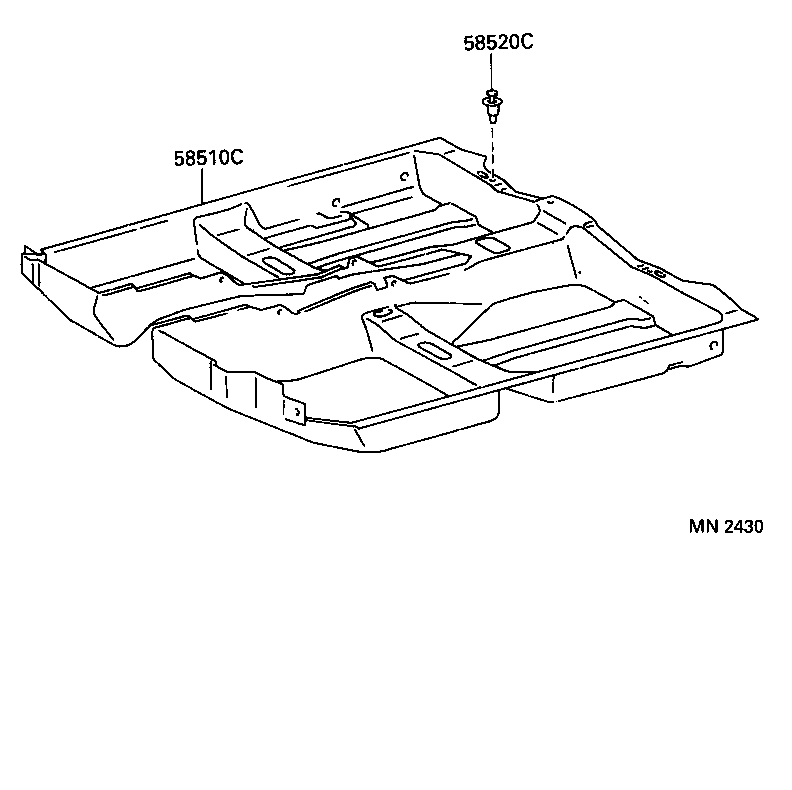

diagram 58510C 58520C
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-2D840B0

ST20#

ｱﾘ(ﾘﾔﾋ-ﾀ),SHADOW GRAY,TRIM1#

 1
58510-2D831B0

ST20#

SHADOW GRAY,TRIM1#

 1
58510-2D841B0

ST20#

ｱﾘ(ﾘﾔﾋ-ﾀ),SHADOW GRAY,TRIM1#

 1
58510-2D830B0

ST20#

SHADOW GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06166C0

ST200,202,203,205..180E,180G,200E,200G,200GT,GT4WD,TR,TRG,TRG4,TRR

BLACK,TRIM1#

 7
