ST202-ATPVF (1993)
Toyota Corona Exiv
(9309-9508)
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B340C0 |
ST200,202..TR,TRX;ST201,203..MTM..TRX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM1# |
1 | ||
| 45100-2B310C0 |
ST200,202,205;ST201,203..MTM 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1# |
1 | ||
| 45100-2B270C0 |
ST200,202..TR,TRX;ST201,203..MTM..TRX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1# |
1 | ||
| 45100-2B360C0 |
ST200,202,205;ST201,203..MTM 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-20480 |
ST200,202..TR,TRX;ST201,203..MTM..TRX ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ) |
1 | ||
| 45105-20500 |
ST200,202,205;ST201,203..MTM ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ) |
1 | ||
| 45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90540-08014 |
ST200,201,202,203..TR,TRX ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ) |
4 | ||
| 90540-08014 |
ST20# ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ) |
3 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B250C0 |
ST200,202..TR,TRX;ST201,203..MTM..TRX ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM1# |
1 | ||
| 45130-2B270C0 |
ST200,202,205;ST201,203..MTM ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM1# |
1 | ||
| 45130-2B290C0 |
ST20# ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM1# |
1 | ||
| 45155 - SPACER, HORN BUTTON CONTACT PLATE | ||||
| 45155-22040 |
ST20# ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ) |
3 | ||
| 45155-22040 |
ST200,201,202,203..TR,TRX ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ) |
4 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45180-20260C0 |
ST200,202..TR,TRX;ST201,203..MTM..TRX ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM1# |
1 | ||
| 45180-20270C0 |
ST200,202,205;ST201,203..MTM ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM1# |
1 | ||
| 45180-20270C0 |
ST200,202;ST201,203..MTM ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ST20# |
1 | ||
| Common parts | ||||
| 90159-50238 | ||||
| 90168-40103 | ||||

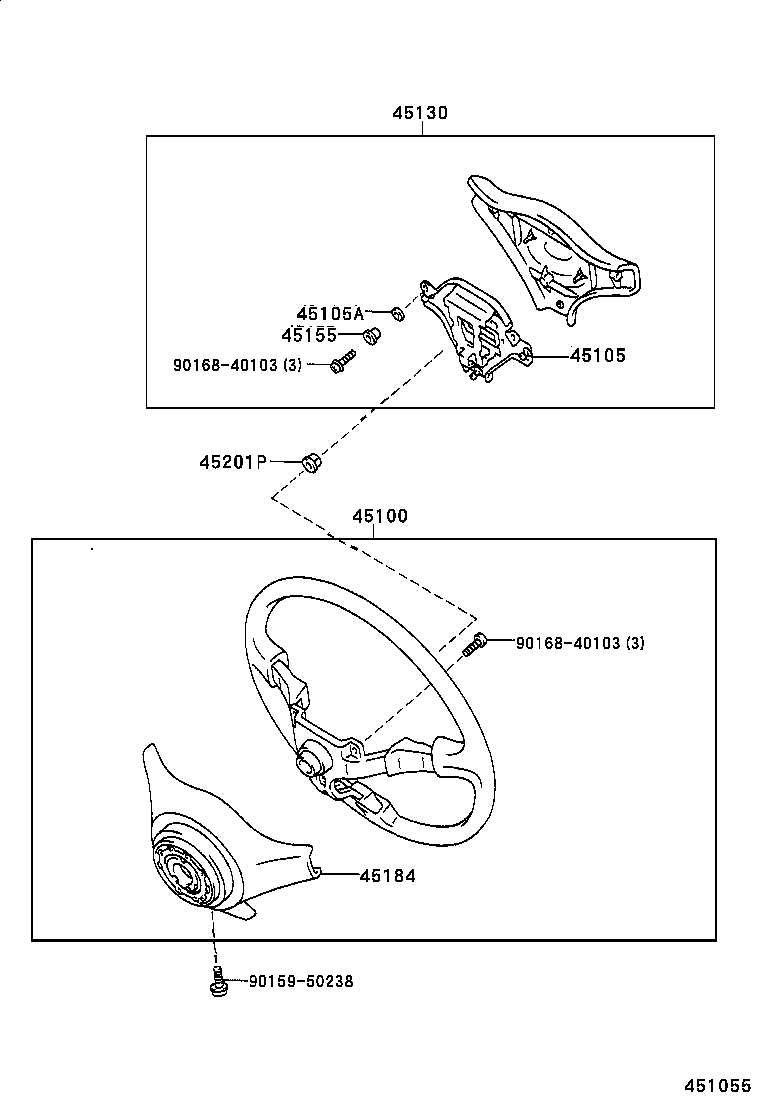

(9309-9508)TR,TRX
4-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B340C0 |
ST200,202..TR,TRX;ST201,203..MTM..TRX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM1# |
1 | ||
| 45100-2B310C0 |
ST200,202,205;ST201,203..MTM 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1# |
1 | ||
| 45100-2B270C0 |
ST200,202..TR,TRX;ST201,203..MTM..TRX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1# |
1 | ||
| 45100-2B360C0 |
ST200,202,205;ST201,203..MTM 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-20480 |
ST200,202..TR,TRX;ST201,203..MTM..TRX ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ) |
1 | ||
| 45105-20500 |
ST200,202,205;ST201,203..MTM ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ) |
1 | ||
| 45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90540-08014 |
ST200,201,202,203..TR,TRX ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ) |
4 | ||
| 90540-08014 |
ST20# ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ) |
3 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B250C0 |
ST200,202..TR,TRX;ST201,203..MTM..TRX ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM1# |
1 | ||
| 45130-2B270C0 |
ST200,202,205;ST201,203..MTM ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM1# |
1 | ||
| 45130-2B290C0 |
ST20# ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM1# |
1 | ||
| 45155 - SPACER, HORN BUTTON CONTACT PLATE | ||||
| 45155-22040 |
ST20# ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ) |
3 | ||
| 45155-22040 |
ST200,201,202,203..TR,TRX ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ) |
4 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45180-20260C0 |
ST200,202..TR,TRX;ST201,203..MTM..TRX ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM1# |
1 | ||
| 45180-20270C0 |
ST200,202,205;ST201,203..MTM ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM1# |
1 | ||
| 45180-20270C0 |
ST200,202;ST201,203..MTM ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ST20# |
1 | ||
| Common parts | ||||
| 90159-50238 | ||||
| 90168-40103 | ||||

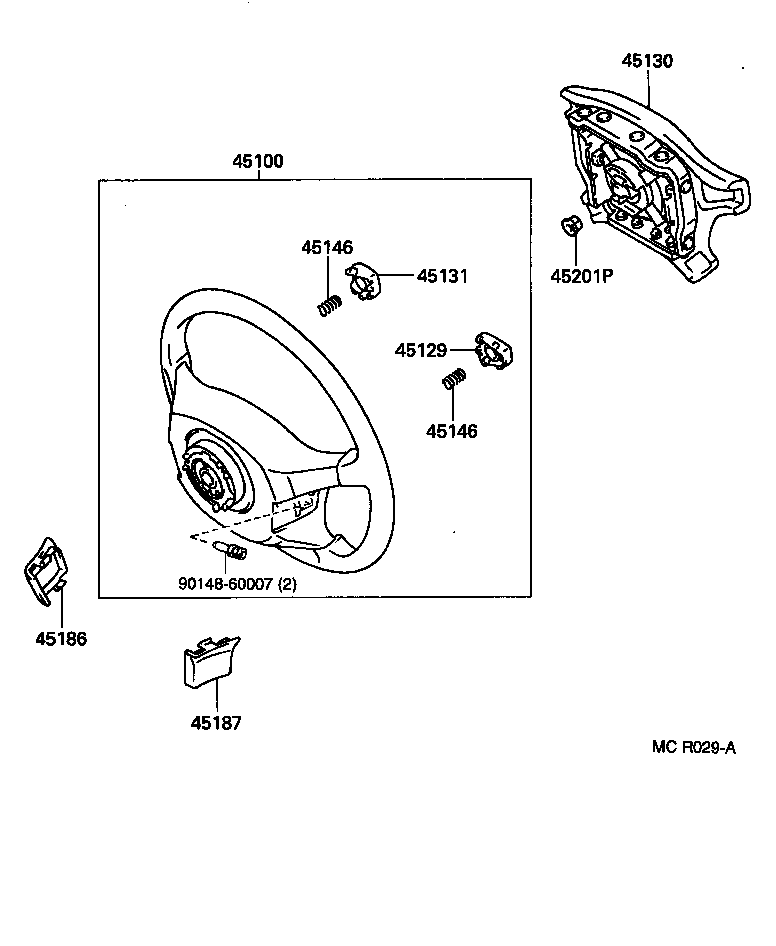

(9309-9606)
ｱﾘ(ｷｶｲｼｷ*80,ｳﾝﾃﾝｾｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2B340C0 |
ST200,202..TR,TRX;ST201,203..MTM..TRX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM1# |
1 | ||
| 45100-2B310C0 |
ST200,202,205;ST201,203..MTM 3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1# |
1 | ||
| 45100-2B270C0 |
ST200,202..TR,TRX;ST201,203..MTM..TRX 4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1# |
1 | ||
| 45100-2B360C0 |
ST200,202,205;ST201,203..MTM 4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1# |
1 | ||
| 45129 - BUTTON, HORN, NO.2 | ||||
| 45129-20130C0 |
ST20# BLACK,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B250C0 |
ST200,202..TR,TRX;ST201,203..MTM..TRX ｱﾘ(4-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM1# |
1 | ||
| 45130-2B270C0 |
ST200,202,205;ST201,203..MTM ｱﾘ(3-SPOKE ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ),BLACK,TRIM1# |
1 | ||
| 45130-2B290C0 |
ST20# ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM1# |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-20250C0 |
ST20# BLACK,TRIM1# |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20260 |
ST20# |
2 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-20260 |
ST20# |
2 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-20050C0 |
ST20# BLACK,TRIM1# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-20040C0 |
ST20# ｱﾘ(*80;ｳﾝﾃﾝｾｷ),BLACK,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ST20# |
1 | ||
| Common parts | ||||
| 90148-60007 | ||||
