ST202-ATPVF (1993)
Toyota Corona Exiv
(9309- )ATM
A140E,A540H

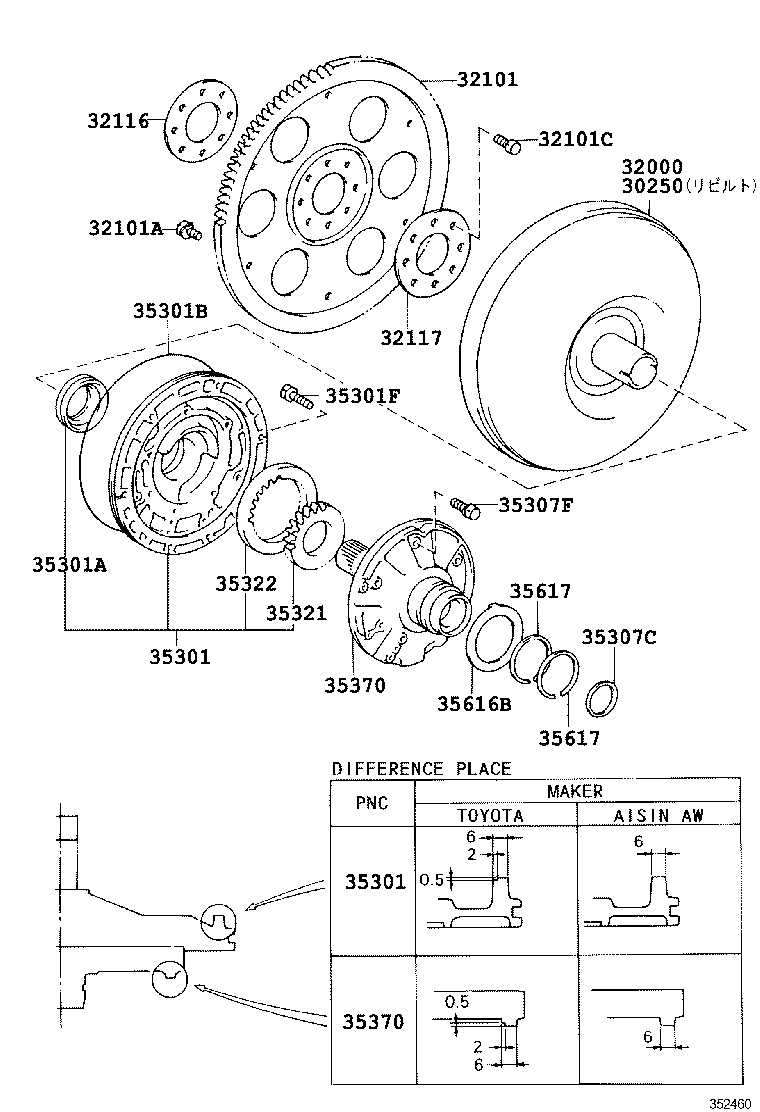

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30250 - CONVERTER ASSY, TORQUE, REBUILT | ||||
| 30250-20190 |
ST202,203..ATM |
1 | ||
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-20190 |
ST202,203..ATM |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-32051 |
ST200,201,202,203..ATM..(180E,180G,200E,200G,TR,TRR,TRX) |
1 | ||
| 32101-32050 |
ST200,201,202,203..ATM..(TR,TRR,TRX) |
1 | ||
| 32101-20081 |
ST202,205..ATM..(200GT,GT4WD,TRG) |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-08113 |
ST20#..ATM..(180E,180G,200E,200G,200GT,GT4WD,TR,TRG,TRR,TRX) *8−1.25PX12−8.4,ｵﾘｰﾌﾞ ｸﾞﾘｰﾝ |
1 | ||
| 90119-08498 |
ST20#..ATM..(180E,180G,200E,200G,200GT,GT4WD,TR,TRG,TRR,TRX) *8−1.25PX12−8,ﾌﾞﾗｯｸ |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90109-10054 |
ST200,201,202,203..ATM..(180E,180G,200E,200G,TR,TRR,TRX) *10−1.25PX22−16 |
8 | ||
| 90105-12184 |
ST202,205..ATM..(200GT,GT4WD,TRG,TRG4) |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-20050 |
ST202,205..ATM..(200GT,GT4WD,TRG,TRG4) |
1 | ||
| 32116-32011 |
ST200,201,202,203..ATM..(180E,180G,200E,200G,TR,TRR,TRX) |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-32010 |
ST200,201,202,203..ATM..(180E,180G,200E,200G,TR,TRR,TRX) |
1 | ||
| 32117-20060 |
ST202,205..ATM..(200GT,GT4WD,TRG,TRG4) |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-32010 |
ST200,201,202,203..ATM AISIN AW |
1 | ||
| 35035-32020 |
ST200,201,202,203..ATM TOYOTA |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-32010 |
ST200,201,202,203..ATM AISIN AW |
1 | ||
| 35035-32020 |
ST200,201,202,203..ATM TOYOTA |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38020 |
ST20#..ATM |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99024 |
ST20#..ATM |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08050 |
ST20#..ATM *8−1.25PX28−28 |
7 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-32020 |
ST20#..ATM 厚さ=0.8 |
1 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90119-06180 |
ST20#..ATM |
11 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-12080 |
ST200,201,202,203..ATM 厚さ=9.450−9.459 |
1 | ||
| 35321-12100 |
ST200,201,202,203..ATM 厚さ=9.471−9.480 |
1 | ||
| 35321-12070 |
ST200,201,202,203..ATM 厚さ=9.440−9.449 |
1 | ||
| 35321-12110 |
ST200,201,202,203..ATM 厚さ=9.481−9.490 |
1 | ||
| 35321-12090 |
ST200,201,202,203..ATM 厚さ=9.460−9.470 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-12090 |
ST200,201,202,203..ATM 厚さ=9.471−9.480 |
1 | ||
| 35322-12060 |
ST200,201,202,203..ATM 厚さ=9.440−9.449 |
1 | ||
| 35322-12080 |
ST200,201,202,203..ATM 厚さ=9.460−9.470 |
1 | ||
| 35322-12100 |
ST200,201,202,203..ATM 厚さ=9.481−9.490 |
1 | ||
| 35322-12070 |
ST200,201,202,203..ATM 厚さ=9.450−9.459 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-32050 |
ST200,201,202,203..ATM TOYOTA |
1 | ||
| 35370-12040 |
ST200,201,202,203..ATM AISIN AW |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-32050 |
ST200,201,202,203..ATM TOYOTA |
1 | ||
| 35370-12040 |
ST200,201,202,203..ATM AISIN AW |
1 | ||
| 35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT) | ||||
| 35616-32010 |
ST20#..ATM |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32011 |
ST20#..ATM |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32011 |
ST20#..ATM |
2 | ||
