Toyota Corona exiv ST202 ACCELERATOR LINK

ST202-ATPVF (1995)

Toyota Corona Exiv

Production Aug 1995 - Apr 1998

Engine 3SGE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9508- )200GT,GT4WD

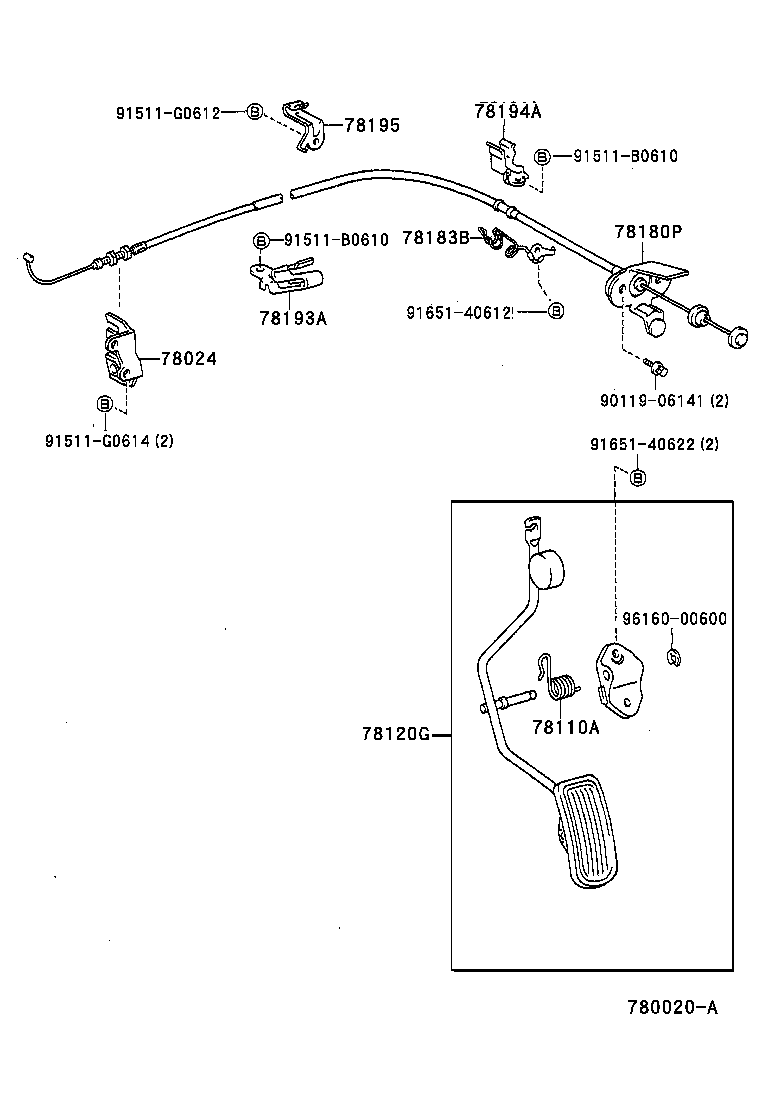

Click highlighted areas on diagram

Part #	Description	Period	Qty
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-20090	ST200,201,202,203..180E,180G,200E,200G,TR,TRR,TRX	09/1993 - 06/1996	1
78024-44020	ST200,202,203..180E,180G,200E,200G	06/1996 - 12/2999	1
78024-20140	ST202,203..ATM..(200E,200G,TRR,TRX) ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	09/1993 - 06/1996	1
78024-88460	ST202,205..200GT,GT4WD,TRG,TRG4	09/1993 - 12/2999	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18048	ST20#..ATM	09/1993 - 12/2999	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20600	ST20#..ATM	09/1993 - 08/1995	1
78120-20640	ST20#..ATM	08/1995 - 12/2999	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2D130	ST202,205..200GT,GT4WD	08/1995 - 12/2999	1
78180-2D420	ST202,203..ATM..(200E,200G) ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 06/1996	1
78180-2D400	ST200,202,203..180E,180G,200E,200G	08/1995 - 06/1996	1
78180-2D640	ST200,202,203..180E,180G,200E,200G	06/1996 - 12/2999	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20310	ST20#	09/1993 - 01/1994	1
78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3
78193-88460	ST202,205..200GT,GT4WD,TRG,TRG4	09/1993 - 12/2999	1
78194A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.4
78194-88460	ST202,205..ATM..(200GT,GT4WD,TRG,TRG4)	09/1993 - 12/2999	1
78195 - BRACKET, ACCELERATOR LINK
78195-88460	ST202,205..ATM..(200GT,GT4WD,TRG,TRG4)	09/1993 - 12/2999	1
Common parts
90119-06141
91511-B0610
91511-G0612
91511-G0614
91651-40612
91651-40622
96160-00600

(9508- )ATM..180E,180G,200E,200G

Click highlighted areas on diagram

Part #	Description	Period	Qty
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-20090	ST200,201,202,203..180E,180G,200E,200G,TR,TRR,TRX	09/1993 - 06/1996	1
78024-44020	ST200,202,203..180E,180G,200E,200G	06/1996 - 12/2999	1
78024-20140	ST202,203..ATM..(200E,200G,TRR,TRX) ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	09/1993 - 06/1996	1
78024-88460	ST202,205..200GT,GT4WD,TRG,TRG4	09/1993 - 12/2999	1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-20090	ST200,201,202,203..180E,180G,200E,200G,TR,TRR,TRX	09/1993 - 06/1996	1
78024-44020	ST200,202,203..180E,180G,200E,200G	06/1996 - 12/2999	1
78024-20140	ST202,203..ATM..(200E,200G,TRR,TRX) ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	09/1993 - 06/1996	1
78024-88460	ST202,205..200GT,GT4WD,TRG,TRG4	09/1993 - 12/2999	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18048	ST20#..ATM	09/1993 - 12/2999	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20600	ST20#..ATM	09/1993 - 08/1995	1
78120-20640	ST20#..ATM	08/1995 - 12/2999	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2D130	ST202,205..200GT,GT4WD	08/1995 - 12/2999	1
78180-2D420	ST202,203..ATM..(200E,200G) ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 06/1996	1
78180-2D400	ST200,202,203..180E,180G,200E,200G	08/1995 - 06/1996	1
78180-2D640	ST200,202,203..180E,180G,200E,200G	06/1996 - 12/2999	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2D130	ST202,205..200GT,GT4WD	08/1995 - 12/2999	1
78180-2D420	ST202,203..ATM..(200E,200G) ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	08/1995 - 06/1996	1
78180-2D400	ST200,202,203..180E,180G,200E,200G	08/1995 - 06/1996	1
78180-2D640	ST200,202,203..180E,180G,200E,200G	06/1996 - 12/2999	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20310	ST20#	09/1993 - 01/1994	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20310	ST20#	09/1993 - 01/1994	1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-20150	ST202,203..ATM..(200E,200G,TRR,TRX)	09/1993 - 06/1996	1
Common parts
90119-06141
91511-B0814
91621-B0612
91651-40612
91651-40622
96160-00600

ST202-ATPVF (1995)

(9508- )200GT,GT4WD

(9508- )ATM..180E,180G,200E,200G
