ST202-ATPVF (1995)
Toyota Corona Exiv
ILLUST NO. 2 OF 2(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20290B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16230B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-14120C1 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-14140C1 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 71812-20260B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-16190B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20130B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-20120B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20120B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-20130B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20210 |
ST20# |
1 | ||
| 72011-20240 |
ST20# |
1 | ||
| 72011-20241 |
ST20# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20270 |
ST20# |
1 | ||
| 72012-20301 |
ST20# |
1 | ||
| 72012-20300 |
ST20# |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20210 |
ST20# |
1 | ||
| 72021-20211 |
ST20# |
1 | ||
| 72021-20180 |
ST20# |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20240 |
ST20# |
1 | ||
| 72022-20270 |
ST20# |
1 | ||
| 72022-20271 |
ST20# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20150 |
ST20# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-20070 |
ST20# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
ST20# |
2 | ||
| 72125-10010 |
ST20# |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
ST20# |
2 | ||
| 72125-10010 |
ST20# |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
ST20# |
2 | ||
| 72125-10010 |
ST20# |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
ST20# |
2 | ||
| 72125-10010 |
ST20# |
2 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72158-20030 |
ST20# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20020 |
ST20# |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20020 |
ST20# |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20020 |
ST20# |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20020 |
ST20# |
2 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20030 |
ST200,202,205 内側 |
1 | ||
| 72129-20040 |
ST20# 外側 |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20030 |
ST200,202,205 内側 |
1 | ||
| 72129-20040 |
ST20# 外側 |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20030 |
ST200,202,205 内側 |
1 | ||
| 72129-20040 |
ST20# 外側 |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20030 |
ST200,202,205 内側 |
1 | ||
| 72129-20040 |
ST20# 外側 |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-20100 |
ST20# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-20100 |
ST20# |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-20040 |
ST20# |
1 | ||
| 72345B - PIPE, RECLINING CONNECTING | ||||
| 72345-20040 |
ST20# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12130C0 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 72525-16010B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-20070B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-20110B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12130C0 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 72526-16010B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-20040P0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90520-01006 | ||||
| 90520-01274 | ||||
| 91511-60816 | ||||
| 91515-81025 | ||||
| 93560-14008 | ||||
| 96160-00600 | ||||

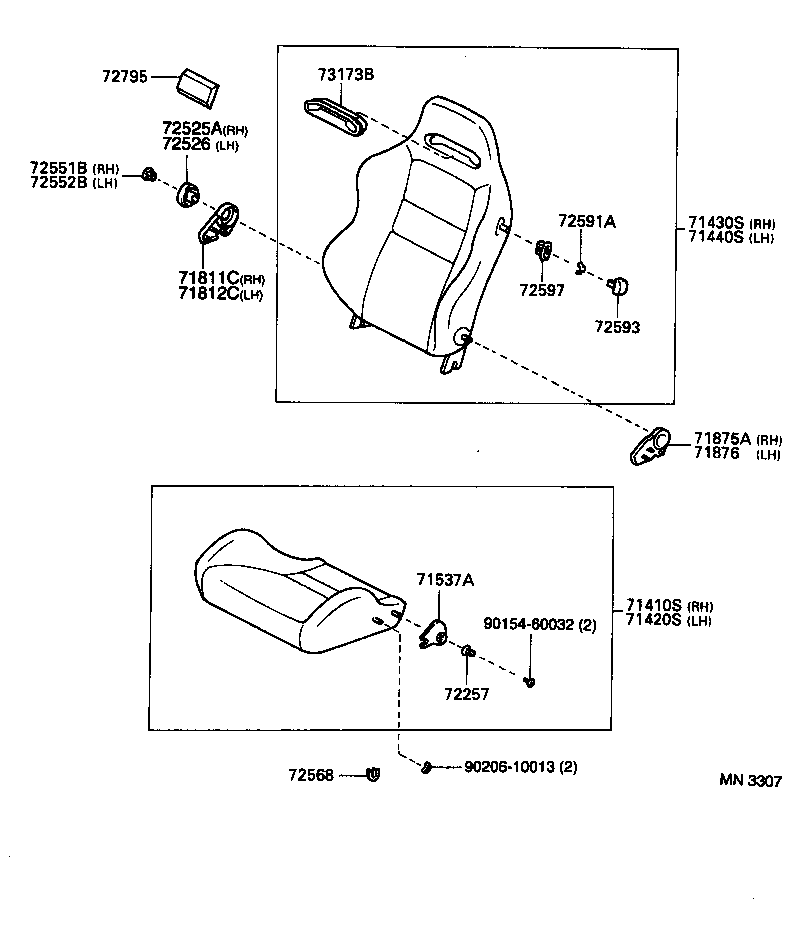

ILLUST NO. 1 OF 2(9511-9603)200GT
ﾚｶﾛｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1D620C2 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 71410-2H420B0 |
ST202..200GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-2H410B0 |
ST200,202,203..180G,200G ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2H080B0 |
ST200,202,203..180G,200G ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1D620C2 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 71420-2H090B0 |
ST202..200GT ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1D390C2 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 71430-2H390B0 |
ST202..200GT ***,SHADOW GRAY,TRIM1#,製造工場NO.M31 |
1 | ||
| 71430-2H370B0 |
ST200,202,203..180G,200G ***,SHADOW GRAY,TRIM1#,製造工場NO.M31 |
1 | ||
| 71430-2H380B0 |
ST202..200GT ***,SHADOW GRAY,TRIM1#,製造工場NO.A51−A54 |
1 | ||
| 71430-2H360B0 |
ST200,202,203..180G,200G ***,SHADOW GRAY,TRIM1#,製造工場NO.A51−A54 |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2G300B0 |
ST202..200GT ***,SHADOW GRAY,TRIM1#,製造工場NO.A51−A54 |
1 | ||
| 71440-2G290B0 |
ST200,202,203..180G,200G ***,SHADOW GRAY,TRIM1#,製造工場NO.M31 |
1 | ||
| 71440-2G560B0 |
ST202..200GT ***,SHADOW GRAY,TRIM1#,製造工場NO.M31 |
1 | ||
| 71440-2G280B0 |
ST200,202,203..180G,200G ***,SHADOW GRAY,TRIM1#,製造工場NO.A51−A54 |
1 | ||
| 71440-1D410C2 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-10010C1 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-14130C1 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-14150C1 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-17010C0 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 71875-20040B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-17010C0 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 71876-20040B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72257 - STRIKER, FRONT SEAT LOCK | ||||
| 72257-10010C0 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12130C0 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 72525-16010B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-20070B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-20110B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12130C0 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 72526-16010B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-12080C0 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 72552B - COVER, RECLINING HINGE, LH | ||||
| 72551-12080C0 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 72568 - PLATE, RECLINING BOLT LOCK | ||||
| 72568-17010 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ |
4 | ||
| 72591A - LEVER, RECLINING REMOTE CONTROL | ||||
| 72591-10030 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ |
4 | ||
| 72593 - KNOB, RECLINING REMOTE CONTROL LEVER | ||||
| 72593-12010C1 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
4 | ||
| 72597 - BEZEL, RECLINING REMOTE CONTROL | ||||
| 72597-12010C1 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
4 | ||
| 72795 - PAD, LUMBAR SUPPORT | ||||
| 72795-12030 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ |
1 | ||
| 73173B - COVER, FRONT SEAT BELT HOLE | ||||
| 73173-14030C0 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
4 | ||
| Common parts | ||||
| 90154-60032 | ||||
| 90206-10013 | ||||

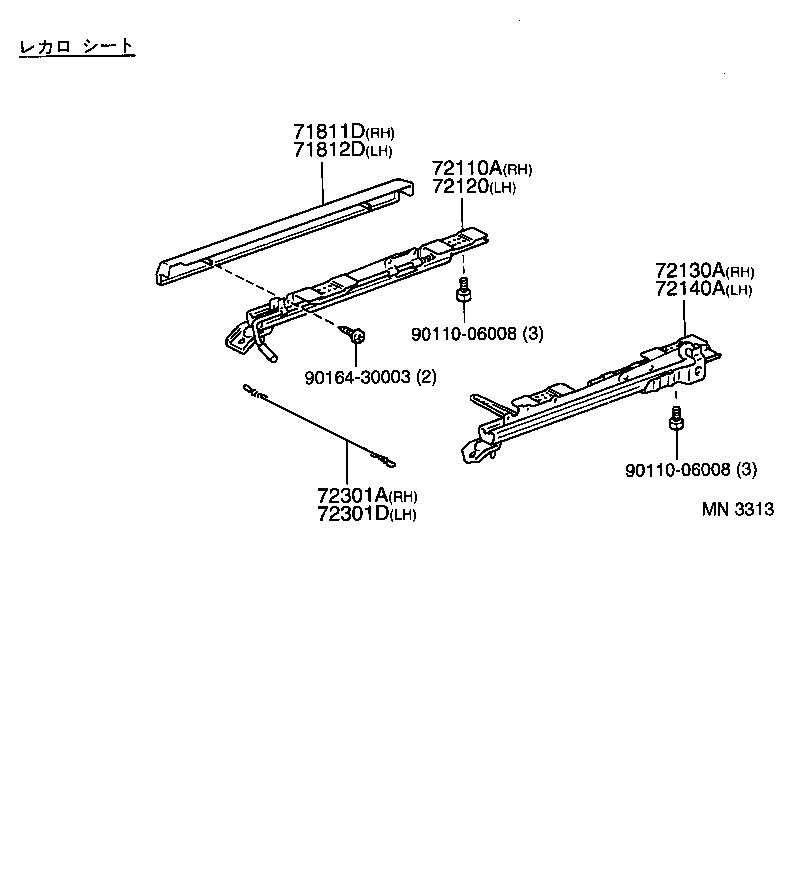

ILLUST NO. 2 OF 2(9511-9603)200GT
ﾚｶﾛｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20290B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16230B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-14120C1 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-14140C1 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ,BLACK,TRIM1# |
1 | ||
| 71812-20260B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-16190B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-20490 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-20500 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-20430 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-20370 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-20280 |
ST20# |
1 | ||
| 72301-20220 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-20280 |
ST20# |
1 | ||
| 72301-20220 |
ST202..200GT JTCC ﾊﾞ-ｼﾞﾖﾝ |
1 | ||
| Common parts | ||||
| 90110-06008 | ||||
| 90164-30003 | ||||
