ST202-ATPGK (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

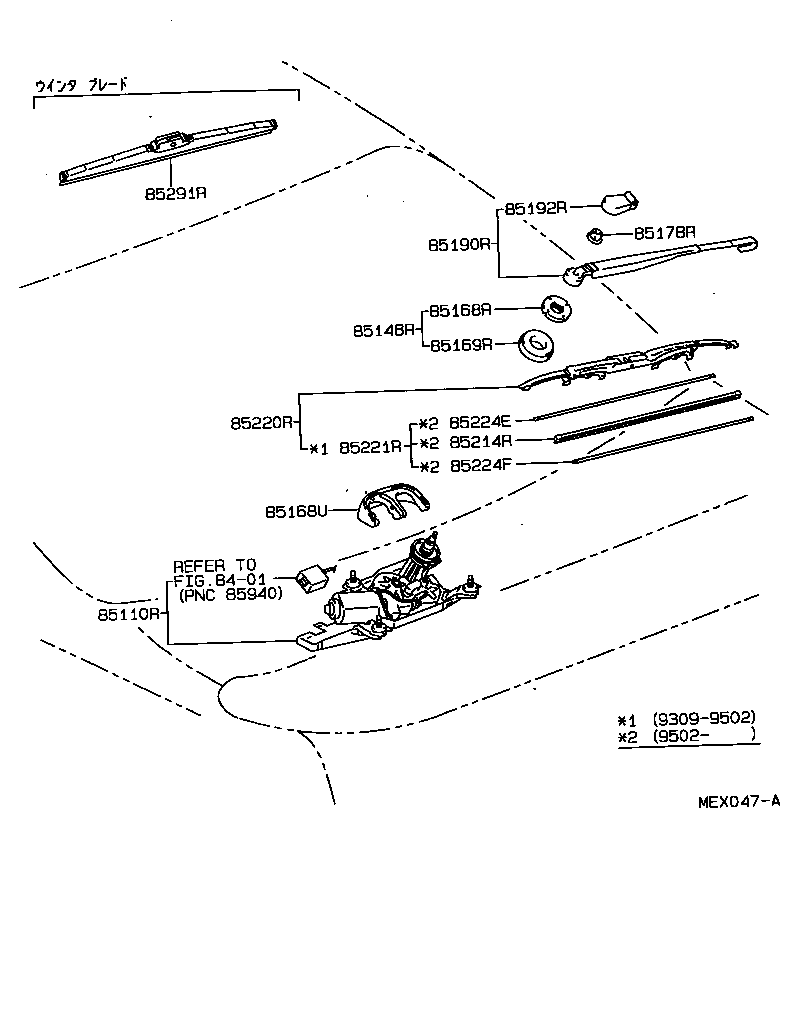

Click highlighted areas on diagram

diagram 8401 85110R 85148R 85168R 85168U 85169R 85178R 85190R 85192R 85214R 85220R 85221R 85224E 85224F 85291R
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-20750

ST20#

 1
85148R - NUT, W/WASHER PACKING, REAR WIPER LINK PIVOT
85148-12020

ST20#

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90179-22013

ST20#

 1
85168U - COVER, REAR WIPER
85168-20690P0

ST20#

SHADOW GRAY,TRIM1#

 1
85168-20690K0

ST200,201,202,203..TRX

TAUPE,TRIM9#

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
90210-28002

ST20#

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

ST20#

 1
85190R - ARM ASSY, REAR WIPER
85241-20060

ST20#

 1
85192R - COVER, REAR WIPER ARM
85192-13060

ST20#

 1
85214R - RUBBER, REAR WIPER
85214-22360

ST20#

 1
85220R - BLADE ASSY, REAR WIPER
85242-22040

ST20#

 1
85221R - BLADE, REAR WIPER
85243-22030

ST20#

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-60050

ST20#

 1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-60050

ST20#

 1
85291R - BLADE,REAR WIPER, WINTER
85291-60020

ST20#

 1
Linked diagrams
8401
