ST202-ATPGK (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

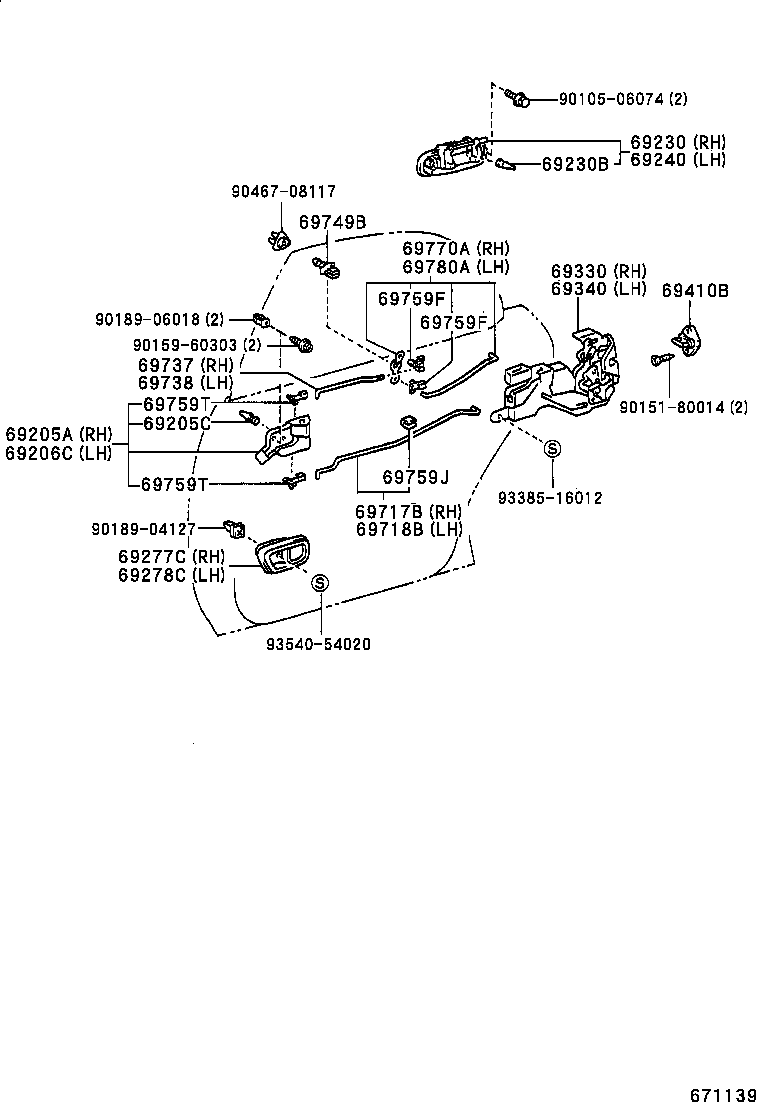

Click highlighted areas on diagram

diagram 69205A 69205C 69206C 69230 69230B 69240 69277C 69278C 69330 69340 69410B 69717B 69718B 69737 69738 69749B 69759F 69759F 69759J 69759T 69759T 69770A 69780A 9010506074 9015180014 9015960303 9018904127 9018906018 9046708117 9338516012 9354054020
Part # Description Qty Price
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-20140B0

ST20#

SHADOW GRAY,TRIM1#

 1
69205-20140K0

ST200,201,202,203..TRX

TAUPE,TRIM9#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04014

ST20#

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-20140K0

ST200,201,202,203..TRX

TAUPE,TRIM9#

 1
69206-20140B0

ST20#

SHADOW GRAY,TRIM1#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-20240A0

ST20#

SUPER WHITE 2,040

 1
69230-20240A1

ST20#

WARM GRAY PEARL MICA,046

 1
69230-20240B1

ST200,202..TRX

TR-X ﾘﾐﾃﾂﾄﾞ,BLUISH SILVER ME.,1A0

 1
69230-20240D0

ST20#

RED MICA,3K4

 1
69230-20240B0

ST20#

LT. GREIGE ME,1A2

 1
69230-20240G0

ST20#

DK. GREEN MICA,6M1

 1
69230-20240C0

ST20#

BLACK,202

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-04014

ST20#

 4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-20240C0

ST20#

BLACK,202

 1
69240-20240D0

ST20#

RED MICA,3K4

 1
69240-20240G0

ST20#

DK. GREEN MICA,6M1

 1
69240-20240B0

ST20#

LT. GREIGE ME,1A2

 1
69240-20240B1

ST200,202..TRX

TR-X ﾘﾐﾃﾂﾄﾞ,BLUISH SILVER ME.,1A0

 1
69240-20240A0

ST20#

SUPER WHITE 2,040

 1
69240-20240A1

ST20#

WARM GRAY PEARL MICA,046

 1
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-20170K0

ST200,201,202,203..TRX

TAUPE,TRIM9#

 1
69277-20170B0

ST20#

SHADOW GRAY,TRIM1#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69278-20170B0

ST20#

SHADOW GRAY,TRIM1#

 1
69278-20170K0

ST200,201,202,203..TRX

TAUPE,TRIM9#

 1
69330 - LOCK ASSY, REAR DOOR, RH
69050-20370

ST20#..TRG,TRG4,TRX

 1
69050-20360

ST200,202,203..TR,TRR

 1
69050-20370

ST20#..TRG,TRG4,TRR,TRX

 1
69340 - LOCK ASSY, REAR DOOR, LH
69060-20360

ST200,202,203..TR,TRR

 1
69060-20370

ST20#..TRG,TRG4,TRR,TRX

 1
69060-20370

ST20#..TRG,TRG4,TRX

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-16010

ST20#

 2
69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-20170

ST20#

 1
69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-20170

ST20#

 1
69737 - LINK, REAR DOOR INSIDE LOCKING, RH
69731-20100

ST20#

 1
69738 - LINK, REAR DOOR INSIDE LOCKING, LH
69732-20100

ST20#

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32030

ST20#

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24090

ST20#

ﾛﾜ-,ﾌﾞﾗｳﾝ

 1
69759-20410

ST20#

ｱﾂﾊﾟ,ｲｴﾛ-

 2
69759-50040

ST20#

ﾎﾜｲﾄ

 2
69759-24080

ST20#

ﾛﾜ-,ｲｴﾛ-

 1
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24090

ST20#

ﾛﾜ-,ﾌﾞﾗｳﾝ

 1
69759-20410

ST20#

ｱﾂﾊﾟ,ｲｴﾛ-

 2
69759-50040

ST20#

ﾎﾜｲﾄ

 2
69759-24080

ST20#

ﾛﾜ-,ｲｴﾛ-

 1
69759J - SILENCER, DOOR LOCK LINK
69759-20400

ST20#

 2
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-14050

ST20#

ﾎﾜｲﾄ

 2
69759-24070

ST20#

ﾌﾞﾙｰ

 2
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-14050

ST20#

ﾎﾜｲﾄ

 2
69759-24070

ST20#

ﾌﾞﾙｰ

 2
69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH
69770-20110

ST20#

 1
69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH
69780-20110

ST20#

 1
Common parts
90105-06074
90151-80014
90159-60303
90189-04127
90189-06018
90467-08117
93385-16012
93540-54020
