ST202-ATPGK (1993)
Toyota Corona Exiv
(9309- )

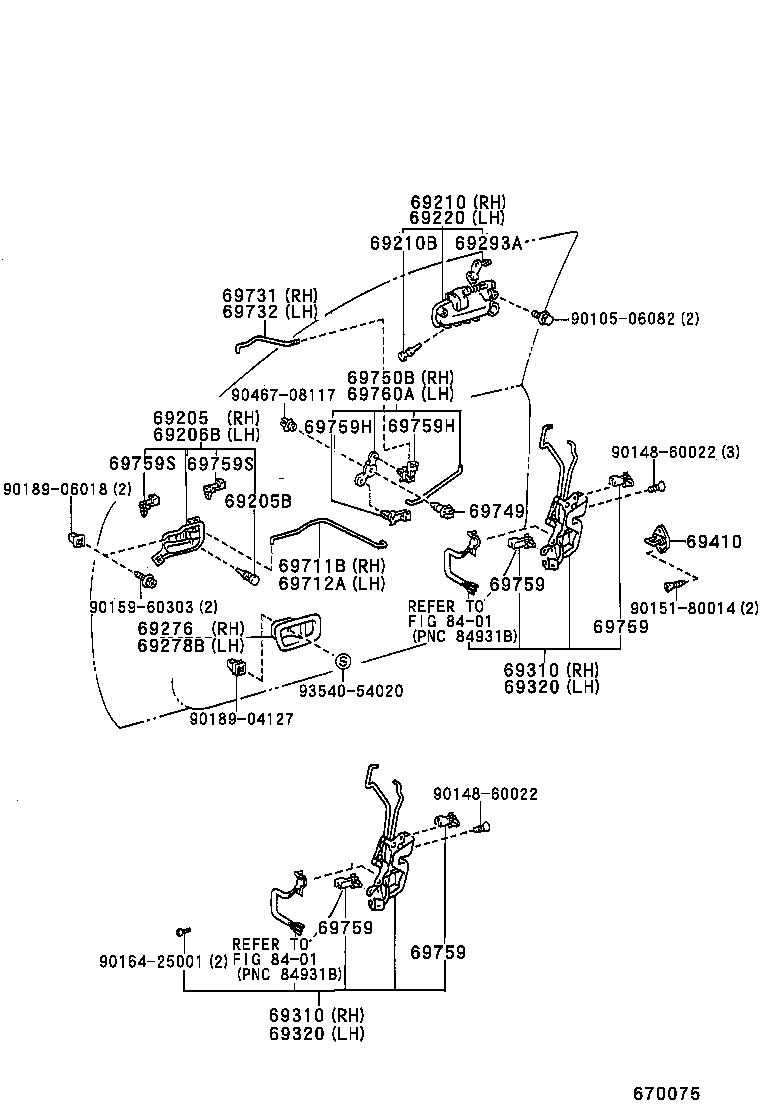

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-20140K0 |
ST200,201,202,203..TRX TAUPE,TRIM9# |
1 | ||
| 69205-20140B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
ST20# |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-20140K0 |
ST200,201,202,203..TRX TAUPE,TRIM9# |
1 | ||
| 69206-20140B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-20320B0 |
ST20# LT. GREIGE ME.,1A2 |
1 | ||
| 69210-20320B1 |
ST200,202..TRX TR-X ﾘﾐﾃﾂﾄﾞ,BLUISH SILVER ME.,1A0 |
1 | ||
| 69210-20320A1 |
ST20# WARM GRAY PEARL MICA,046 |
1 | ||
| 69210-20320D0 |
ST20# RED MICA,3K4 |
1 | ||
| 69210-20320A0 |
ST20# SUPER WHITE 2,040 |
1 | ||
| 69210-20320G0 |
ST20# DK. GREEN MICA,6M1 |
1 | ||
| 69210-20320C0 |
ST20# BLACK,202 |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
ST20# |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-20340B1 |
ST200,202..TRX TR-X ﾘﾐﾃﾂﾄﾞ,BLUISH SILVER ME.,1A0 |
1 | ||
| 69220-20340D0 |
ST20# RED MICA,3K4 |
1 | ||
| 69220-20340B0 |
ST20# LT. GREIGE ME.,1A2 |
1 | ||
| 69220-20340G0 |
ST20# DK. GREEN MICA,6M1 |
1 | ||
| 69220-20340C0 |
ST20# BLACK,202 |
1 | ||
| 69220-20340A0 |
ST20# SUPER WHITE 2,040 |
1 | ||
| 69220-20340A1 |
ST20# WARM GRAY PEARL MICA,046 |
1 | ||
| 69276 - BEZEL, FRONT DOOR INSIDE HANDLE | ||||
| 69277-20170K0 |
ST200,201,202,203..TRX TAUPE,TRIM9# |
1 | ||
| 69277-20170B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-20170K0 |
ST200,201,202,203..TRX TAUPE,TRIM9# |
1 | ||
| 69278-20170B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
ST20# 右側 |
1 | ||
| 69293-12040 |
ST20# 左側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-20580 |
ST20# |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-20580 |
ST20# |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-20640 |
ST200,202,203..TR,TRR |
1 | ||
| 69040-20650 |
ST20#..TRG,TRG4,TRX |
1 | ||
| 69040-20650 |
ST20#..TRG,TRG4,TRR,TRX |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-20640 |
ST200,202,203..TR,TRR |
1 | ||
| 69040-20650 |
ST20#..TRG,TRG4,TRX |
1 | ||
| 69040-20650 |
ST20#..TRG,TRG4,TRR,TRX |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
ST20# |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-20210 |
ST20# |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-20210 |
ST20# |
1 | ||
| 69731 - LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH | ||||
| 69731-20100 |
ST20# |
1 | ||
| 69732 - LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH | ||||
| 69732-20100 |
ST20# |
1 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32030 |
ST20# |
2 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-20070 |
ST20# |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24050 |
ST20# ｸﾞﾘｰﾝ |
2 | ||
| 69759-24060 |
ST20# ｸﾞﾚｰ |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24060 |
ST20# ｸﾞﾚｰ |
2 | ||
| 69759-24050 |
ST20# ｸﾞﾘｰﾝ |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24060 |
ST20# ｸﾞﾚｰ |
2 | ||
| 69759-24050 |
ST20# ｸﾞﾘｰﾝ |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-24060 |
ST20# ｸﾞﾚｰ |
2 | ||
| 69759-24050 |
ST20# ｸﾞﾘｰﾝ |
2 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-24060 |
ST20# ｸﾞﾚｰ |
1 | ||
| 69759-50040 |
ST20# ﾎﾜｲﾄ |
2 | ||
| 69759-24050 |
ST20# ｸﾞﾘｰﾝ |
1 | ||
| 69759-20410 |
ST20# ｲｴﾛｰ |
2 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-24060 |
ST20# ｸﾞﾚｰ |
1 | ||
| 69759-50040 |
ST20# ﾎﾜｲﾄ |
2 | ||
| 69759-24050 |
ST20# ｸﾞﾘｰﾝ |
1 | ||
| 69759-20410 |
ST20# ｲｴﾛｰ |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-14050 |
ST20# ﾋﾟﾝｸ |
2 | ||
| 69759-24070 |
ST20# ｲｴﾛｰ |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-14050 |
ST20# ﾋﾟﾝｸ |
2 | ||
| 69759-24070 |
ST20# ｲｴﾛｰ |
2 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-20070 |
ST20# |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90148-60022 | ||||
| 90151-80014 | ||||
| 90159-60303 | ||||
| 90164-25001 | ||||
| 90189-04127 | ||||
| 90189-06018 | ||||
| 90467-08117 | ||||
| 93540-54020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
