ST202-ATPGK (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

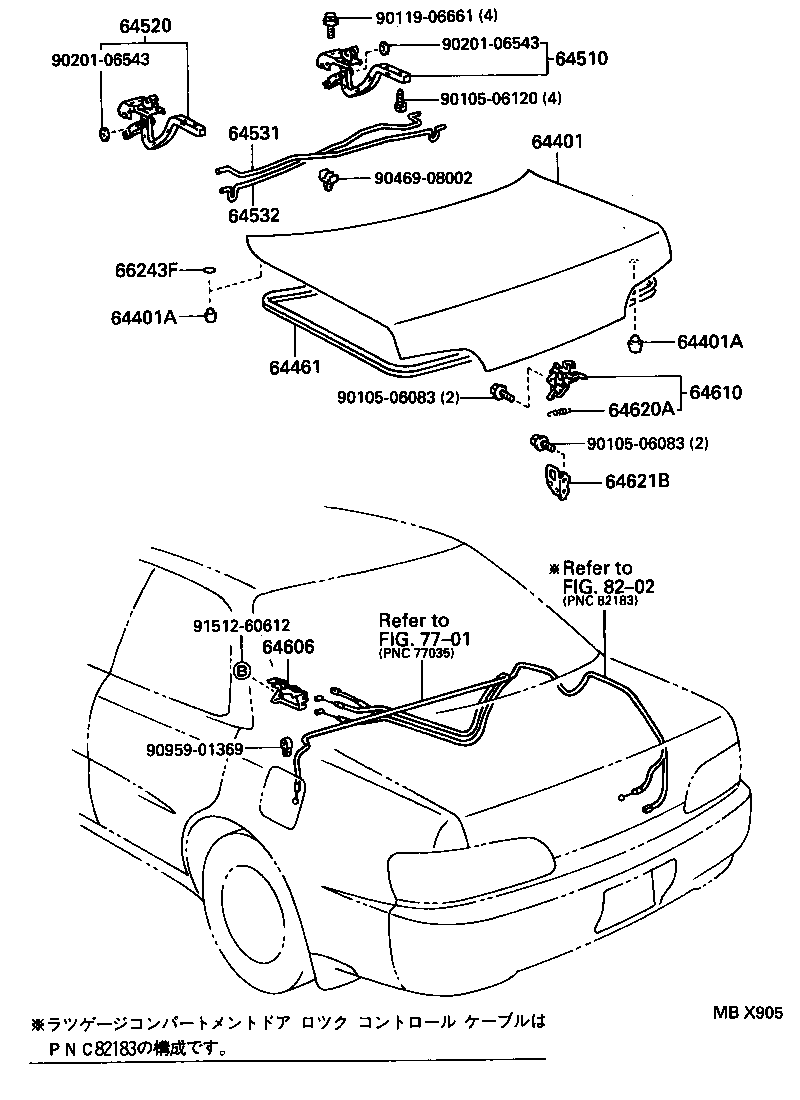

Click highlighted areas on diagram

diagram 64401 64401A 64401A 64461 64510 64520 64531 64532 64606 64610 64620A 64621B 66243F 7701 8202 9010506083 9010506083 9010506120 9011906661 9020106543 9020106543 9046908002 9095901369 9151260612
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-2B720

ST20#

 1
64401-2B730

ST20#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06059

ST20#

ﾌﾛﾝﾄ

 2
90541-09088

ST20#

ﾘﾔ

 2
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06059

ST20#

ﾌﾛﾝﾄ

 2
90541-09088

ST20#

ﾘﾔ

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-20410

ST20#

 1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-20200

ST20#

 1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-20190

ST20#

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-20530

ST20#

ｱﾘ(ﾄﾗﾝｸﾊﾟﾈﾙ ｶﾊﾞ-)

 1
64531-20520

ST20#

 1
64531-20540

ST20#

ｱﾘ(ﾄﾗﾝｸﾊﾟﾈﾙ ｶﾊﾞ- & ﾘﾔ ｽﾎﾟｲﾗ)

 1
64531-20550

ST20#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-20530

ST20#

ｱﾘ(ﾄﾗﾝｸﾊﾟﾈﾙ ｶﾊﾞ-)

 1
64532-20550

ST20#

ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ)

 1
64532-20520

ST20#

 1
64532-20540

ST20#

ｱﾘ(ﾄﾗﾝｸﾊﾟﾈﾙ ｶﾊﾞ- & ﾘﾔ ｽﾎﾟｲﾗ)

 1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-20120

ST20#

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-20260

ST20#

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-06009

ST20#

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-20110

ST20#

 1
66243F - PROTECTOR, REAR BODY, NO.1
66243-12010

ST20#

 2
Common parts
90105-06083
90105-06120
90119-06661
90201-06543
90469-08002
90959-01369
91512-60612
Linked diagrams
7701
8202
