ST202-ATPGK (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

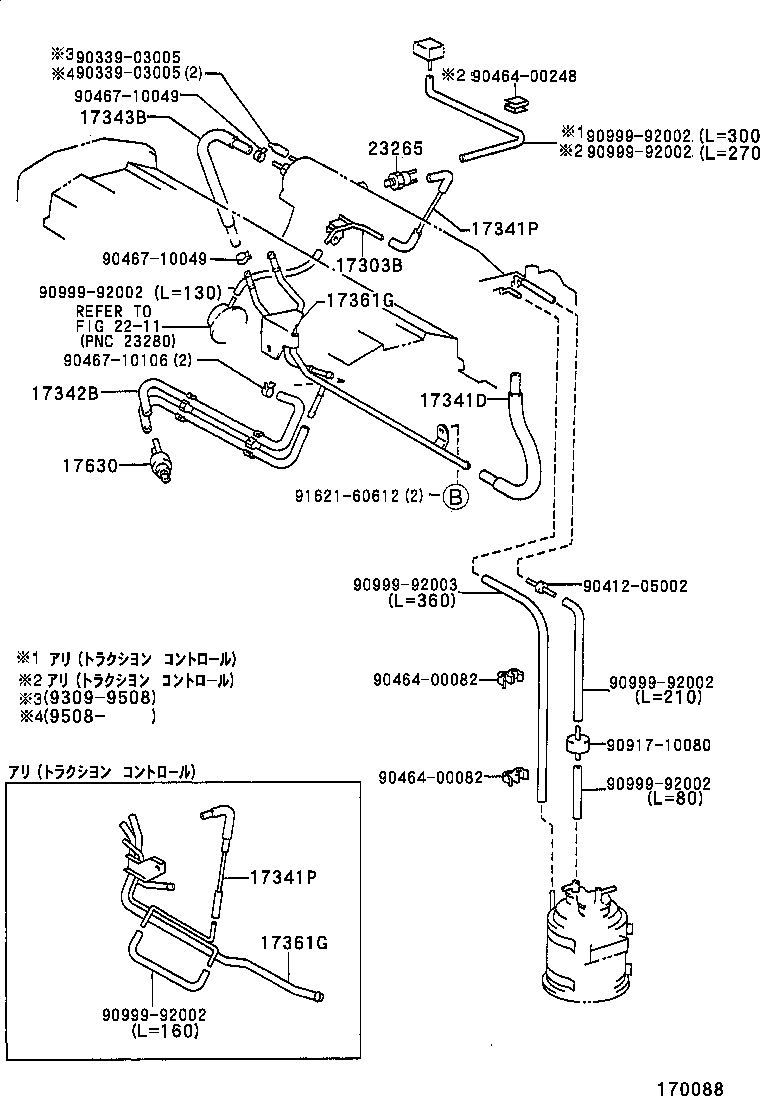

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9309-9606)3SFE,4SFE

Click highlighted areas on diagram

diagram 17303B 17341D 17341P 17341P 17342B 17343B 17361G 17361G 17630 2211 23265 9033903005 9033903005 9041205002 9046400082 9046400082 9046400248 9046710049 9046710049 9046710106 9091710080 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9162160612
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-74040

3SFE,4SFE..ST200,201,202,203

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74340

3SFE,4SFE..ST200,201,202,203

 1
17341-74520

3SFE..ST202,203..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
17341P - HOSE, AIR
17341-74430

3SFE..ST202,203..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
17341-74350

3SFE,4SFE..ST200,201,202,203

 1
17341P - HOSE, AIR
17341-74430

3SFE..ST202,203..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
17341-74350

3SFE,4SFE..ST200,201,202,203

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74100

3SFE,4SFE..ST200,201,202,203

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74141

3SFE..ST202,203..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
17343-74040

3SFE,4SFE..ST200,201,202,203

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74110

3SFE..ST202,203..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
17361-74100

3SFE,4SFE..ST200,201,202,203

 1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74110

3SFE..ST202,203..ATM

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)

 1
17361-74100

3SFE,4SFE..ST200,201,202,203

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

3S#,4SFE..ST20#

 1
23265 - FILTER, GAS, NO.1
90917-11023

3SFE,4SFE..ST200,201,202,203

 1
Common parts
90339-03005
90412-05002
90464-00082
90464-00248
90467-10049
90467-10106
90917-10080
90999-92002
90999-92003
91621-60612
Linked diagrams
2211
