ST202-ATMVF (1993)
Toyota Corona Exiv

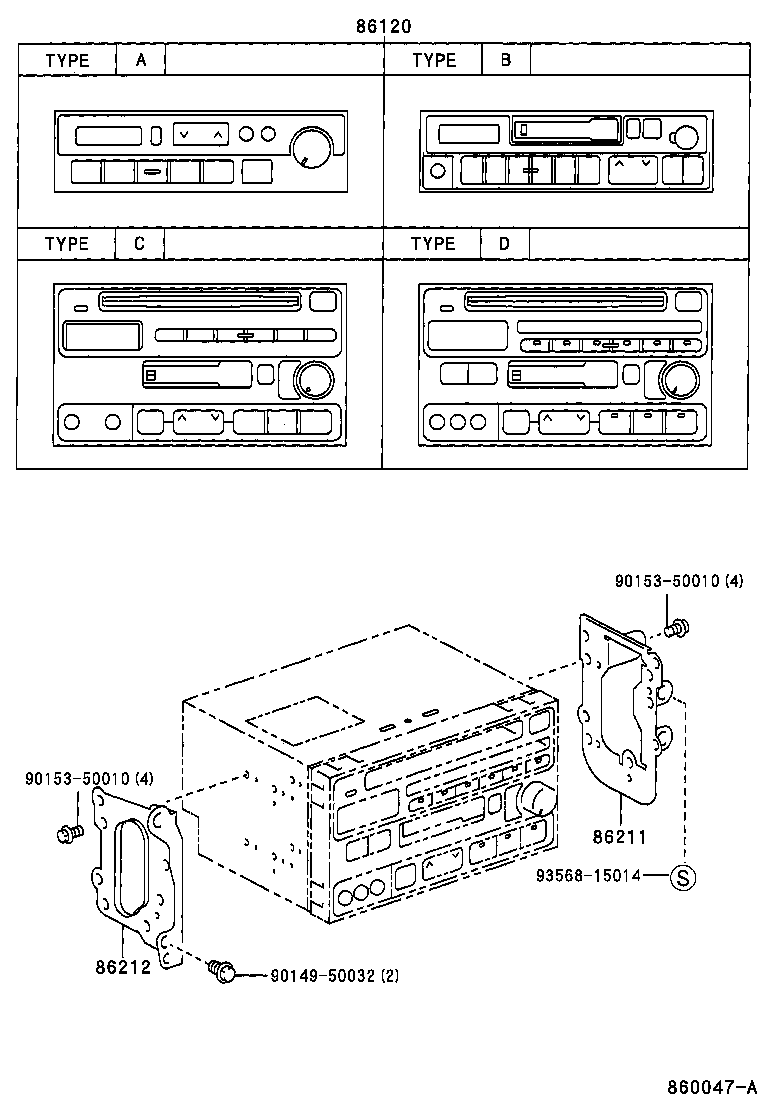

ILLUST NO. 1 OF 2(9309- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-2B480 |
ST202..TRG;ST200,201,205..TRG4,TRX MATSUSHITA,ID=55401,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-32310 |
ST200,202,203..TR,TRR FUJITSU TEN,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B490 |
ST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX MATSUSHITA,ID=55844,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86120-2B500 |
ST20#..200E,200G,200GT,TRG,TRG4,TRX MATSUSHITA,ID=55810,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-20360 |
ST20# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-20360 |
ST20# |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90153-50010 | ||||
| 93568-15014 | ||||

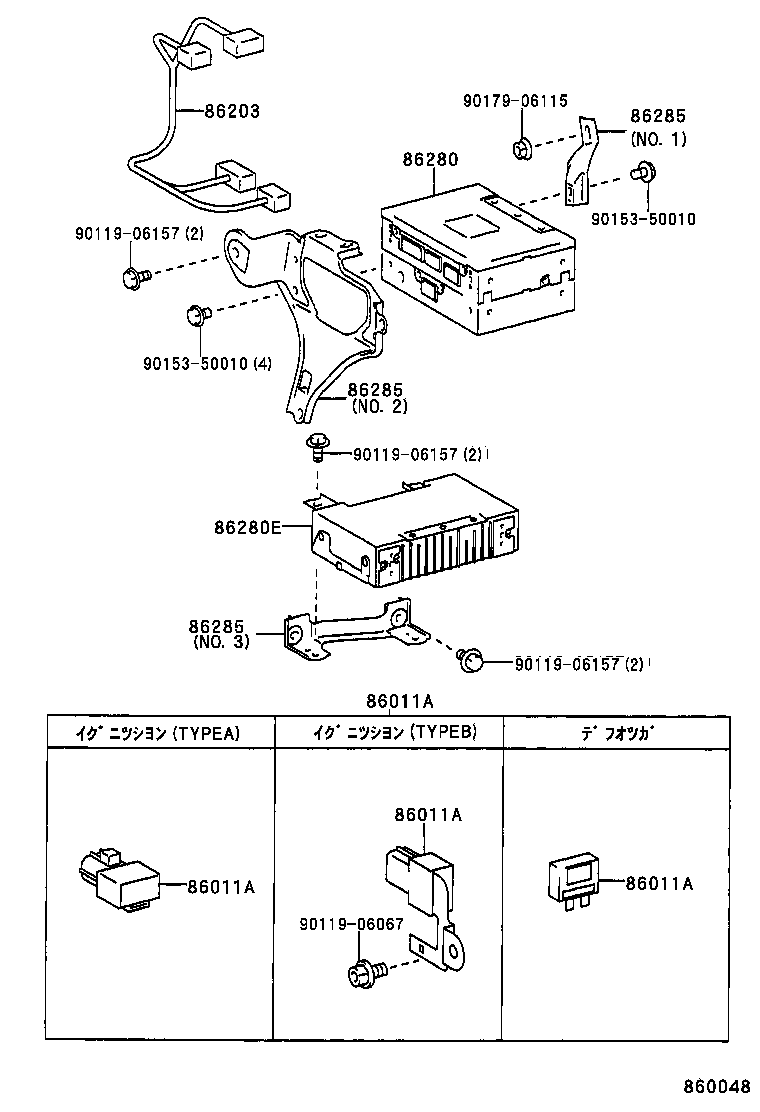

ILLUST NO. 2 OF 2(9309- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ(TYPE A) |
1 | ||
| 90980-04066 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ﾃﾞﾌｫｶﾞ |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ(TYPE A) |
1 | ||
| 90980-04066 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ﾃﾞﾌｫｶﾞ |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ(TYPE A) |
1 | ||
| 90980-04066 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ﾃﾞﾌｫｶﾞ |
2 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ｲｸﾞﾆﾂｼﾖﾝ ｺｲﾙ(TYPE A) |
1 | ||
| 90980-04066 |
ST20# ｲﾗｽﾄ ｻﾝｼﾖｳ,ﾃﾞﾌｫｶﾞ |
2 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-20210 |
ST20#..200E,200G,200GT,TRG,TRG4,TRX |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-20410 |
ST20#..200E,200G,200GT,TRG,TRG4,TRX |
1 | ||
| 86280E - AMPLIFIER SET, STEREO COMPONENT | ||||
| 86280-20420 |
ST20#..200E,200G,200GT,TRG,TRG4,TRX |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-20160 |
ST20#..200E,200G,200GT,TRG,TRG4,TRX NO.3 |
1 | ||
| 86285-20120 |
ST20#..200E,200G,200GT,TRG,TRG4,TRX NO.1 |
1 | ||
| 86285-20130 |
ST20#..200E,200G,200GT,TRG,TRG4,TRX NO.2 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-20160 |
ST20#..200E,200G,200GT,TRG,TRG4,TRX NO.3 |
1 | ||
| 86285-20120 |
ST20#..200E,200G,200GT,TRG,TRG4,TRX NO.1 |
1 | ||
| 86285-20130 |
ST20#..200E,200G,200GT,TRG,TRG4,TRX NO.2 |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-20160 |
ST20#..200E,200G,200GT,TRG,TRG4,TRX NO.3 |
1 | ||
| 86285-20120 |
ST20#..200E,200G,200GT,TRG,TRG4,TRX NO.1 |
1 | ||
| 86285-20130 |
ST20#..200E,200G,200GT,TRG,TRG4,TRX NO.2 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90119-06157 | ||||
| 90153-50010 | ||||
| 90179-06115 | ||||
