ST202-ATMVF (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9309-9508)

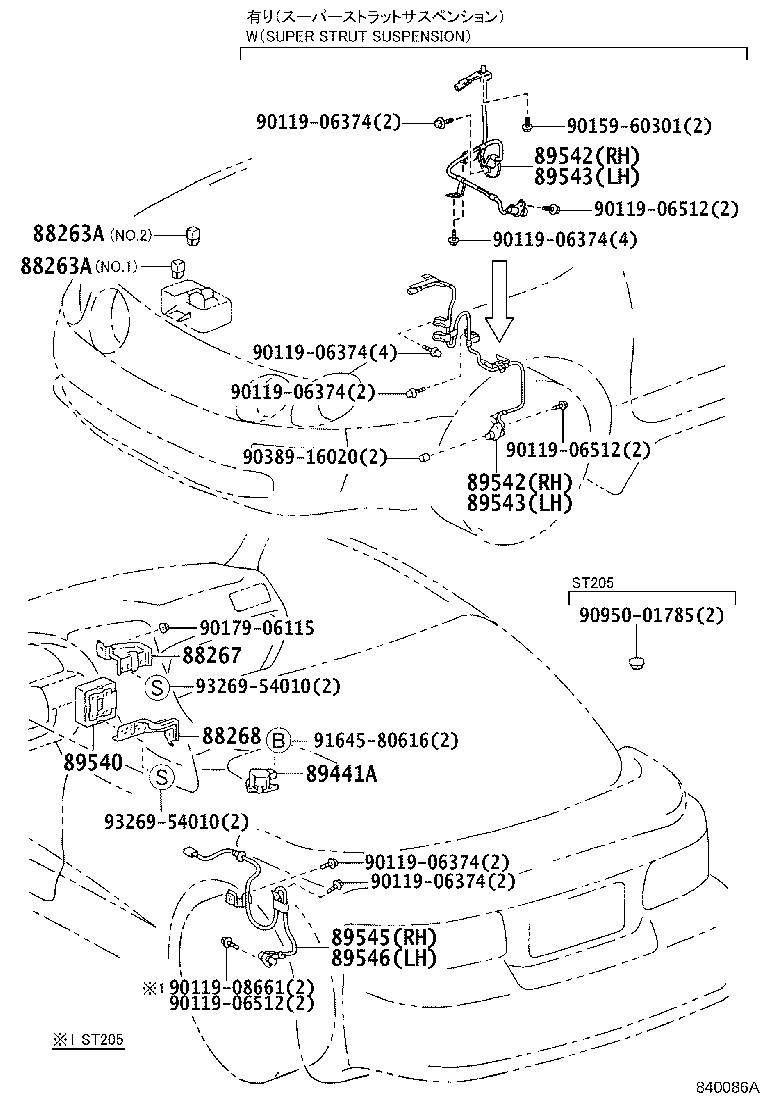

Click highlighted areas on diagram

diagram 88263A 88263A 88267 88268 89441A 89540 89542 89542 89543 89543 89545 89546 9011906374 9011906374 9011906374 9011906374 9011906374 9011906374 9011906512 9011906512 9011906512 9011908661 9015960301 9017906115 9038916020 9095001785 9164580616 9326954010 9326954010
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-24020

ST20#

NO.1

 1
88263-24030

ST20#

NO.2

 1
88263A - RELAY, SKID CONTROL
88263-24020

ST20#

NO.1

 1
88263-24030

ST20#

NO.2

 1
88267 - BRACKET, SKID CONTROL COMPUTER, NO.1
88267-20140

ST20#

 1
88267-20160

ST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4

ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ)

 1
88267-20140

ST200,202,203

 1
88268 - BRACKET, SKID CONTROL COMPUTER, NO.2
88268-20120

ST200,202,203

 1
88268-20140

ST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4

ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ)

 1
88268-20120

ST20#

 1
89441A - SENSOR, DECELERATION
89441-20050

ST202,205..200GT,GT4WD,TRG,TRG4

 1
89540 - COMPUTER ASSY, SKID CONTROL
89541-20130

ST200,201,202,203

 1
89541-20140

ST202..200GT,TRG

ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ)

 1
89542 - SENSOR, SPEED, FRONT RH
89542-20090

ST200,201,202,203

 1
89542-20100

ST202,205..TRG,TRG4

ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ)

 1
89542 - SENSOR, SPEED, FRONT RH
89542-20090

ST200,201,202,203

 1
89542-20100

ST202,205..TRG,TRG4

ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ)

 1
89543 - SENSOR, SPEED, FRONT LH
89543-20090

ST200,201,202,203

 1
89543-20100

ST202,205..TRG,TRG4

ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ)

 1
89543 - SENSOR, SPEED, FRONT LH
89543-20090

ST200,201,202,203

 1
89543-20100

ST202,205..TRG,TRG4

ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ)

 1
89545 - SENSOR, SPEED, REAR RH
89545-20090

ST200,201,202,203

 1
89546 - SENSOR, SPEED, REAR LH
89546-20090

ST200,201,202,203

 1
Common parts
90119-06374
90119-06512
90119-08661
90159-60301
90179-06115
90389-16020
90950-01785
91645-80616
93269-54010
