ST202-ATMVF (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

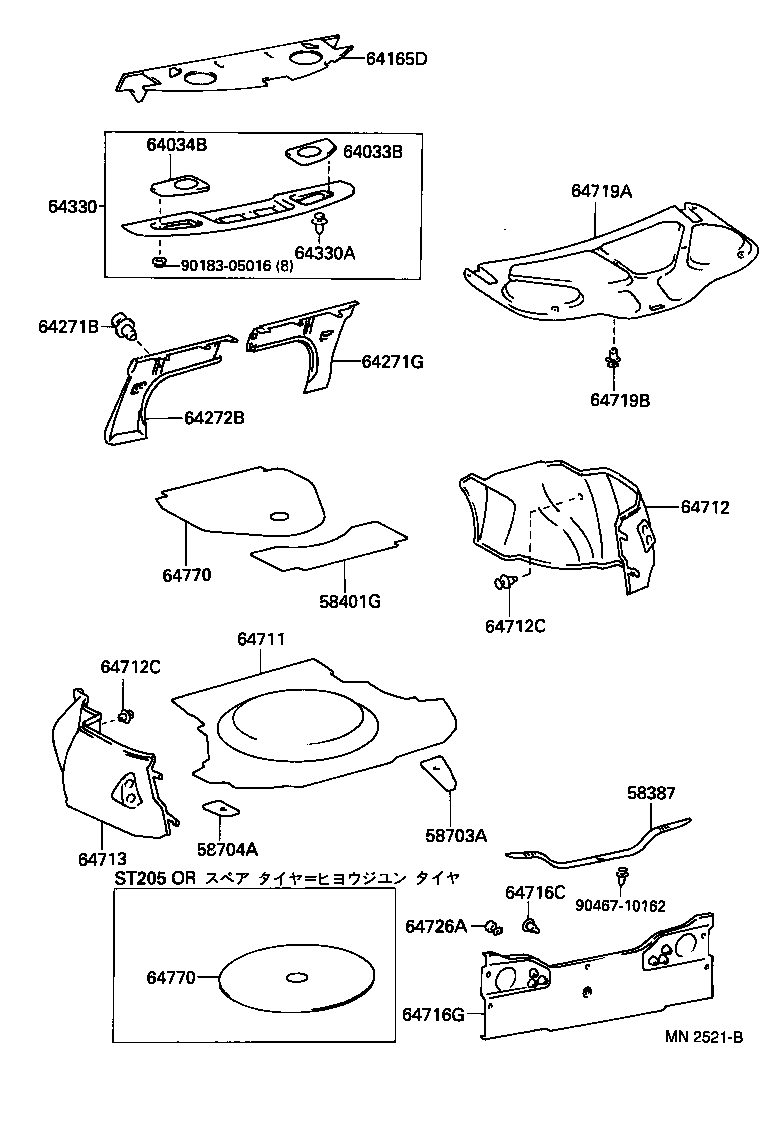

Click highlighted areas on diagram

diagram 58387 58401G 58703A 58704A 64033B 64034B 64165D 64271B 64271G 64272B 64330 64330A 64711 64712 64712C 64712C 64713 64716C 64716G 64719A 64719B 64726A 64770 64770 9018305016 9046710162
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-20070C0

ST200,202,203,205..180E,180G,200E,200G,200GT,GT4WD,TR,TRG,TRG4,TRR

BLACK,TRIM1#

 1
58401G - BOARD SUB-ASSY, REAR FLOOR, NO.1
58401-20010

ST200,201,202,203

 1
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-20180

ST20#

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-20150

ST20#

 1
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64383-20250B0

ST20#

SHADOW GRAY,TRIM1#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64384-20180B0

ST20#

SHADOW GRAY,TRIM1#

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07121C0

ST200,202,203,205..180E,180G,200E,200G,200GT,GT4WD,TR,TRG,TRG4,TRR

BLACK,TRIM1#

 3
64271G - BOARD, ROOM PARTITION, RH
64271-20280C0

ST200,202,203,205..180E,180G,200E,200G,200GT,GT4WD,TR,TRG,TRG4,TRR

BLACK,TRIM1#

 1
64272B - BOARD, ROOM PARTITION, LH
64272-20270C0

ST200,202,203,205..180E,180G,200E,200G,200GT,GT4WD,TR,TRG,TRG4,TRR

BLACK,TRIM1#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2D010B0

ST20#

ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳ ﾜｲﾊﾟ),SHADOW GRAY,TRIM1#

 1
64330-2B890B0

ST20#

SHADOW GRAY,TRIM1#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-06167

ST20#

 3
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-2B040C0

ST200,202,203..TR,TRG,TRR

ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ,BLACK,TRIM1#

 1
64711-2B050C0

ST200,202,203..180E,180G,200E,200G,200GT,TR,TRG,TRR

ｽﾍﾟｱﾀｲﾔ = ﾋﾖｳｼﾞﾕﾝﾀｲﾔ,BLACK,TRIM1#

 1
64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH
64712-20230C0

ST200,202,203..180E,180G,200E,200G,200GT,TR,TRG,TRR

BLACK,TRIM1#

 1
64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
90467-07146

ST20#

 2
64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
90467-07146

ST20#

 2
64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH
64713-20230C0

ST200,202,203..180E,180G,200E,200G,200GT,TR,TRG,TRR

BLACK,TRIM1#

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-07146

ST20#

 1
64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR
64716-20550C0

ST200,202,203..180E,180G,200E,200G,200GT,TR,TRG,TRR

BLACK,TRIM1#

 1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-20120C0

ST200,202,203,205..180E,180G,200E,200G,200GT,GT4WD,TR,TRG,TRG4,TRR

BLACK,TRIM1#

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-07146

ST20#

 13
64726A - CLIP, LUGGAGE TRIM, REAR
64726-20020C0

ST200,202,203,205..180E,180G,200E,200G,200GT,GT4WD,TR,TRG,TRG4,TRR

BLACK,TRIM1#

 7
64770 - COVER ASSY, SPARE WHEEL
64770-20240

ST20#

ｽﾍﾟｱﾀｲﾔ = ﾋﾖｳｼﾞﾕﾝﾀｲﾔ

 1
64770-20270

ST200,201,202,203

ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ

 1
64770 - COVER ASSY, SPARE WHEEL
64770-20240

ST20#

ｽﾍﾟｱﾀｲﾔ = ﾋﾖｳｼﾞﾕﾝﾀｲﾔ

 1
64770-20270

ST200,201,202,203

ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ

 1
Common parts
90183-05016
90467-10162
