ST202-ATMSK (1993)
Toyota Corona Exiv
Production
Sep 1993
-
Aug 1995
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9309- )

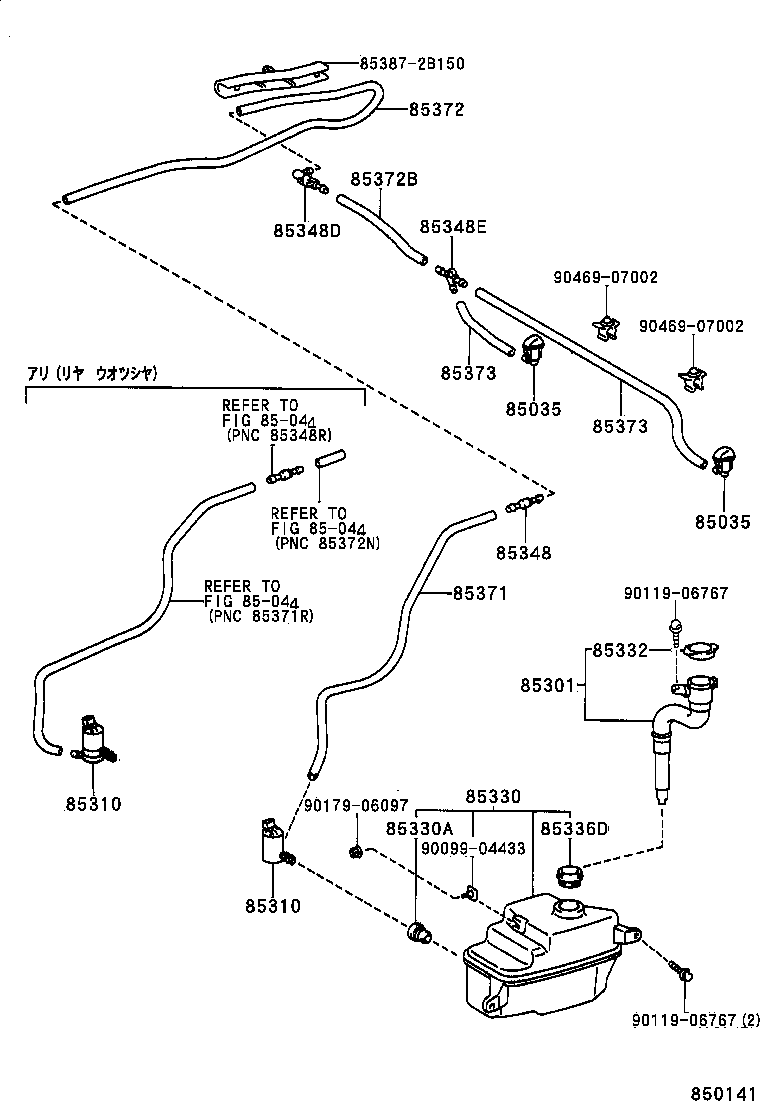

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20160A0 |
ST20# WARM GRAY PM,046,製造工場NO.M31 |
2 | ||
| 85381-20110A0 |
ST20# WARM GRAY PM,046,製造工場NO.A51−A54 |
2 | ||
| 85381-20060 |
ST20# 製造工場NO.A51−A54 |
2 | ||
| 85381-20150 |
ST20# 製造工場NO.M31 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20160A0 |
ST20# WARM GRAY PM,046,製造工場NO.M31 |
2 | ||
| 85381-20110A0 |
ST20# WARM GRAY PM,046,製造工場NO.A51−A54 |
2 | ||
| 85381-20060 |
ST20# 製造工場NO.A51−A54 |
2 | ||
| 85381-20150 |
ST20# 製造工場NO.M31 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-20020 |
ST20# |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-12280 |
ST20# ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85310-20210 |
ST20# |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-12280 |
ST20# ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85310-20210 |
ST20# |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-20560 |
ST20# ｼﾞﾔ- 2.5L |
1 | ||
| 85315-20520 |
ST20# ｼﾞﾔ- 4.5L |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
ST20# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-16070 |
ST20# |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-30160 |
ST20# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ST20# |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85378-12480 |
ST20# |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85378-2B160 |
ST20# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
ST20# *H,L=720 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33029 |
ST20# *H,L=900 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33299 |
ST20# *H,L=240 |
1 | ||
| 90099-33299 |
ST20# *H,L=260 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
ST20# *H,L=160 |
1 | ||
| 90099-33299 |
ST20# *H,L=545 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
ST20# *H,L=160 |
1 | ||
| 90099-33299 |
ST20# *H,L=545 |
1 | ||
| Common parts | ||||
| 85387-2B150 | ||||
| 90099-04433 | ||||
| 90119-06767 | ||||
| 90179-06097 | ||||
| 90469-07002 | ||||
| Linked diagrams | ||||
| 8504 | ||||
