ST202-ATMSK (1993)
Toyota Corona Exiv
(9309- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61027-20110 |
ST20# |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61028-20100 |
ST20# |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-20900 |
ST20# |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-20900 |
ST20# |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-20270 |
ST20# |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-20230 |
ST20# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-20110 |
ST20# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-20110 |
ST20# |
1 | ||
| 61127B - REINFORCEMENT, COWL SIDE PANEL, NO.2 RH | ||||
| 61127-20020 |
ST20# |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-20220 |
ST20# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-20220 |
ST20# |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-20100 |
ST20# |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-20100 |
ST20# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-20270 |
ST20# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-20270 |
ST20# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-20400 |
ST20# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-20390 |
ST20# |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-20130 |
ST20# |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-20130 |
ST20# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-20270 |
ST20# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-20340 |
ST20# |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-20140 |
ST20# |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-20140 |
ST20# |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-20100 |
ST20# |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-20110 |
ST20# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-2B909 |
ST20# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-2D909 |
ST20# |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-20230 |
ST20# |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-20230 |
ST20# |
1 | ||
| 61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH | ||||
| 61627-20150 |
ST20# |
1 | ||
| 61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH | ||||
| 61628-20170 |
ST20# |
1 | ||
| 61628F - BRACKET, REAR COMBINATION LAMP HARNESS CLAMP | ||||
| 90959-01496 |
ST20# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-20290 |
ST20# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-20280 |
ST200,201,202,203 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-20922 |
ST200,201,202,203 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-20917 |
ST200,201,202,203 |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-20130 |
ST200,201,202,203 |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-20130 |
ST200,201,202,203 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-20170 |
ST20# |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-20170 |
ST20# |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-20320 |
ST20# |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-20320 |
ST20# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-20240 |
ST20# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-20220 |
ST20# |
1 | ||
| 61737B - PANEL, ROOF SIDE, INNER LOWER RH | ||||
| 61737-20100 |
ST20# |
1 | ||
| 61738B - PANEL, ROOF SIDE, INNER LOWER LH | ||||
| 61738-20080 |
ST20# |
1 | ||
| 61775A - GUIDE, ROOF SIDE DRAIN HOSE, NO.1 RH | ||||
| 61775-20050 |
ST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX |
1 | ||
| 61776B - GUIDE, ROOF SIDE DRAIN HOSE, NO.1 LH | ||||
| 61776-20050 |
ST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-20120 |
ST20# ｻﾝﾙ-ﾌ ﾄﾞﾚｲﾝ ﾖｳ |
4 | ||
| 61824-20140 |
ST20# ｻﾝﾙ-ﾌ ﾄﾞﾚｲﾝ ﾖｳ |
4 | ||
| 61824-12040 |
ST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 61824-12040 |
ST20# ｶｳﾙ ｻｲﾄﾞ ﾖｳ |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-20120 |
ST20# ｻﾝﾙ-ﾌ ﾄﾞﾚｲﾝ ﾖｳ |
4 | ||
| 61824-20140 |
ST20# ｻﾝﾙ-ﾌ ﾄﾞﾚｲﾝ ﾖｳ |
4 | ||
| 61824-12040 |
ST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 61824-12040 |
ST20# ｶｳﾙ ｻｲﾄﾞ ﾖｳ |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-20120 |
ST20# ｻﾝﾙ-ﾌ ﾄﾞﾚｲﾝ ﾖｳ |
4 | ||
| 61824-20140 |
ST20# ｻﾝﾙ-ﾌ ﾄﾞﾚｲﾝ ﾖｳ |
4 | ||
| 61824-12040 |
ST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 61824-12040 |
ST20# ｶｳﾙ ｻｲﾄﾞ ﾖｳ |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61825-20160 |
ST20# |
1 | ||
| 61826-20100 |
ST20# |
1 | ||
| 61827B - PLATE, NOISE CONTROL, NO.4 | ||||
| 61827-20030 |
ST20# |
1 | ||
| 61825-20160 |
ST20# |
1 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-20160 |
ST20# |
4 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-20160 |
ST20# |
4 | ||
| 64225A - HANGER, REAR SEAT CUSHION SUPPORT | ||||
| 64225-20020 |
ST20# |
1 | ||
| 64226A - HANGER, REAR SEAT CUSHION SUPPORT, NO.2 | ||||
| 64226-20050 |
ST20# |
1 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64301-20020 |
ST20# |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64302-20030 |
ST20# |
1 | ||
| Common parts | ||||
| 90333-25001 | ||||
| 90541-11006 | ||||
| 90950-01060 | ||||
| 90950-01327 | ||||
| 90950-01392 | ||||
| 90950-01753 | ||||
| 91112-60610 | ||||

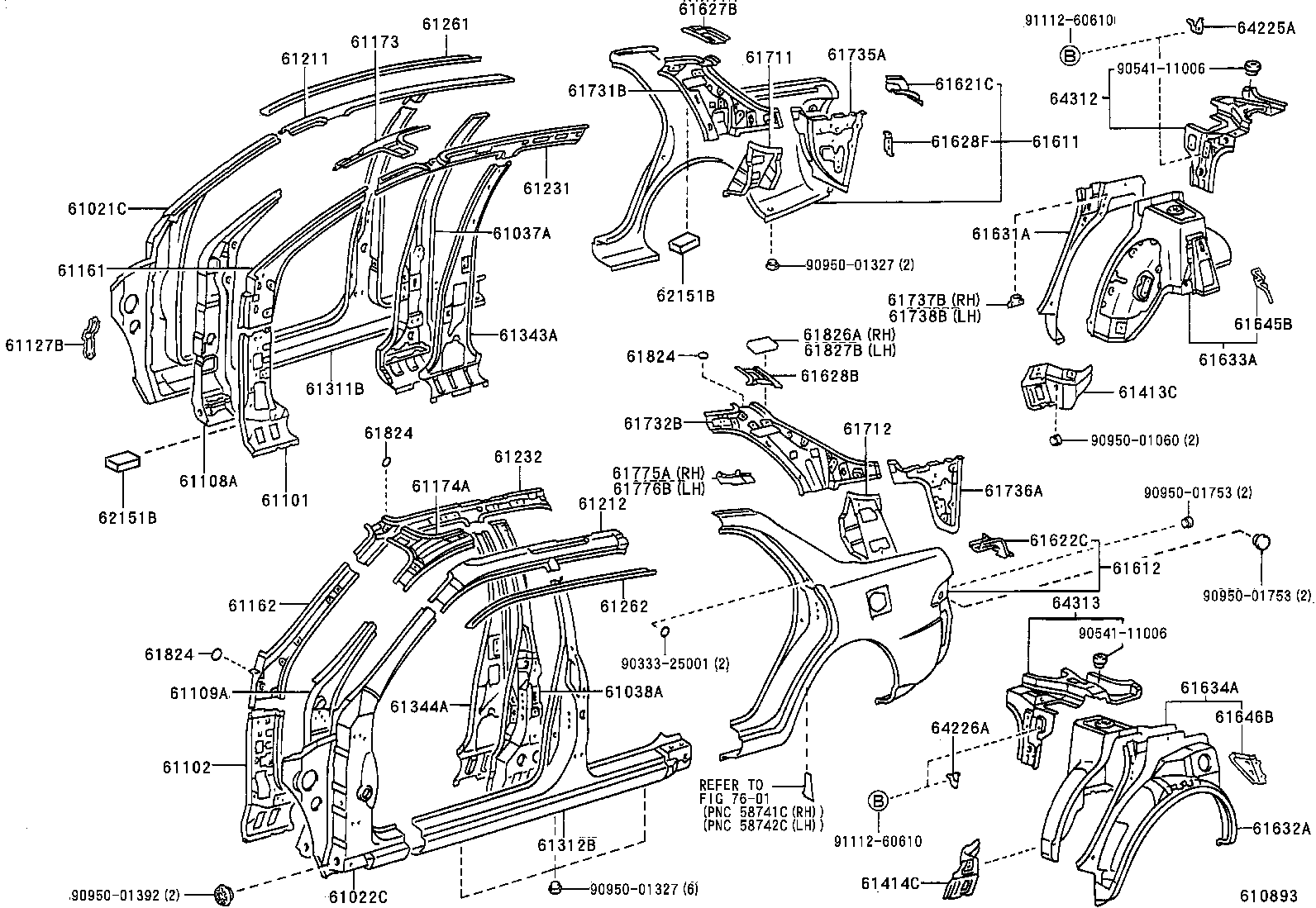

| Linked diagrams | ||||
| 7601 | ||||
