Toyota Corona exiv ST202 FUEL INJECTION SYSTEM

Manufacturers Home
Toyota
JP
CORONA EXIV
ST202-ATMSK (1993)
2211 - FUEL INJECTION SYSTEM

ST202-ATMSK (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995

Engine 3SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

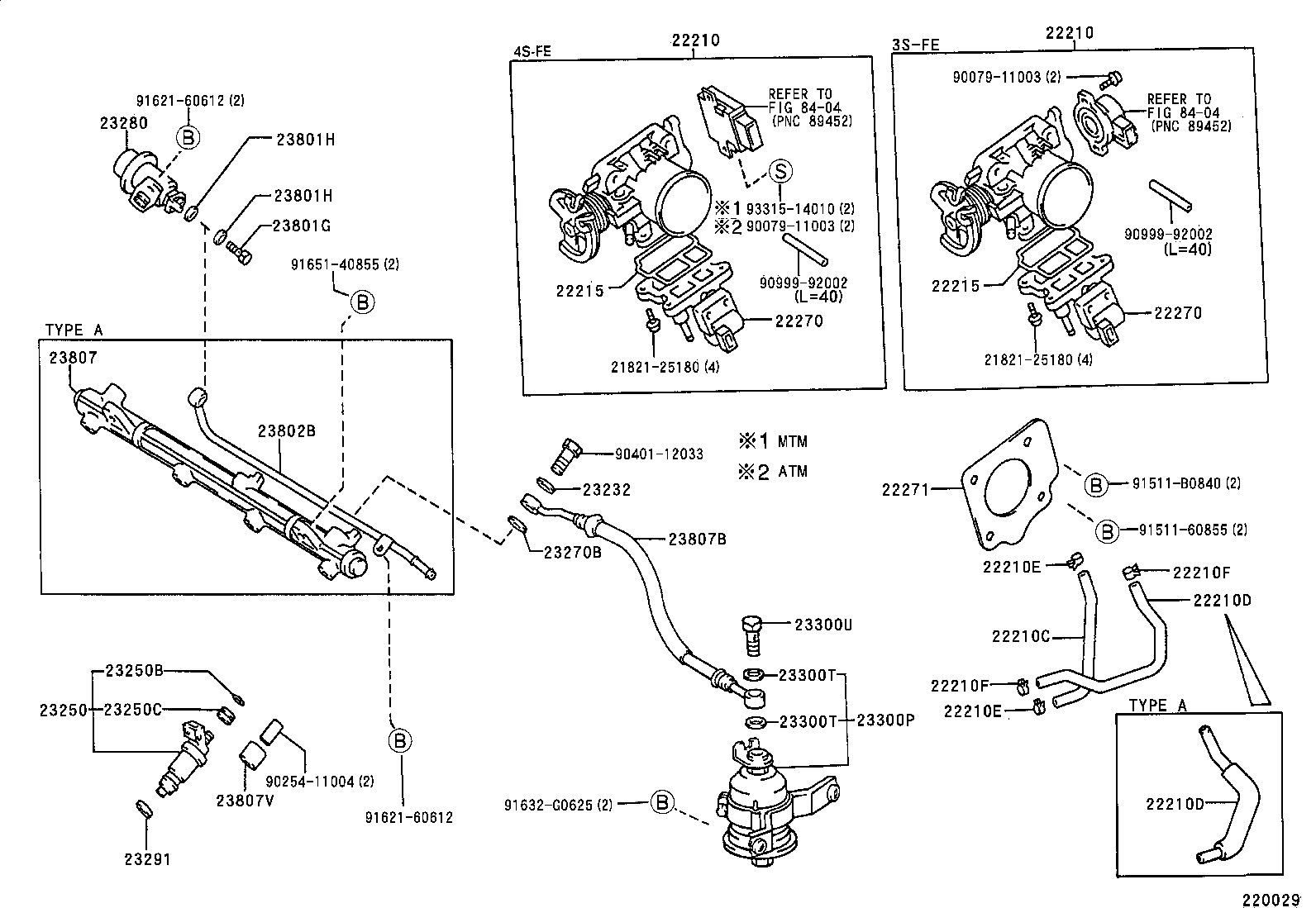

ILLUST NO. 1 OF 2(9309-9508)3SFE,4SFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
22210 - BODY ASSY, THROTTLE
22210-7A110	3SFE..ST202,203..ATM	09/1993 - 08/1995	1
22210-7A100	3SFE..ST202,203..MTM	09/1993 - 08/1995	1
22210 - BODY ASSY, THROTTLE
22210-7A110	3SFE..ST202,203..ATM	09/1993 - 08/1995	1
22210-7A100	3SFE..ST202,203..MTM	09/1993 - 08/1995	1
22210C - HOSE, WATER BY-PASS, NO.1
16282-74050	3SFE..ST202,203	09/1993 - 04/1994	1
16282-74080	3SFE..ST202,203	04/1994 - 08/1995	1
22210D - HOSE, WATER BY-PASS, NO.2
16283-74010	3SFE..ST202,203..ATM;3SFE..ST202,203..MTM..(TRR,TRX) TYPE A	09/1993 - 06/1996	1
22210D - HOSE, WATER BY-PASS, NO.2
16283-74010	3SFE..ST202,203..ATM;3SFE..ST202,203..MTM..(TRR,TRX) TYPE A	09/1993 - 06/1996	1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13050	3SFE,4SFE..ST200,201,202,203	09/1993 - 12/2999	2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13050	3SFE,4SFE..ST200,201,202,203	09/1993 - 12/2999	2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13050	3SFE,4SFE..ST200,201,202,203	09/1993 - 12/2999	2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13050	3SFE,4SFE..ST200,201,202,203	09/1993 - 12/2999	2
22215 - GASKET, THROTTLE BODY COVER
22215-74400	3SFE,4SFE..ST200,201,202,203	09/1993 - 04/1998	1
22215 - GASKET, THROTTLE BODY COVER
22215-74400	3SFE,4SFE..ST200,201,202,203	09/1993 - 04/1998	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-74240	3SFE..ST202,203..MTM	09/1993 - 06/1996	1
22270-74260	3SFE..ST202,203..ATM ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	09/1993 - 06/1996	1
22270-74250	3SFE..ST202,203..ATM	09/1993 - 06/1996	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-74240	3SFE..ST202,203..MTM	09/1993 - 06/1996	1
22270-74260	3SFE..ST202,203..ATM ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	09/1993 - 06/1996	1
22270-74250	3SFE..ST202,203..ATM	09/1993 - 06/1996	1
22271 - GASKET, THROTTLE BODY
22271-74022	3SFE,4SFE..ST200,201,202,203	09/1993 - 06/1996	1
23232 - GASKET(FOR FUEL PUMP HOSE)
23279-74010	3SFE,4SFE..ST200,202,203	05/1995 - 12/2999	1
23232-41081	3SFE,4SFE..ST200,201,202,203	09/1993 - 05/1995	1
23250 - INJECTOR ASSY, FUEL
23209-74040	3SFE..ST202,203	09/1993 - 06/1996	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001	3S#,4SFE..ST20#	09/1993 - 04/1998	4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005	3S#,4SFE..ST20#	09/1993 - 04/1998	4
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23279-74010	3SFE,4SFE..ST200,202,203	05/1995 - 12/2999	1
23232-41081	3SFE,4SFE..ST200,201,202,203	09/1993 - 05/1995	1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-74100	3SFE,4SFE..ST20#	09/1993 - 03/1994	1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010	3S#,4SFE..ST20#	09/1993 - 12/2999	4
23300P - FILTER, FUEL(FOR EFI)
23300-79425	3S#,4SFE..ST20#	09/1993 - 12/2999	1
23300T - GASKET(FOR FUEL FILTER)
90430-12026	3S#,4SFE..ST20#	09/1993 - 12/2999	2
23300T - GASKET(FOR FUEL FILTER)
90430-12026	3S#,4SFE..ST20#	09/1993 - 12/2999	2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097	3S#,4SFE..ST20#	09/1993 - 02/1996	1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-08004	3SFE,4SFE..ST200,201,202,203	09/1993 - 12/2999	1
23801H - GASKET(FOR FUEL PIPE)
90430-08014	3SFE,4SFE..ST200,201,202,203	09/1993 - 12/2999	2
23801H - GASKET(FOR FUEL PIPE)
90430-08014	3SFE,4SFE..ST200,201,202,203	09/1993 - 12/2999	2
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-74070	3SFE..ST202,203..ATM;4SFE..ST200..180E,180G;3SFE..ST202,203..MTM..(200E,200G) TYPE B	09/1993 - 12/2999	1
23802-74023	3SFE,4SFE..ST200,201,202,203 TYPE A	09/1993 - 08/1995	1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-74040	3SFE,4SFE..ST200,201,202,203 TYPE A	09/1993 - 08/1995	1
23814-74070	3SFE..ST202,203..ATM TYPE B	09/1993 - 04/1994	1
23814-74100	3SFE..ST202,203..ATM TYPE B	04/1994 - 05/1994	1
23814-74110	3SFE..ST202,203..ATM;4SFE..ST200..180E,180G;3SFE..ST202,203..MTM..(200E,200G) TYPE B	05/1994 - 12/2999	1
23807B - HOSE, FUEL DELIVERY PIPE
23271-74440	3SFE,4SFE..ST200,201,202,203	09/1993 - 08/1995	1
23271-74460	3SFE..ST202,203..ATM ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	09/1993 - 06/1996	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90560-11020	3SFE,4SFE..ST200,201,202,203	09/1993 - 08/1995	2
Common parts
21821-25180
90079-11003
90254-11004
90401-12033
90999-92002
91511-60855
91511-B0840
91621-60612
91632-G0625
91651-40855
93315-14010
Linked diagrams
8404

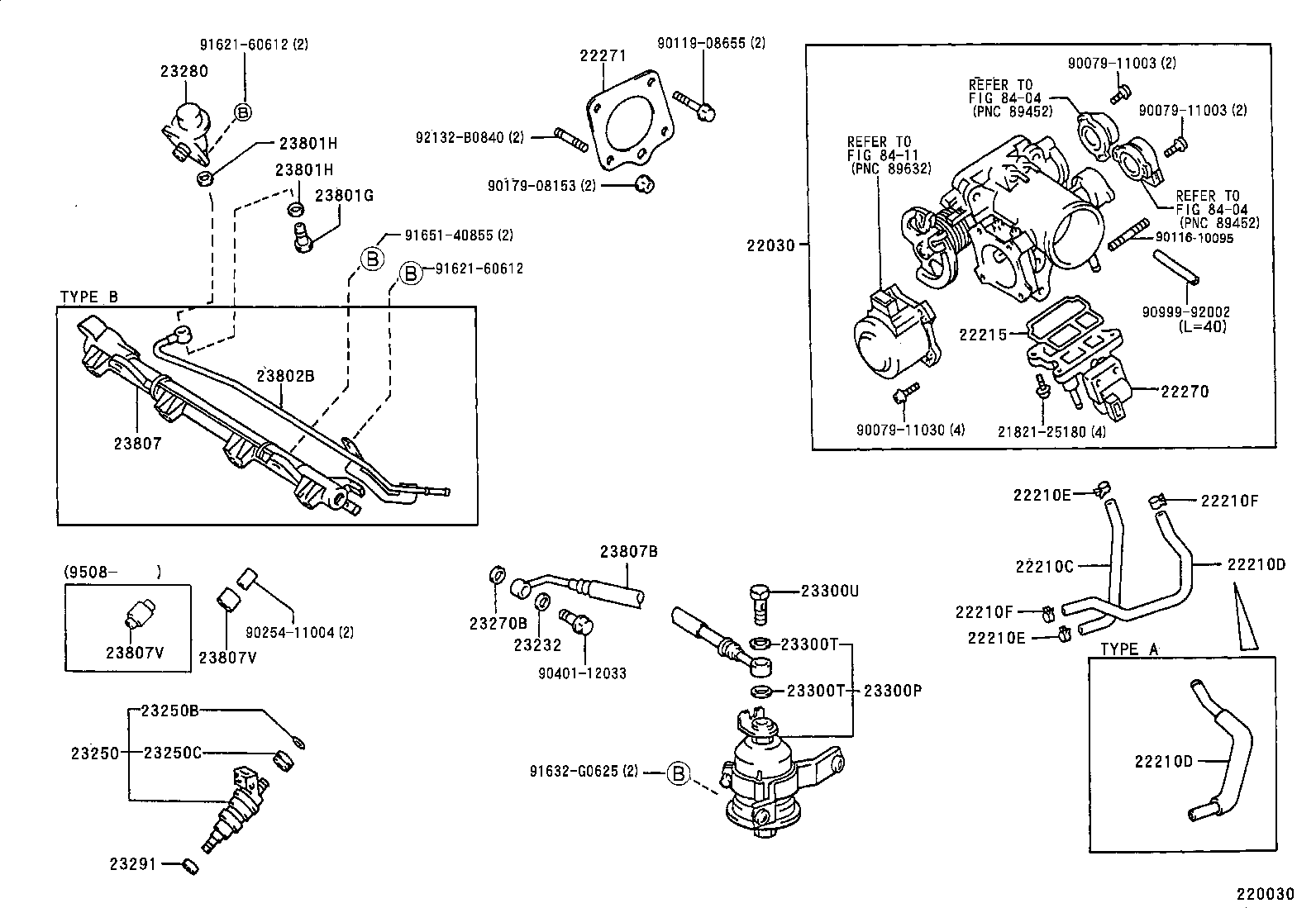

ILLUST NO. 1 OF 2(9309-9606)3SFE

Click highlighted areas on diagram

ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)

Part #	Description	Period	Qty
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-74040	3SFE..ST202,203..ATM	09/1993 - 06/1996	1
22210C - HOSE, WATER BY-PASS, NO.1
16282-74050	3SFE..ST202,203	09/1993 - 04/1994	1
16282-74080	3SFE..ST202,203	04/1994 - 08/1995	1
22210D - HOSE, WATER BY-PASS, NO.2
16283-74010	3SFE..ST202,203..ATM;3SFE..ST202,203..MTM..(TRR,TRX) TYPE A	09/1993 - 06/1996	1
22210D - HOSE, WATER BY-PASS, NO.2
16283-74010	3SFE..ST202,203..ATM;3SFE..ST202,203..MTM..(TRR,TRX) TYPE A	09/1993 - 06/1996	1
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13050	3SFE,4SFE..ST200,201,202,203	09/1993 - 12/2999	2
22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
90467-13050	3SFE,4SFE..ST200,201,202,203	09/1993 - 12/2999	2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13050	3SFE,4SFE..ST200,201,202,203	09/1993 - 12/2999	2
22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
90467-13050	3SFE,4SFE..ST200,201,202,203	09/1993 - 12/2999	2
22215 - GASKET, THROTTLE BODY COVER
22215-74400	3SFE,4SFE..ST200,201,202,203	09/1993 - 04/1998	1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-74240	3SFE..ST202,203..MTM	09/1993 - 06/1996	1
22270-74260	3SFE..ST202,203..ATM ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	09/1993 - 06/1996	1
22270-74250	3SFE..ST202,203..ATM	09/1993 - 06/1996	1
22271 - GASKET, THROTTLE BODY
22271-74022	3SFE,4SFE..ST200,201,202,203	09/1993 - 06/1996	1
23232 - GASKET(FOR FUEL PUMP HOSE)
23279-74010	3SFE,4SFE..ST200,202,203	05/1995 - 12/2999	1
23232-41081	3SFE,4SFE..ST200,201,202,203	09/1993 - 05/1995	1
23250 - INJECTOR ASSY, FUEL
23209-74040	3SFE..ST202,203	09/1993 - 06/1996	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001	3S#,4SFE..ST20#	09/1993 - 04/1998	4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005	3S#,4SFE..ST20#	09/1993 - 04/1998	4
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23279-74010	3SFE,4SFE..ST200,202,203	05/1995 - 12/2999	1
23232-41081	3SFE,4SFE..ST200,201,202,203	09/1993 - 05/1995	1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-74100	3SFE,4SFE..ST20#	09/1993 - 03/1994	1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010	3S#,4SFE..ST20#	09/1993 - 12/2999	4
23300P - FILTER, FUEL(FOR EFI)
23300-79425	3S#,4SFE..ST20#	09/1993 - 12/2999	1
23300T - GASKET(FOR FUEL FILTER)
90430-12026	3S#,4SFE..ST20#	09/1993 - 12/2999	2
23300T - GASKET(FOR FUEL FILTER)
90430-12026	3S#,4SFE..ST20#	09/1993 - 12/2999	2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097	3S#,4SFE..ST20#	09/1993 - 02/1996	1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-08004	3SFE,4SFE..ST200,201,202,203	09/1993 - 12/2999	1
23801H - GASKET(FOR FUEL PIPE)
90430-08014	3SFE,4SFE..ST200,201,202,203	09/1993 - 12/2999	2
23801H - GASKET(FOR FUEL PIPE)
90430-08014	3SFE,4SFE..ST200,201,202,203	09/1993 - 12/2999	2
23802B - PIPE SUB-ASSY, FUEL, NO.2
23802-74070	3SFE..ST202,203..ATM;4SFE..ST200..180E,180G;3SFE..ST202,203..MTM..(200E,200G) TYPE B	09/1993 - 12/2999	1
23802-74023	3SFE,4SFE..ST200,201,202,203 TYPE A	09/1993 - 08/1995	1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-74040	3SFE,4SFE..ST200,201,202,203 TYPE A	09/1993 - 08/1995	1
23814-74070	3SFE..ST202,203..ATM TYPE B	09/1993 - 04/1994	1
23814-74100	3SFE..ST202,203..ATM TYPE B	04/1994 - 05/1994	1
23814-74110	3SFE..ST202,203..ATM;4SFE..ST200..180E,180G;3SFE..ST202,203..MTM..(200E,200G) TYPE B	05/1994 - 12/2999	1
23807B - HOSE, FUEL DELIVERY PIPE
23271-74440	3SFE,4SFE..ST200,201,202,203	09/1993 - 08/1995	1
23271-74460	3SFE..ST202,203..ATM ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	09/1993 - 06/1996	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90560-11020	3SFE,4SFE..ST200,201,202,203	09/1993 - 08/1995	2
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90560-11020	3SFE,4SFE..ST200,201,202,203	09/1993 - 08/1995	2
Common parts
21821-25180
90079-11003
90079-11030
90119-08655
90179-08153
90254-11004
90401-12033
90999-92002
91621-60612
91632-G0625
91651-40855
92132-B0840
Linked diagrams
8404
8411

ILLUST NO. 2 OF 2(9309- )3S#,4SFE..ST200,201,202,203

Click highlighted areas on diagram

Part #	Description	Period	Qty
23091 - TUBE SUB-ASSY, FUEL PUMP
23091-74230	3S#,4SFE..ST200,201,202,203	09/1993 - 12/1996	1
23204 - TUBE SUB-ASSY, FUEL PUMP RETURN
23204-74710	3S#,4SFE..ST200,201,202,203	09/1993 - 12/1996	1
23206A - BRACKET, FUEL PUMP
23206-74720	3S#,4SFE..ST200,201,202,203	09/1993 - 12/1996	1
23206B - GASKET, FUEL PUMP BRACKET
77169-20040	3S#,4SFE..ST200,201,202,203	09/1993 - 04/1998	1
23217A - FILTER, FUEL PUMP
23217-74021	3S#,4SFE..ST200,201,202,203	09/1993 - 12/2999	1
23220P - PUMP ASSY, FUEL
23220-74021	3S#,4SFE..ST200,201,202,203	09/1993 - 12/2999	1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010	3S#,4SFE..ST20#	09/1993 - 12/2999	1
23233 - HOSE, FUEL PUMP
23239-63010	3S#,4SFE..ST20#	09/1993 - 04/1994	1
23239-11010	3S#,4SFE..ST20#	04/1994 - 12/2999	1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067	3S#,4SFE..ST20#	04/1994 - 12/2999	2
90467-13054	3S#,4SFE..ST20#	09/1993 - 04/1994	2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-12067	3S#,4SFE..ST20#	04/1994 - 12/2999	2
90467-13054	3S#,4SFE..ST20#	09/1993 - 04/1994	2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610	3S#,4SFE..ST20#	09/1993 - 12/2999	1
Common parts
90119-06398
90159-50219
90179-05042
90467-12056
95333-06020
Linked diagrams
8401
