ST202-ATMGK (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

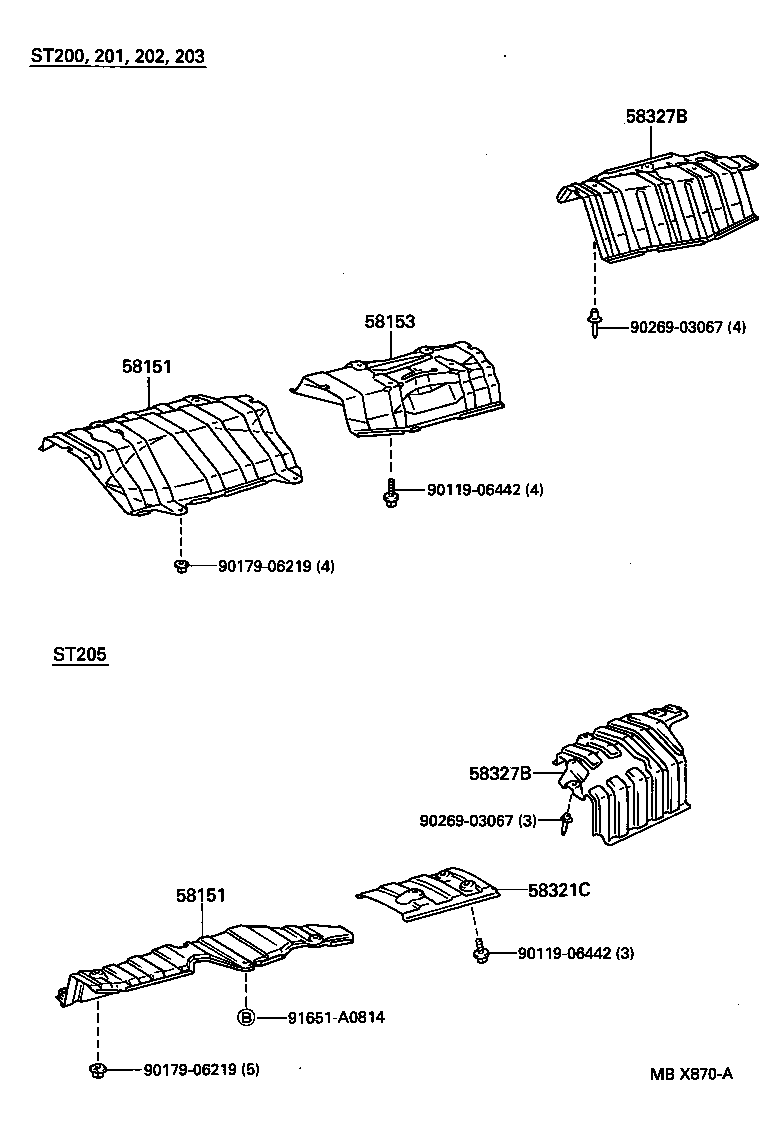

Click highlighted areas on diagram

diagram 58151 58151 58153 58321C 58327B 58327B 9011906442 9011906442 9017906219 9017906219 9026903067 9026903067 91651A0814
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-20110

ST202,203

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-20110

ST202,203

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-20110

ST200,202

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-20120

ST200,201,202,203

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-20120

ST200,201,202,203

 1
Common parts
90119-06442
90179-06219
90269-03067
91651-A0814
