ST201-ATMGK (1993)

Toyota Corona Exiv

Production Sep 1993 - Oct 1994
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

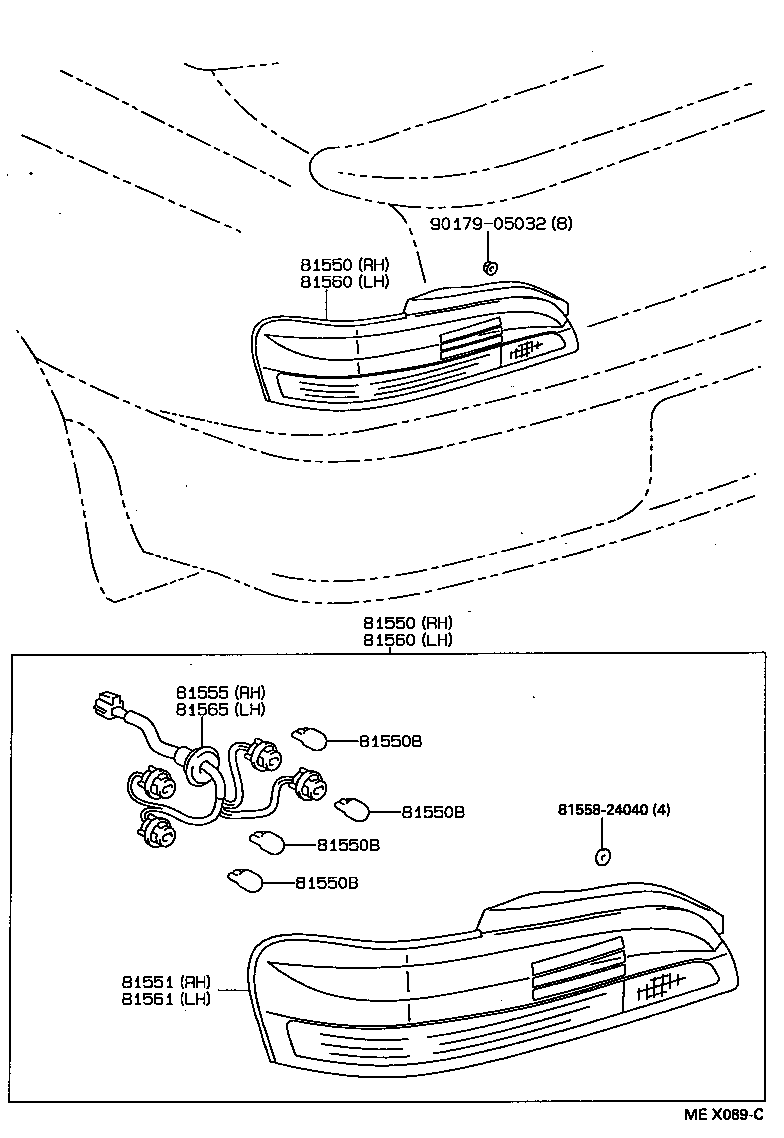

Click highlighted areas on diagram

diagram 81550 81550 81550B 81550B 81550B 81550B 81551 81555 8155824040 81560 81560 81561 81565 9017905032
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-2B410

ST20#

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-2B410

ST20#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

ST20#

12V 21/5W

 4
90981-13043

ST20#

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

ST20#

12V 21/5W

 4
90981-13043

ST20#

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

ST20#

12V 21/5W

 4
90981-13043

ST20#

12V 21W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13044

ST20#

12V 21/5W

 4
90981-13043

ST20#

12V 21W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-2B410

ST20#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-2B410

ST20#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-2B410

ST20#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-2B410

ST20#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-2B410

ST20#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-2B410

ST20#

 1
Common parts
81558-24040
90179-05032
