ST201-ATMGK (1993)

Toyota Corona Exiv

Production Sep 1993 - Oct 1994
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

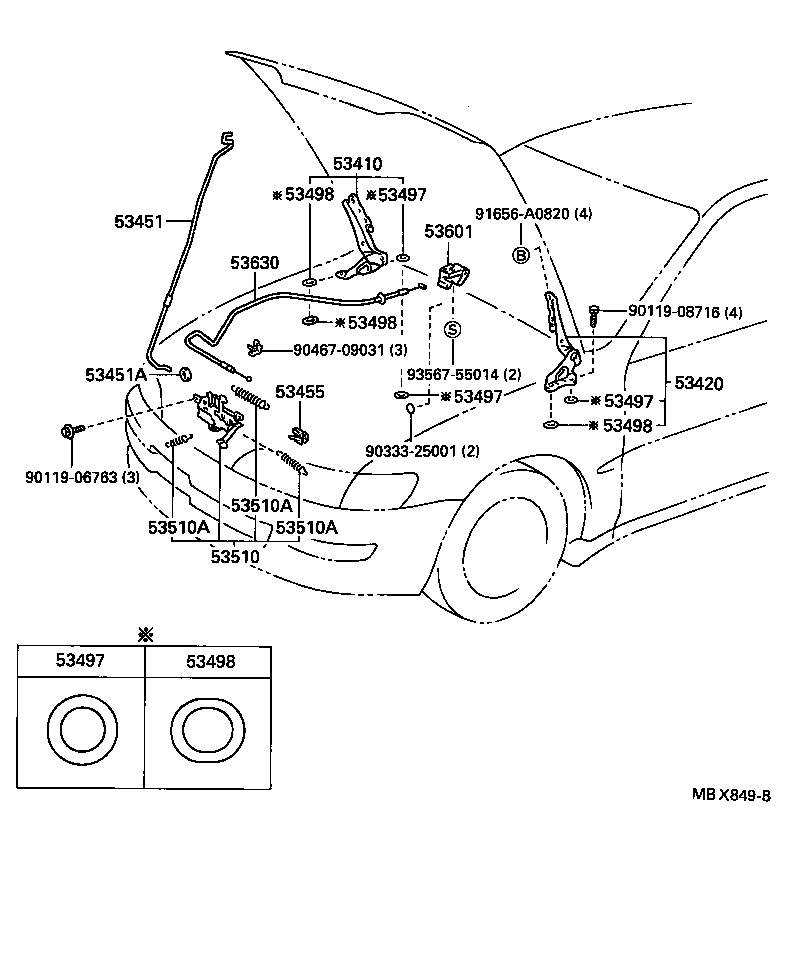

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53455 53497 53497 53497 53497 53498 53498 53498 53498 53510 53510A 53510A 53510A 53601 53630 9011906763 9011908716 9033325001 9046709031 91656A0820 9356755014
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-20240

ST20#

 1
53410-20250

ST20#

 1
53420 - HINGE ASSY, HOOD, LH
53420-20240

ST20#

 1
53420-20230

ST20#

 1
53451 - ROD, HOOD SUPPORT
53451-20190

ST20#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15020

ST20#

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-14020

ST20#

 1
53497 - PAD, HOOD HINGE, NO.1
53497-12050

ST20#

厚さ=1.0

 1
53497 - PAD, HOOD HINGE, NO.1
53497-12050

ST20#

厚さ=1.0

 1
53497 - PAD, HOOD HINGE, NO.1
53497-12050

ST20#

厚さ=1.0

 1
53497 - PAD, HOOD HINGE, NO.1
53497-12050

ST20#

厚さ=1.0

 1
53498 - PAD, HOOD HINGE, NO.2
53498-50010

ST20#

 1
53498 - PAD, HOOD HINGE, NO.2
53498-50010

ST20#

 1
53498 - PAD, HOOD HINGE, NO.2
53498-50010

ST20#

 1
53498 - PAD, HOOD HINGE, NO.2
53498-50010

ST20#

 1
53510 - LOCK ASSY, HOOD
53510-20540

ST20#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-23047

ST20#

外径=17,ｺｲﾙ巻数=14

 1
90506-09057

ST20#

線径=0.9,ｺｲﾙ巻数=23

 1
90506-12067

ST20#

線径=1.4,ｺｲﾙ巻数=7.25

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-23047

ST20#

外径=17,ｺｲﾙ巻数=14

 1
90506-09057

ST20#

線径=0.9,ｺｲﾙ巻数=23

 1
90506-12067

ST20#

線径=1.4,ｺｲﾙ巻数=7.25

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-23047

ST20#

外径=17,ｺｲﾙ巻数=14

 1
90506-09057

ST20#

線径=0.9,ｺｲﾙ巻数=23

 1
90506-12067

ST20#

線径=1.4,ｺｲﾙ巻数=7.25

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-1602022

ST200,201,202,203..TRX

BLACK,TRIM1#,9#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-20510

ST20#

 1
Common parts
90119-06763
90119-08716
90333-25001
90467-09031
91656-A0820
93567-55014
