ST200-ATPEK (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 4SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

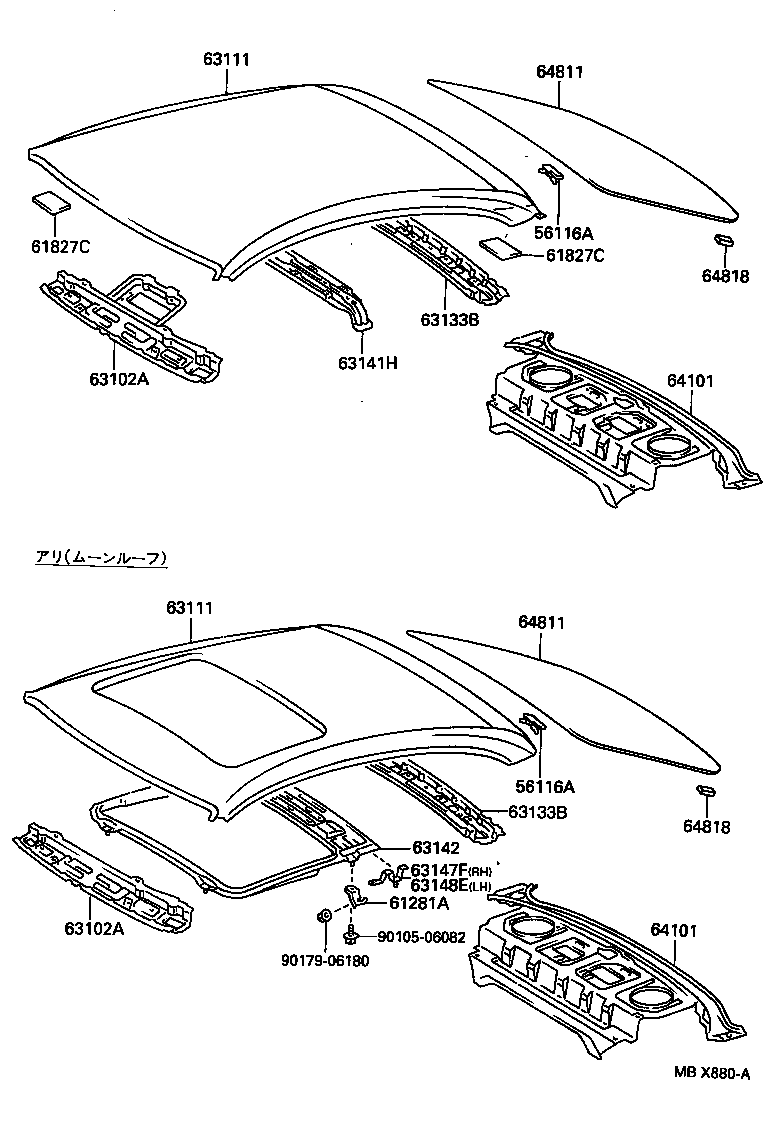

ILLUST NO. 1 OF 2(9309- )

Click highlighted areas on diagram

diagram 56116A 56116A 61281A 61827C 61827C 63102A 63102A 63111 63111 63133B 63133B 63141H 63142 63147F 63148E 64101 64101 64811 64811 64818 64818 9010506082 9017906180
Part # Description Qty Price
56116A - SPACER, WINDSHIELD GLASS
56115-20080

ST20#

 2
56116A - SPACER, WINDSHIELD GLASS
56115-20080

ST20#

 2
61827C - PLATE, NOISE CONTROL, NO.4
61838-20060

ST20#

 4
61827C - PLATE, NOISE CONTROL, NO.4
61838-20060

ST20#

 4
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-20300

ST20#

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-20300

ST20#

 1
63111 - PANEL, ROOF
63111-20570

ST20#

 1
63111 - PANEL, ROOF
63111-20570

ST20#

 1
63133B - FRAME, BACK WINDOW
63133-20240

ST20#

 1
63133B - FRAME, BACK WINDOW
63133-20240

ST20#

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-20200

ST20#

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-20830

ST20#

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-20830

ST20#

 1
64811 - GLASS, BACK WINDOW
64811-2D904

ST20#

*EHTT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
64811-2B890

ST20#

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
64811-2D902

ST20#

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
64811-2D080

ST20#

*EHTT,厚さ=3.5,ﾌﾞﾙｰ

 1
64811-2D010

ST200..TR

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,TR ﾘﾐﾃﾂﾄﾞ

 1
64811-2D090

ST200..TR

*EHTT,厚さ=3.5,ﾌﾞﾙｰ,TR ﾘﾐﾃﾂﾄﾞ

 1
64811 - GLASS, BACK WINDOW
64811-2D904

ST20#

*EHTT,厚さ=3.5,ﾌﾞﾙｰ,ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
64811-2B890

ST20#

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
64811-2D902

ST20#

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾘﾔﾜｲﾊﾟ)

 1
64811-2D080

ST20#

*EHTT,厚さ=3.5,ﾌﾞﾙｰ

 1
64811-2D010

ST200..TR

*EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,TR ﾘﾐﾃﾂﾄﾞ

 1
64811-2D090

ST200..TR

*EHTT,厚さ=3.5,ﾌﾞﾙｰ,TR ﾘﾐﾃﾂﾄﾞ

 1
64818 - SPACER, BACK WINDOW GLASS
67272-20010

ST20#

 7
64818 - SPACER, BACK WINDOW GLASS
67272-20010

ST20#

 7
Common parts
90105-06082
90179-06180

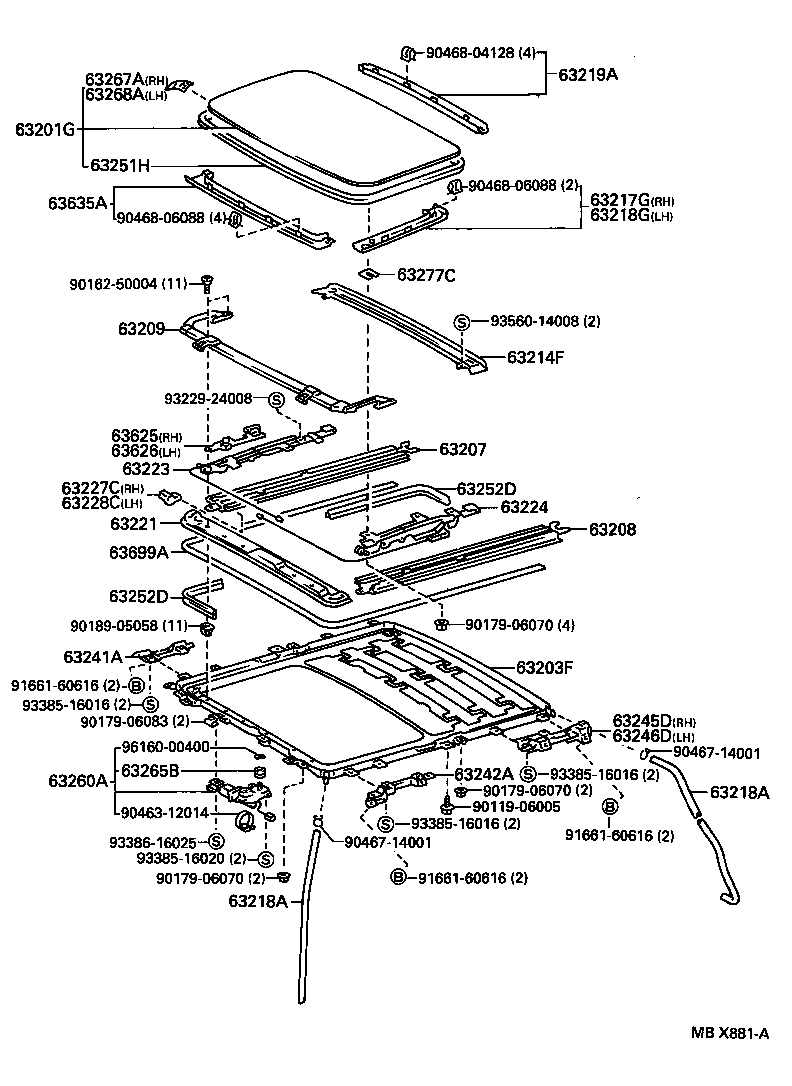

ILLUST NO. 2 OF 2(9309- )

Click highlighted areas on diagram

diagram 63201G 63203F 63207 63208 63209 63214F 63217G 63218A 63218A 63218G 63219A 63221 63223 63224 63227C 63228C 63241A 63242A 63245D 63246D 63251H 63252D 63252D 63260A 63265B 63267A 63268A 63277C 63625 63626 63635A 63699A 9011906005 9016250004 9017906070 9017906070 9017906070 9017906083 9018905058 9046312014 9046714001 9046714001 9046804128 9046806088 9046806088 9166160616 9166160616 9166160616 9322924008 9338516016 9338516016 9338516016 9338516020 9338616025 9356014008 9616000400
Part # Description Qty Price
Common parts
90119-06005
90162-50004
90179-06070
90179-06083
90189-05058
90463-12014
90467-14001
90468-04128
90468-06088
91661-60616
93229-24008
93385-16016
93385-16020
93386-16025
93560-14008
96160-00400
