ST200-ATPEK (1995)
Toyota Corona Exiv
Production
Aug 1995
-
Apr 1998
Engine
4SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )ATM..180E,180G,200E,200G

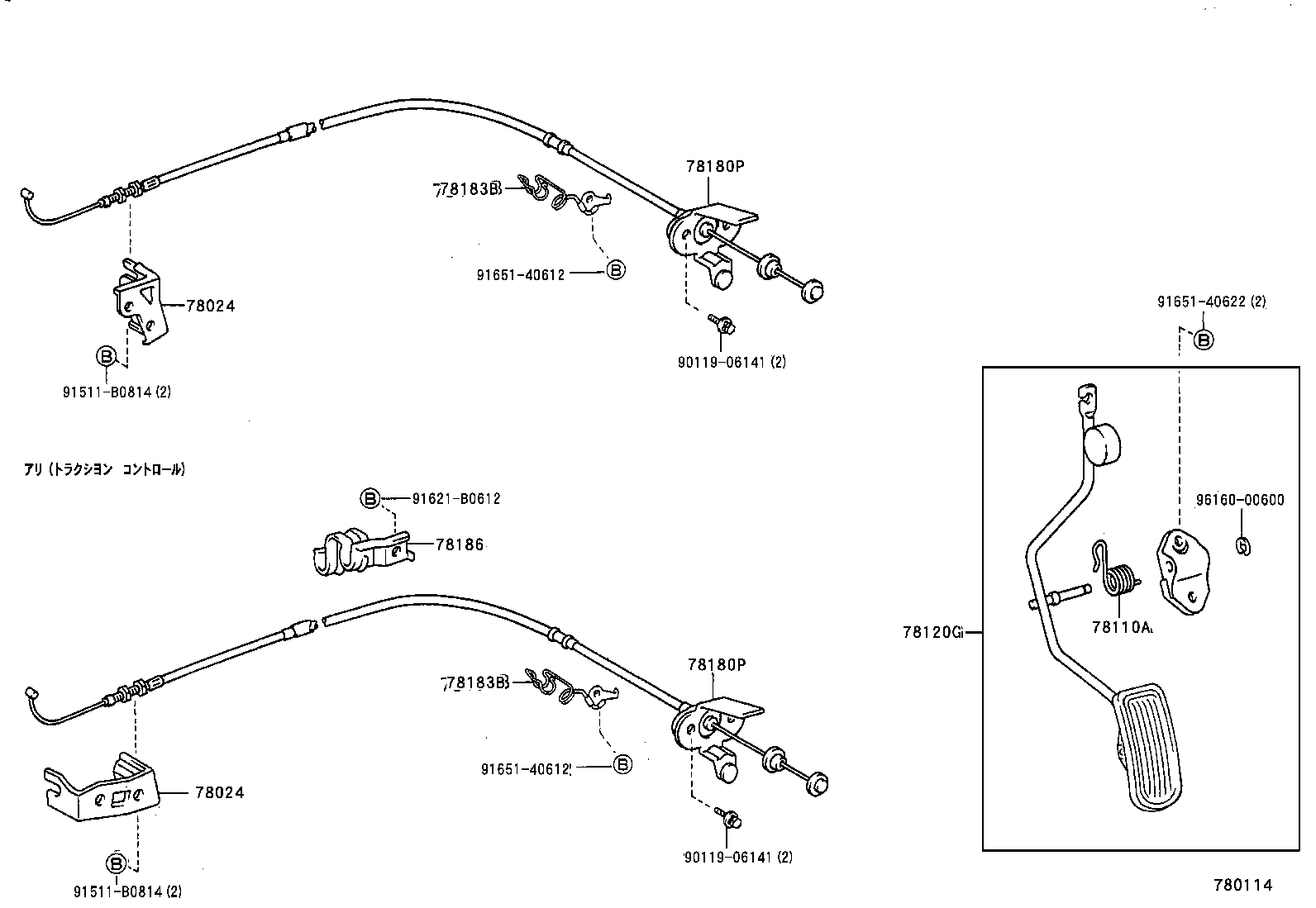

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-20090 |
ST200,201,202,203..180E,180G,200E,200G,TR,TRR,TRX |
1 | ||
| 78024-44020 |
ST200,202,203..180E,180G,200E,200G |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-20090 |
ST200,201,202,203..180E,180G,200E,200G,TR,TRR,TRX |
1 | ||
| 78024-44020 |
ST200,202,203..180E,180G,200E,200G |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18048 |
ST20#..ATM |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20600 |
ST20#..ATM |
1 | ||
| 78120-20640 |
ST20#..ATM |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2D400 |
ST200,202,203..180E,180G,200E,200G |
1 | ||
| 78180-2D640 |
ST200,202,203..180E,180G,200E,200G |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2D400 |
ST200,202,203..180E,180G,200E,200G |
1 | ||
| 78180-2D640 |
ST200,202,203..180E,180G,200E,200G |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20310 |
ST20# |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20310 |
ST20# |
1 | ||
| Common parts | ||||
| 90119-06141 | ||||
| 91511-B0814 | ||||
| 91621-B0612 | ||||
| 91651-40612 | ||||
| 91651-40622 | ||||
| 96160-00600 | ||||
