ST200-ATPEK (1995)
Toyota Corona Exiv

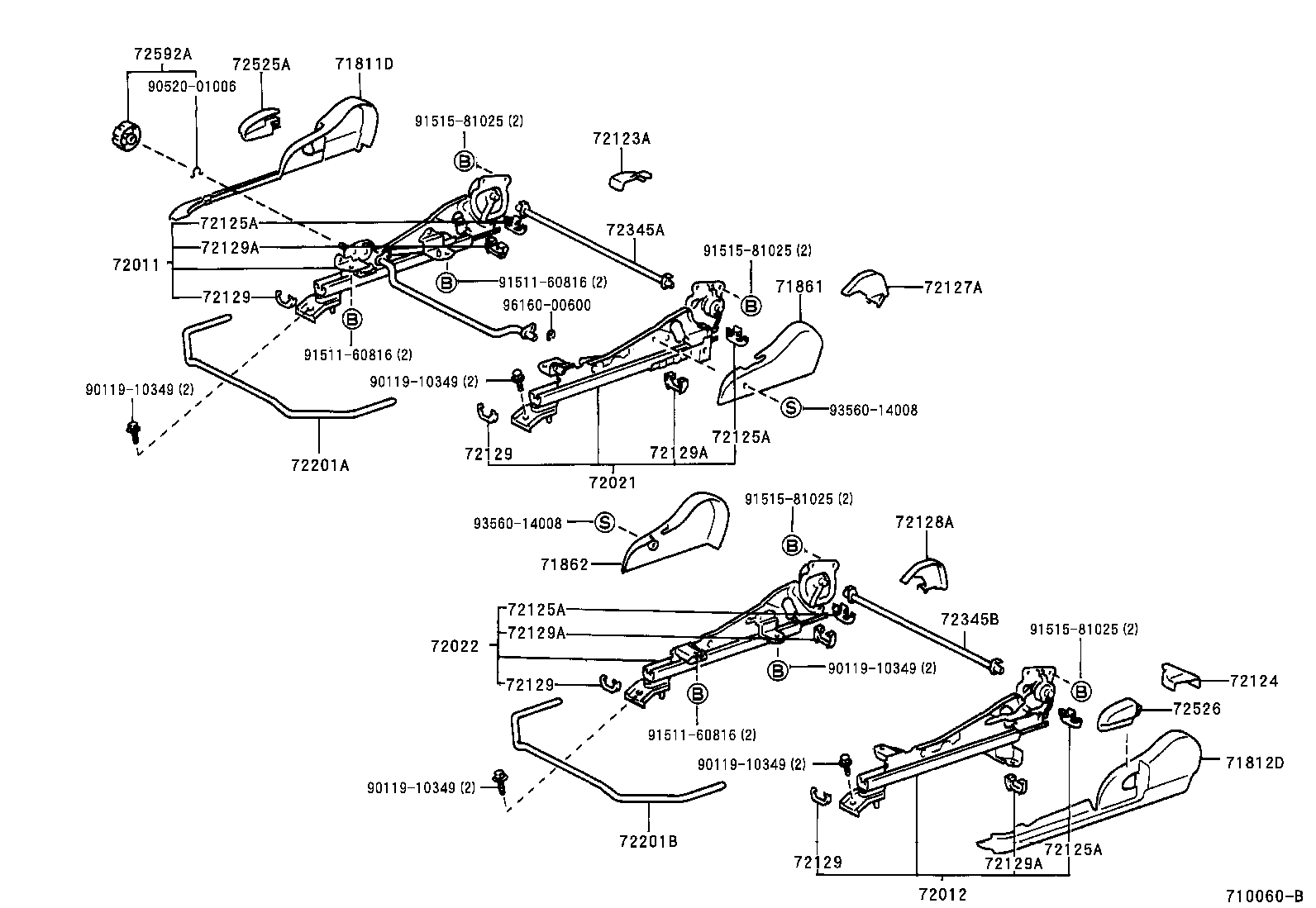

ILLUST NO. 2 OF 2(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20290B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16230B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20260B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-16190B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20130B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-20120B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20120B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 71862-20130B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20210 |
ST20# |
1 | ||
| 72011-20240 |
ST20# |
1 | ||
| 72011-20241 |
ST20# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20270 |
ST20# |
1 | ||
| 72012-20301 |
ST20# |
1 | ||
| 72012-20300 |
ST20# |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20210 |
ST20# |
1 | ||
| 72021-20211 |
ST20# |
1 | ||
| 72021-20180 |
ST20# |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20240 |
ST20# |
1 | ||
| 72022-20270 |
ST20# |
1 | ||
| 72022-20271 |
ST20# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20150 |
ST20# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-20070 |
ST20# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
ST20# |
2 | ||
| 72125-10010 |
ST20# |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
ST20# |
2 | ||
| 72125-10010 |
ST20# |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
ST20# |
2 | ||
| 72125-10010 |
ST20# |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-20020 |
ST20# |
2 | ||
| 72125-10010 |
ST20# |
2 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72158-20030 |
ST20# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20020 |
ST20# |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20020 |
ST20# |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20020 |
ST20# |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20020 |
ST20# |
2 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20030 |
ST200,202,205 内側 |
1 | ||
| 72129-20040 |
ST20# 外側 |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20030 |
ST200,202,205 内側 |
1 | ||
| 72129-20040 |
ST20# 外側 |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20030 |
ST200,202,205 内側 |
1 | ||
| 72129-20040 |
ST20# 外側 |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20030 |
ST200,202,205 内側 |
1 | ||
| 72129-20040 |
ST20# 外側 |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-20100 |
ST20# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-20100 |
ST20# |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-20040 |
ST20# |
1 | ||
| 72345B - PIPE, RECLINING CONNECTING | ||||
| 72345-20040 |
ST20# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-20070B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-20110B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010B0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-20040P0 |
ST20# SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90520-01006 | ||||
| 90520-01274 | ||||
| 91511-60816 | ||||
| 91515-81025 | ||||
| 93560-14008 | ||||
| 96160-00600 | ||||
