ST200-ATPEK (1995)

Toyota Corona Exiv

Production Aug 1995 - Apr 1998
Engine 4SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

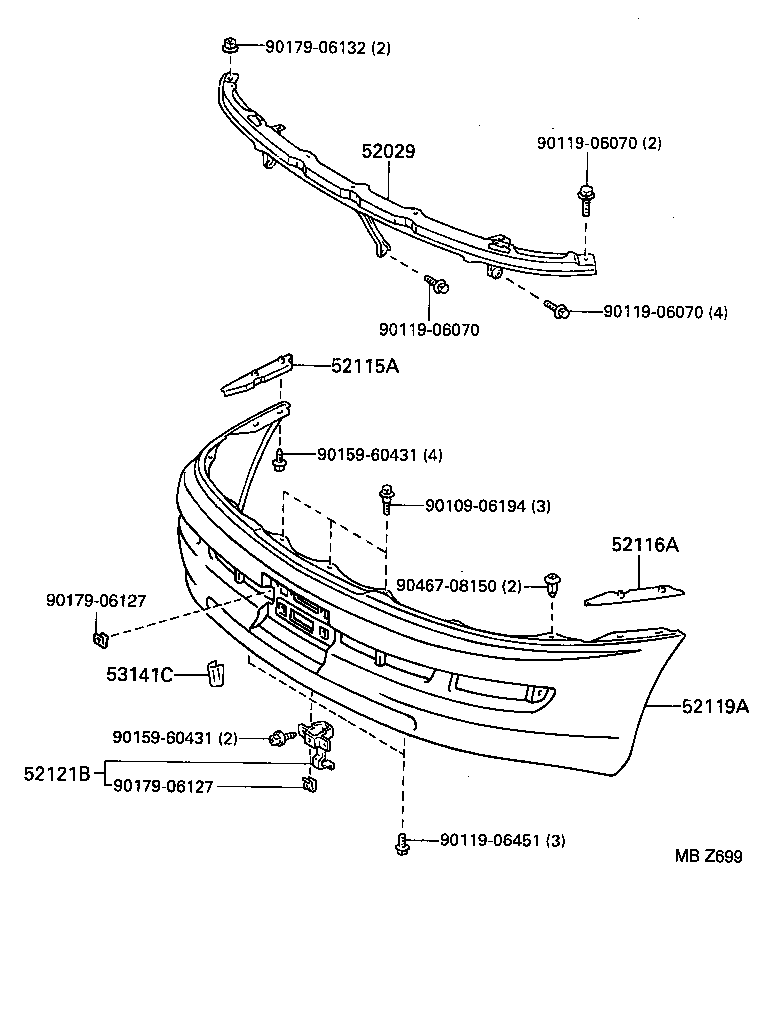

Click highlighted areas on diagram

diagram 52029 52115A 52116A 52119A 52121B 53141C 9010906194 9011906070 9011906070 9011906070 9011906451 9015960431 9015960431 9017906127 9017906127 9017906132 9046708150
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-20070

ST20#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20350

ST20#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-20250

ST20#

 1
52119A - COVER, FRONT BUMPER
52119-2B230A1

ST20#

WARM GRAY PEARL MICA,046

 1
52119-2B230B0

ST20#

LT. GREIGE ME.,1A2

 1
52119-2B230G0

ST20#

DK. GREEN MICA,6M1

 1
52119-2B230A0

ST20#

SUPER WHITE 2,040

 1
52119-2B300G0

ST20#

DK GREEN MICA,6M1

 1
52119-2B300C0

ST20#

BLACK,202

 1
52119-2B300D0

ST20#

RED MM,3K4

 1
52119-2B230D0

ST20#

RED MICA,3K4

 1
52119-2B230C0

ST20#

BLACK,202

 1
52119-2B300A0

ST20#

WHITE PM,049

 1
52119-2B300B0

ST20#

SILVER ME,199

 1
52119-2B300J0

ST20#

DK.BLUE M.M.,8L2

 1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
52121-20130

ST20#

 2
53141C - GARNISH, RADIATOR GRILLE
53141-20090

ST20#

 2
53141-20120

ST20#

 1
Common parts
90109-06194
90119-06070
90119-06451
90159-60431
90179-06127
90179-06132
90467-08150
