ST200-ATMGK (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9309- )

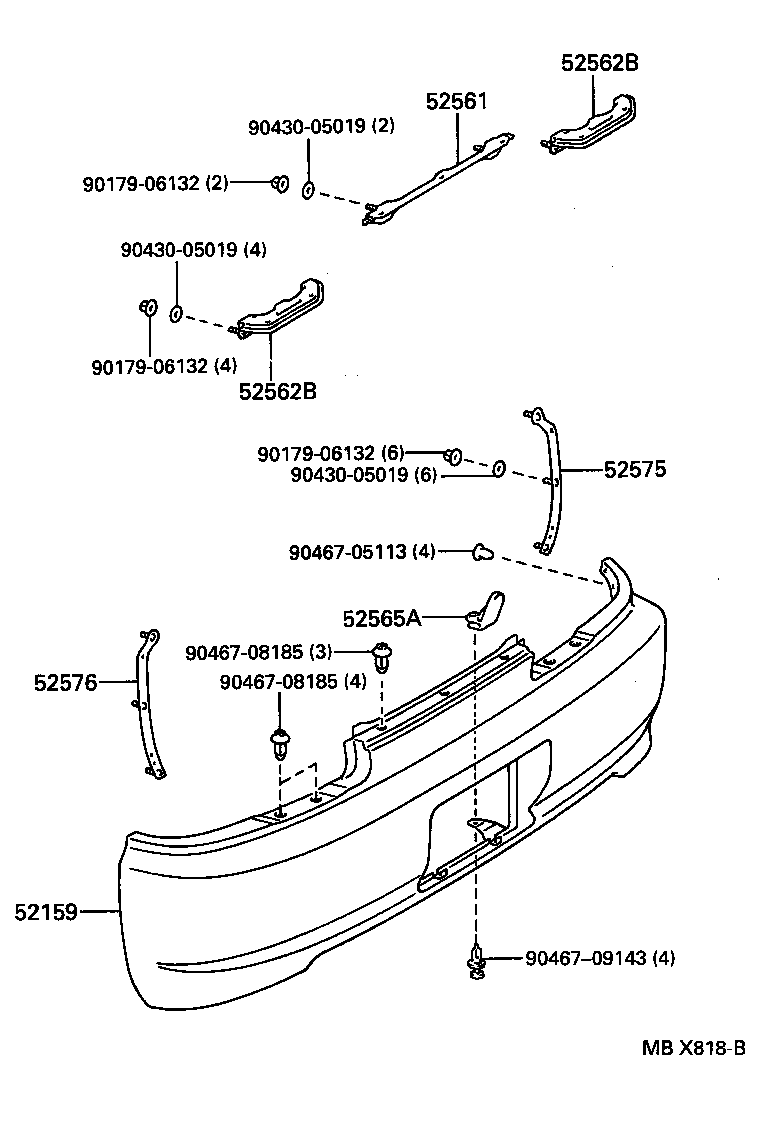

Click highlighted areas on diagram

diagram 52159 52561 52562B 52562B 52565A 52575 52576 9017906132 9017906132 9017906132 9043005019 9043005019 9043005019 9046705113 9046708185 9046708185 9046709143
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-20790A0

ST20#

SUPER WHITE 2,040

 1
52159-20790B0

ST20#

LT. GREIGE ME.,1A2

 1
52159-20790C0

ST20#

BLACK,202

 1
52159-20790A1

ST20#

WARM GRAY PEARL MICA,046

 1
52159-20790B1

ST200,202..TRX

TR-X ﾘﾐﾃﾂﾄﾞ,BLUISH SILVER ME.,1A0

 1
52159-20790D0

ST20#

RED MICA,3K4

 1
52159-20790G0

ST20#

DK. GREEN MICA,6M1

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-20240

ST20#

 1
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-20070

ST20#

 2
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-20070

ST20#

 2
52565A - RETAINER, REAR BUMPER, LOWER
52565-20180

ST20#

 2
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-20060

ST20#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-20060

ST20#

 1
Common parts
90179-06132
90430-05019
90467-05113
90467-08185
90467-09143
