ST200-ATMEK (1993)

Toyota Corona Exiv

Production Sep 1993 - Aug 1995
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

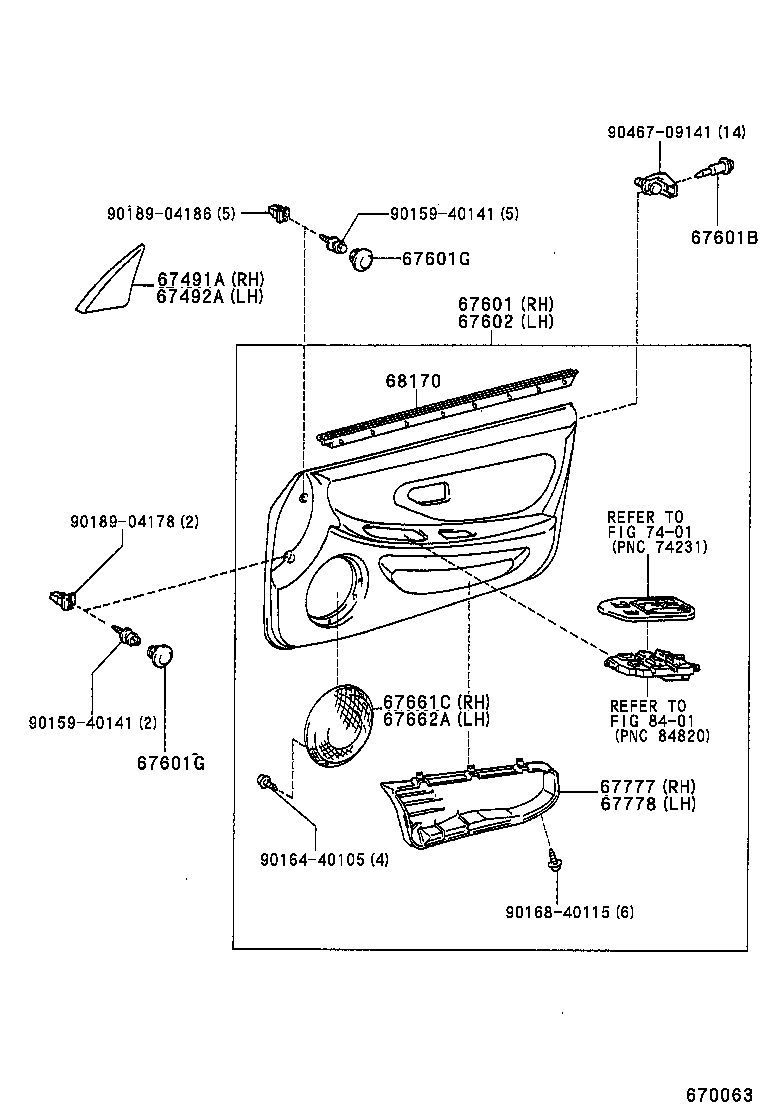

ILLUST NO. 1 OF 2(9309- )

Click highlighted areas on diagram

diagram 67491A 67492A 67601 67601B 67601G 67601G 67602 67661C 67662A 67777 67778 68170 7401 8401 9015940141 9015940141 9016440105 9016840115 9018904178 9018904186 9046709141
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-20340

ST200,201,205;ST202,203..200E,200G,200GT,TRG,TRR

 1
67491-20350

ST200..TR

TR ﾘﾐﾃﾂﾄﾞ

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-20350

ST200..TR

TR ﾘﾐﾃﾂﾄﾞ

 1
67492-20340

ST200,201,205;ST202,203..200E,200G,200GT,TRG,TRR

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2G040B0

ST200..TR

TR ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1#

 1
67610-2G300B0

ST200..TR

SHADOW GRAY,TRIM1#

 1
67610-2G301B0

ST200..TR

SHADOW GRAY,TRIM1#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07066P0

ST20#

SHADOW GRAY,TRIM1#

 4
90467-0706622

ST20#

BLACK,TRIM1#

 4
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-01800B0

ST20#

SHADOW GRAY,TRIM1#

 4
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-01800B0

ST20#

SHADOW GRAY,TRIM1#

 4
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-2L260B0

ST200..TR

SHADOW GRAY,TRIM1#

 1
67620-2H570B0

ST200..TR

SHADOW GRAY,TRIM1#

 1
67620-2L740B0

ST200..TR

TR ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1#

 1
67661C - BASE, DOOR SPEAKER GRILLE, RH
67661-20050B0

ST20#

SHADOW GRAY,TRIM1#

 1
67662A - BASE, DOOR SPEAKER GRILLE, LH
67661-20050B0

ST20#

SHADOW GRAY,TRIM1#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-20240B0

ST20#

SHADOW GRAY,TRIM1#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67778-20240B0

ST20#

SHADOW GRAY,TRIM1#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-20310

ST20#

左側

 1
68170-20410

ST20#

右側

 1
Common parts
90159-40141
90164-40105
90168-40115
90189-04178
90189-04186
90467-09141
Linked diagrams
7401
8401

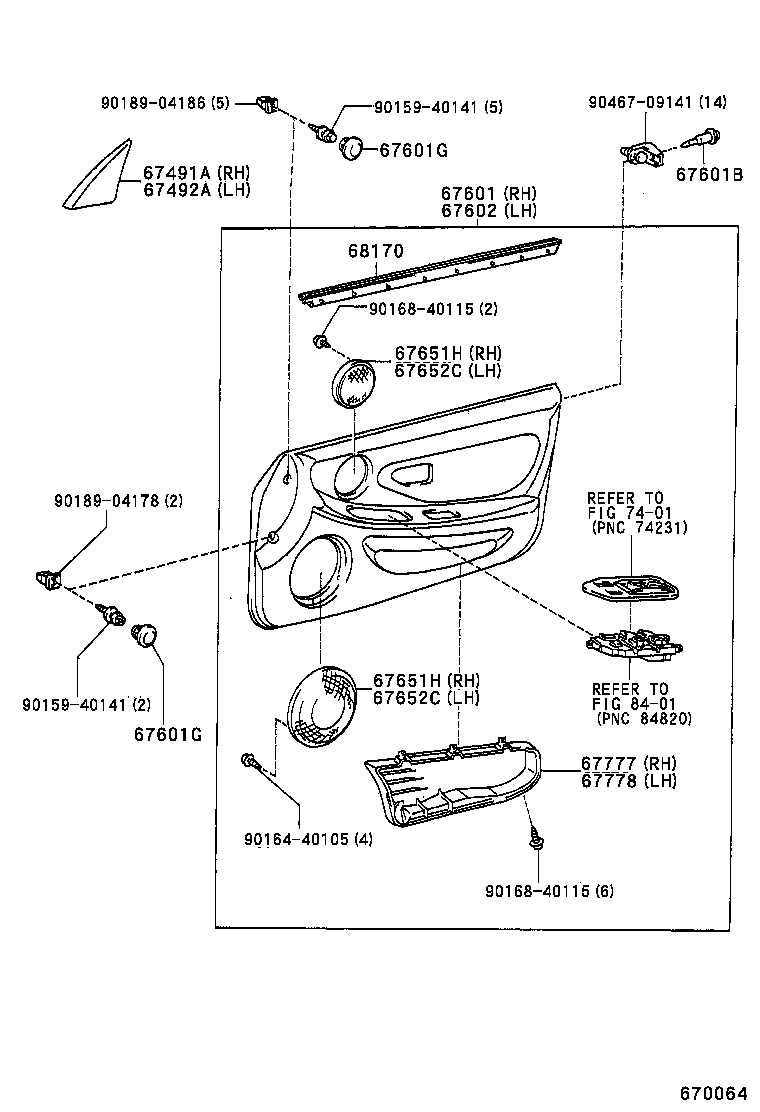

ILLUST NO. 1 OF 2(9309- )

Click highlighted areas on diagram

ｱﾘ(ｽ-ﾊﾟ- ﾗｲﾌﾞ ｻｳﾝﾄﾞ ｼｽﾃﾑ)

diagram 67491A 67492A 67601 67601B 67601G 67601G 67602 67651H 67651H 67652C 67652C 67777 67778 68170 7401 8401 9015940141 9015940141 9016440105 9016840115 9016840115 9018904178 9018904186 9046709141
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-20340

ST200,201,205;ST202,203..200E,200G,200GT,TRG,TRR

 1
67491-20350

ST200..TR

TR ﾘﾐﾃﾂﾄﾞ

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-20350

ST200..TR

TR ﾘﾐﾃﾂﾄﾞ

 1
67492-20340

ST200,201,205;ST202,203..200E,200G,200GT,TRG,TRR

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2G040B0

ST200..TR

TR ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1#

 1
67610-2G300B0

ST200..TR

SHADOW GRAY,TRIM1#

 1
67610-2G301B0

ST200..TR

SHADOW GRAY,TRIM1#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07066P0

ST20#

SHADOW GRAY,TRIM1#

 4
90467-0706622

ST20#

BLACK,TRIM1#

 4
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-01800B0

ST20#

SHADOW GRAY,TRIM1#

 4
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-01800B0

ST20#

SHADOW GRAY,TRIM1#

 4
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-2L260B0

ST200..TR

SHADOW GRAY,TRIM1#

 1
67620-2H570B0

ST200..TR

SHADOW GRAY,TRIM1#

 1
67620-2L740B0

ST200..TR

TR ﾘﾐﾃﾂﾄﾞ,SHADOW GRAY,TRIM1#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-20240B0

ST20#

SHADOW GRAY,TRIM1#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67778-20240B0

ST20#

SHADOW GRAY,TRIM1#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220-20310

ST20#

左側

 1
68170-20410

ST20#

右側

 1
Common parts
90159-40141
90164-40105
90168-40115
90189-04178
90189-04186
90467-09141
Linked diagrams
7401
8401

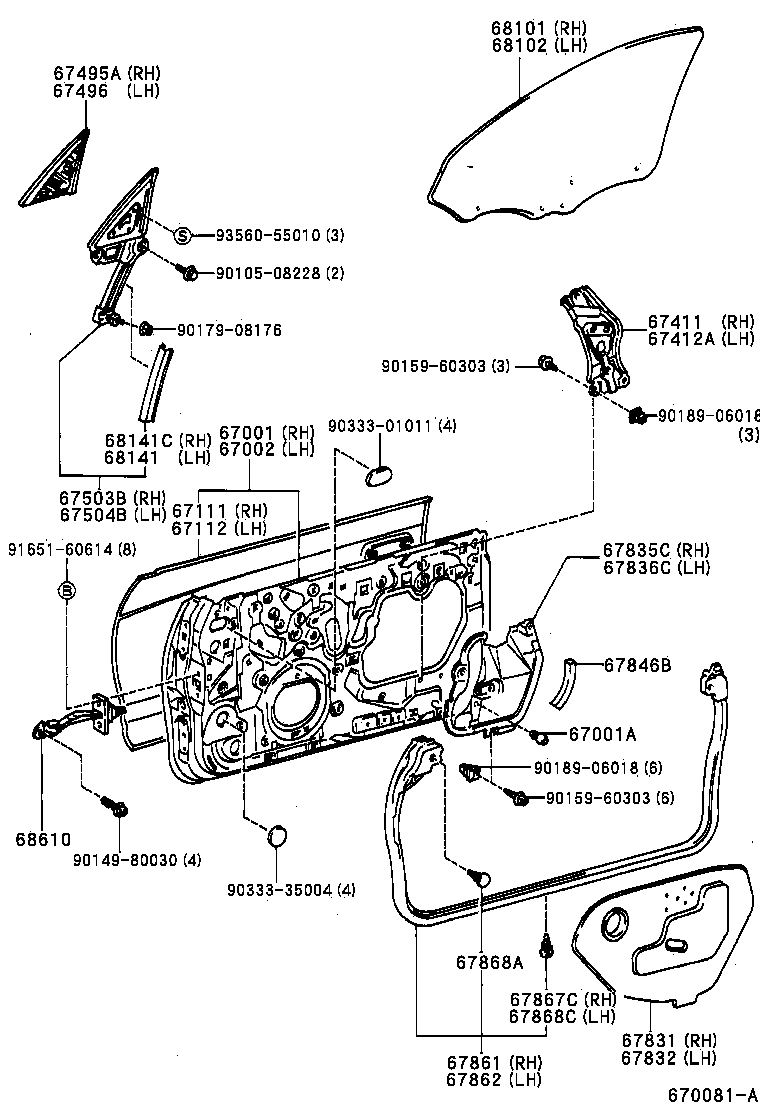

ILLUST NO. 2 OF 2(9309- )

Click highlighted areas on diagram

diagram 67001 67001A 67002 67111 67112 67411 67412A 67495A 67496 67503B 67504B 67831 67832 67835C 67836C 67846B 67861 67862 67867C 67868A 67868C 68101 68102 68141 68141C 68610 9010508228 9014980030 9014980033 9015960303 9015960303 9017908176 9018906018 9018906018 9033301011 9033335004 9165160614 9356055010
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-2B080

ST20#

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09069

ST20#

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-2B070

ST20#

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-20370

ST20#

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-20390

ST20#

 1
67411 - FRAME, FRONT DOOR WINDOW, FRONT UPPER RH
67411-20160

ST20#

 1
67412A - FRAME, FRONT DOOR WINDOW, FRONT UPPER LH
67412-20160

ST20#

 1
67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-20141

ST20#

 1
67495-20140

ST20#

 1
67496 - CHANNEL, CANVAS DOOR WEATHERSTRIP UNDER HOLD
67496-20111

ST20#

 1
67496-20110

ST20#

 1
67503B - BRACKET SUB-ASSY, FRONT DOOR MIRROR, RH
67503-20020

ST20#

 1
67504B - BRACKET SUB-ASSY, FRONT DOOR MIRROR, LH
67504-20070

ST20#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-20450

ST20#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-20450

ST20#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-20380

ST20#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-20380

ST20#

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-20130

ST20#

 18
67867-12150

ST20#

 18
67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)
67869-20030

ST20#

 8
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-20130

ST20#

 18
67867-12150

ST20#

 18
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-20710

ST20#

*TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ

 1
68111-20720

ST20#

*TT,厚さ=5.0,ﾌﾞﾙｰ

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-20630

ST20#

*TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ

 1
68112-20640

ST20#

*TT,厚さ=5.0,ﾌﾞﾙｰ

 1
68141 - RUN, FRONT DOOR GLASS
68141-20270

ST20#

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-20270

ST20#

 1
68610 - CHECK ASSY, FRONT DOOR
68610-20170

ST20#

右側

 1
68620-20050

ST20#

左側

 1
Common parts
90105-08228
90149-80030
90149-80033
90159-60303
90179-08176
90189-06018
90333-01011
90333-35004
91651-60614
93560-55010
